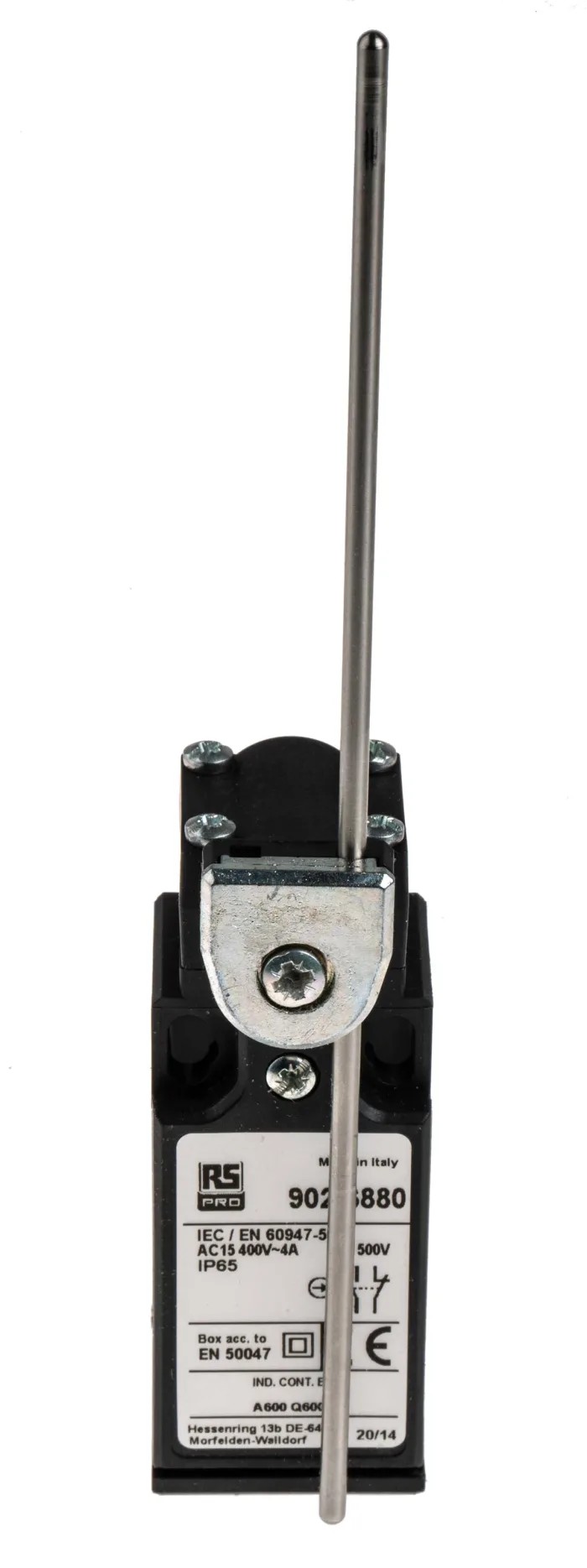

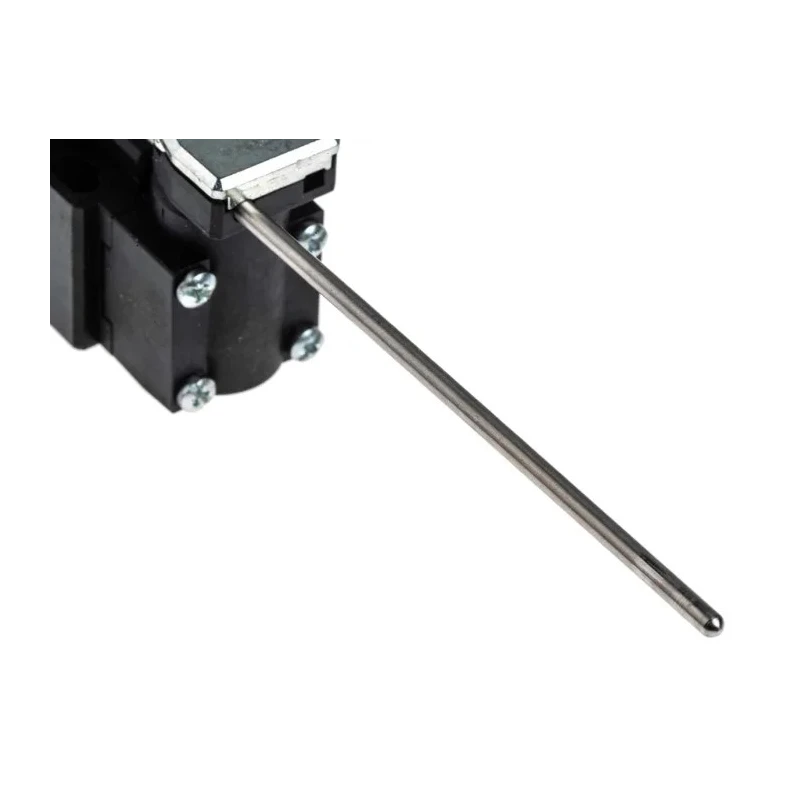

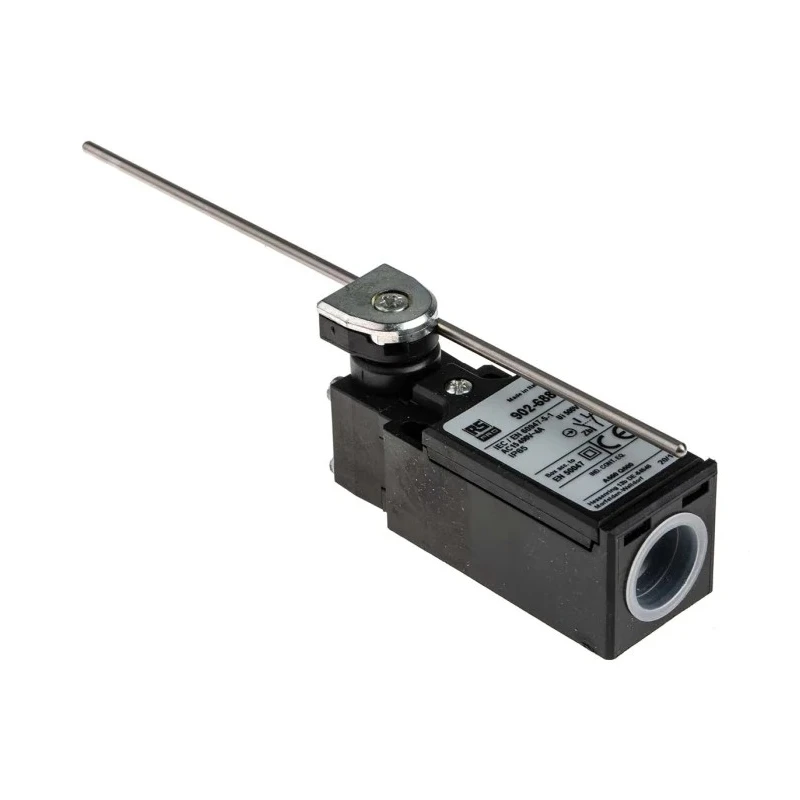

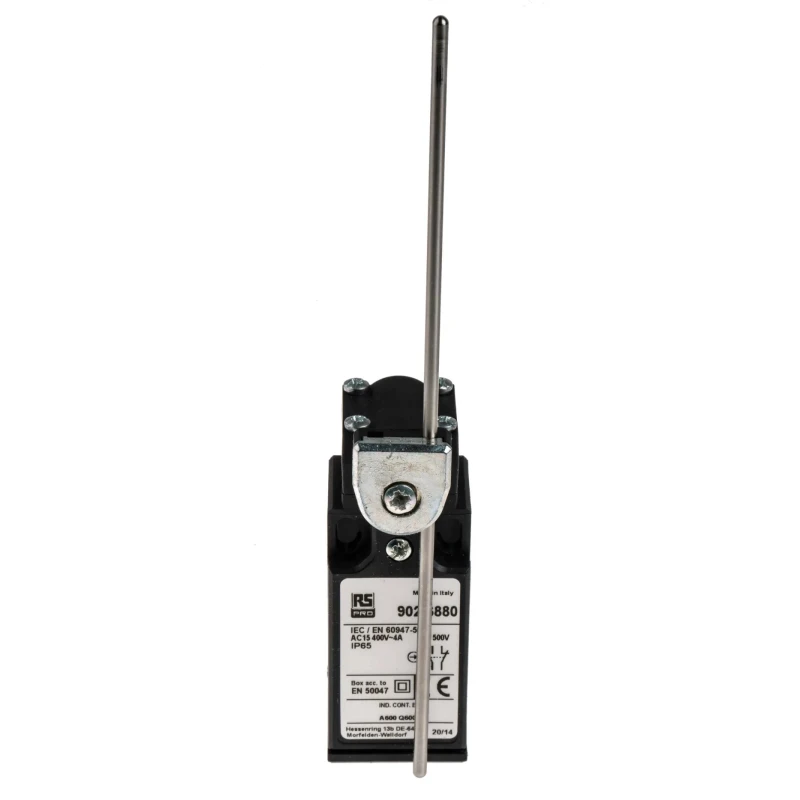

RS PRO Rod Limit Switch 1 NO/1 NC Fibreglass Reinforced Thermoplastic Housing IP65 400V AC 10A IP65

RS PRO IP65 Rod Limit Switch 1 NO/1 NC utilizes fibreglass reinforced thermoplastic housing material, which provides strong insulation and flame-retardant properties, ensuring long-term durability in industrial settings. The device comes with a rod-type actuator featuring snap action contacts, enabling accurate and repeatable contact closures for reliable controlling of mechanical machinery.

This limit switch is designed to operate at AC voltage up to 400V with a current rating of 10A, facilitating its use in a broad range of industrial and automation applications. It features one normally open and one normally closed contact configuration, ideal for flexible control wiring schemes.

The product is IP65 rated, which guarantees dust-tight protection and resistance to water jets, making it suitable for use in harsh environments, including manufacturing plants and outdoor installations. It operates within a temperature range of -25°C to +70°C, making it versatile for temperature variations.

With a substantial mechanical life of up to 15 million operations, this limit switch assures longevity and dependable service. Installation is simplified by the vertical mounting orientation and standard M20 x 1.5 conduit entry, facilitating compatibility with existing systems.

The compact dimensions of 30.3 mm length, 230.5 mm width, and 30 mm depth allow integration in space-constrained setups. It is typically used in controlling robotic arms, conveyors, and other automated equipment where precise end-stop or position sensing is essential.

Constructed with durable fibreglass reinforced thermoplastic housing for enhanced insulation and durability. Features a rod actuator type with snap action contact mechanism for reliable operation. Equipped with one normally open and one normally closed contact configuration for flexible control.

Rated for switching currents up to 10A and AC voltages up to 400V. IP65 protection rating for dust and water ingress resistance. Operating temperature range from -25°C to +70°C supports extreme environments. Mechanical life rated at 15 million operations ensures long-term reliability.

Vertical mounting and M20 x 1.5 conduit entry simplify installation. Compact dimensions enable use in confined spaces.

This RS PRO Rod Limit Switch is ideal for various industrial automation, manufacturing, and process control applications. Its rugged design and certification to standards including RoHS, UL, IMQ, IEC, EN, CSA provide confidence in performance and safety.
