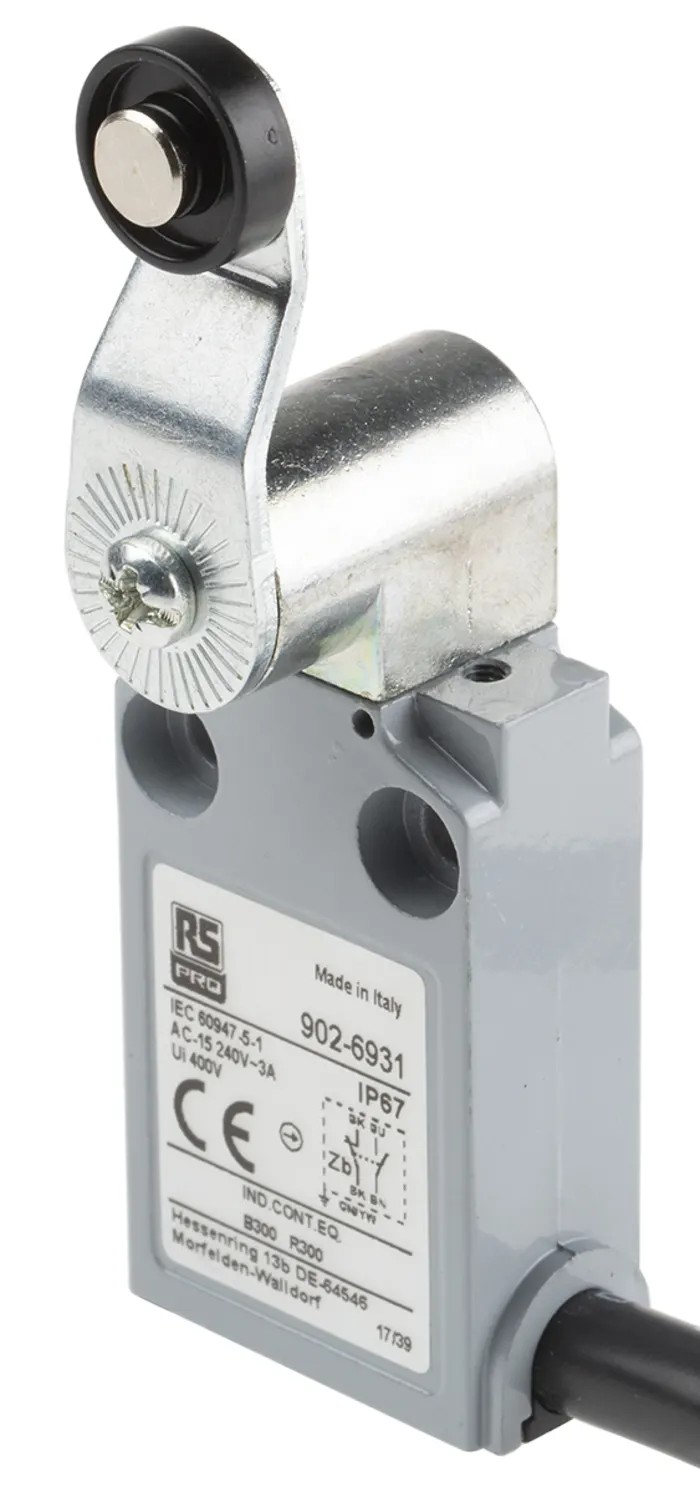

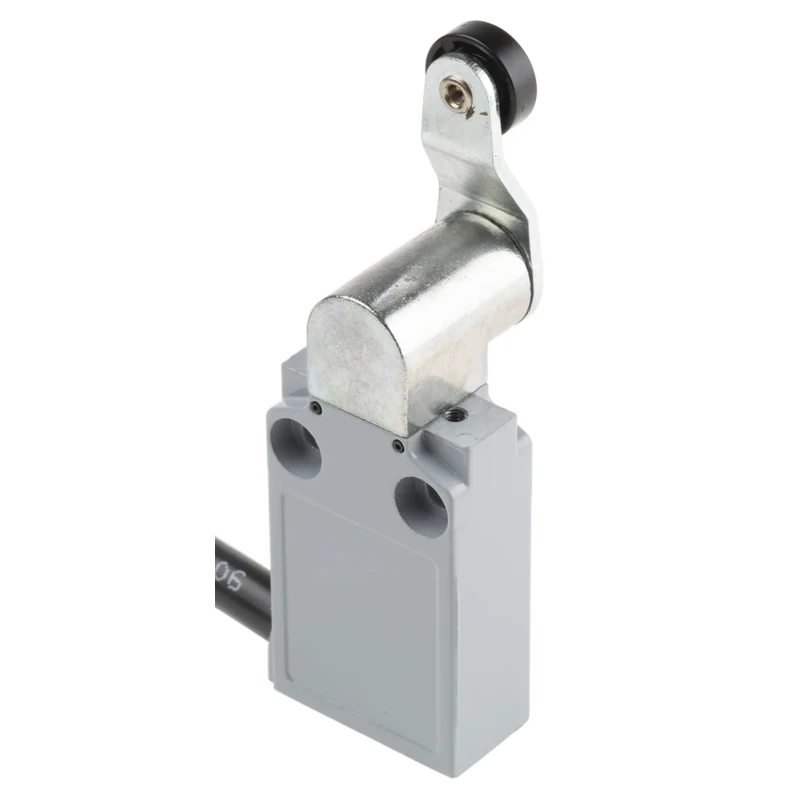

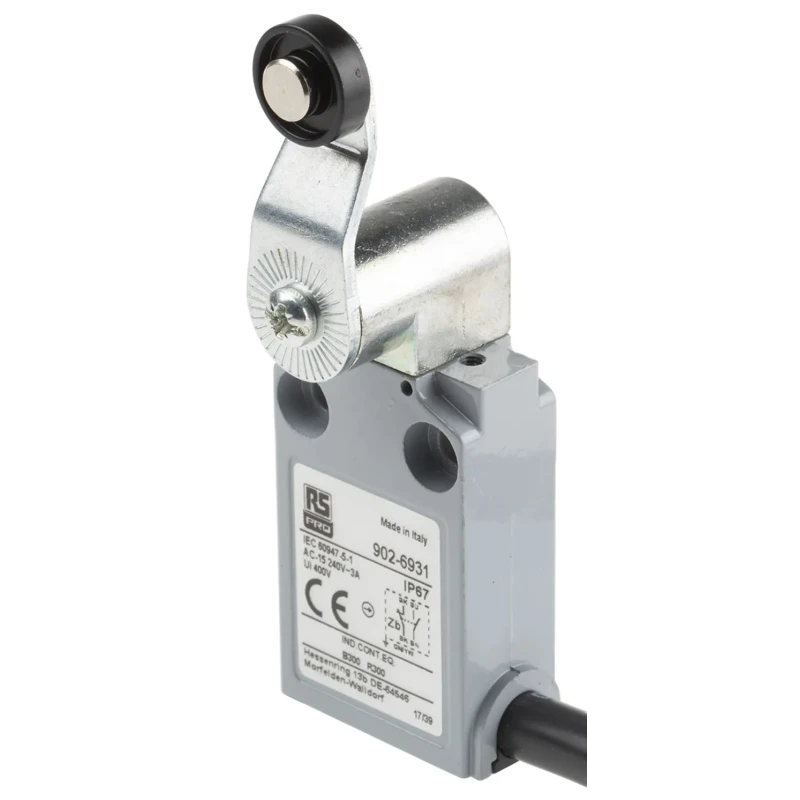

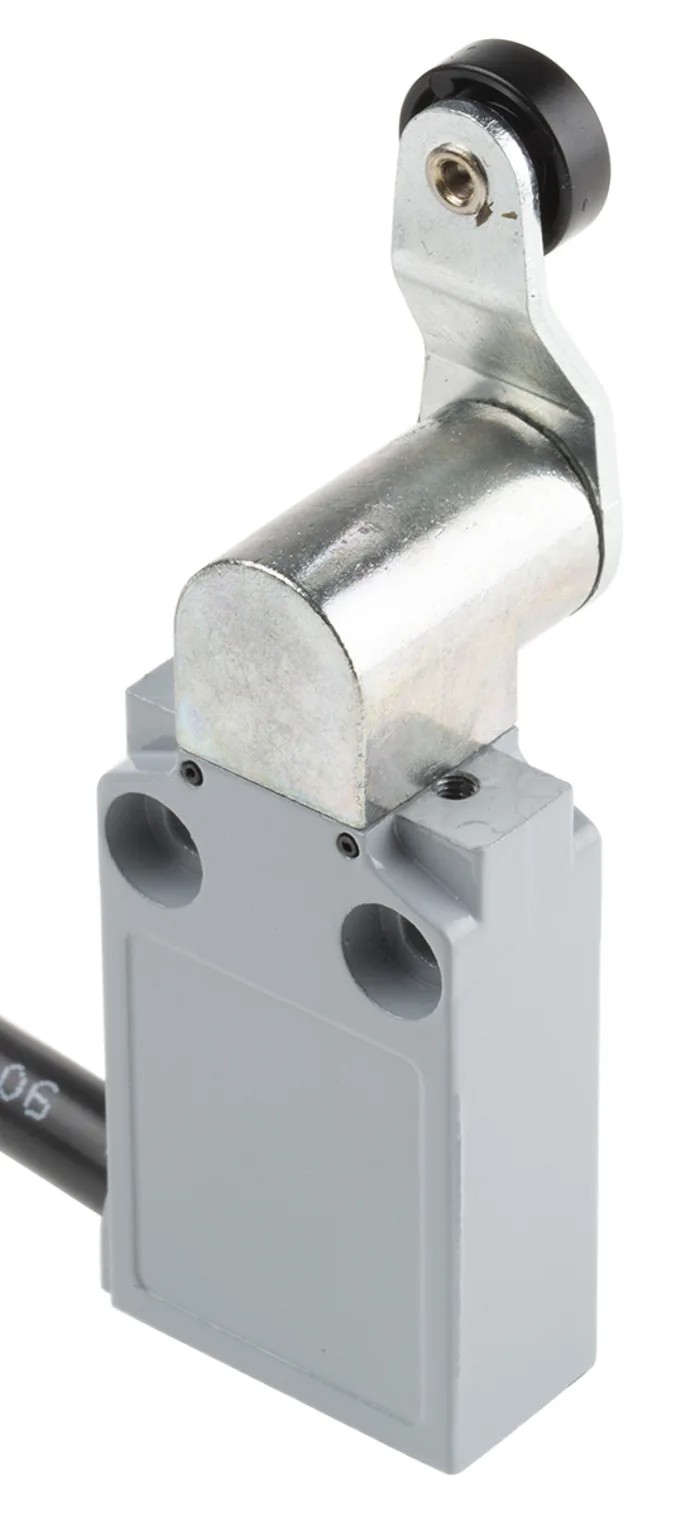

RS PRO Roller Lever Limit Switch 1 NO/1 NC, IP67, Die Cast Zinc Housing, 240V AC, 5A IP67

RS PRO IP67 Roller Lever Limit Switch 1 NO/1 NC offers industrial-grade switching with a sturdy die cast zinc alloy housing and thermoplastic components, designed for operation on 240V AC at 5A current. This limit switch incorporates a roller lever actuator to mechanically trigger snap-action contacts, providing reliable circuit control in various electrical and automation applications.

The IP67 ingress protection rating ensures the device remains fully sealed against dust penetration and is capable of resisting temporary immersion in water, making it ideal for harsh industrial environments. Operating temperatures range from -25°C to 70°C, supporting use in diverse settings with fluctuating temperatures.

With a compact form factor measuring 31.5 mm length, 92 mm width, and 16 mm depth, it supports vertical mounting and a very low operating force of 0.08 N, enabling precise actuation. The switch includes one normally open (NO) and one normally closed (NC) contact with snap action for robust electrical performance.

Certified by CSA, UL, RU, RoHS, IMQ, IEC, EN, and CE, this product adheres to strict industry standards and safety norms. Its mechanical life extends to 10 million operations, ensuring exceptional durability and reliability in manufacturing, automation, control panels, electrical systems, and other industrial sectors requiring dependable limit switch technology.

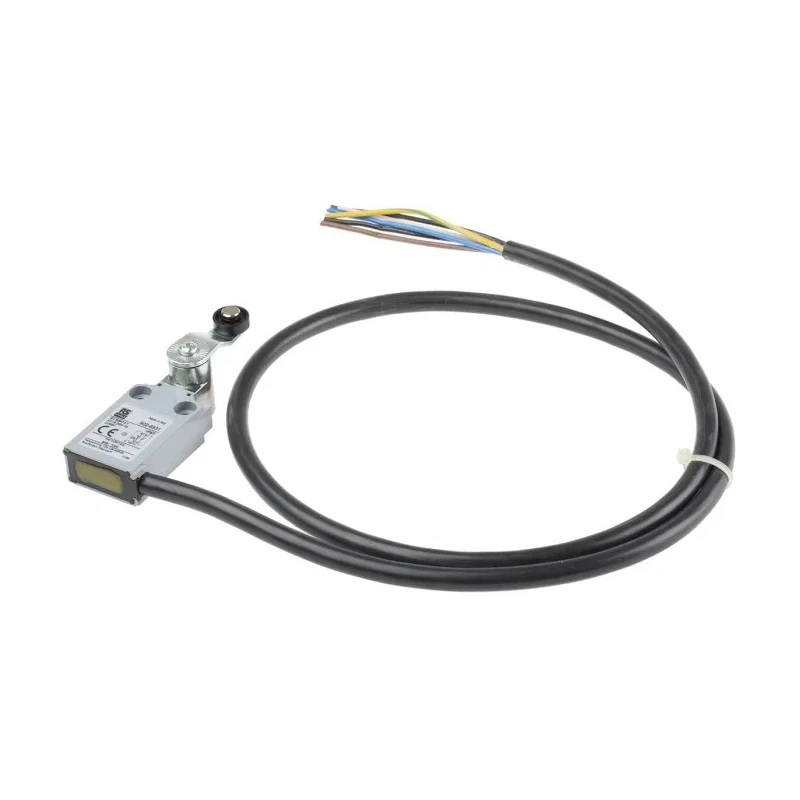

The pre-wired PVC cable connector further simplifies installation and maintenance. This product is manufactured in Italy and is a trusted choice for industries requiring precise and durable limit switch solutions.

The roller lever actuator enables reliable switching for opening and closing electrical circuits. The switch features a snap action contact type for responsive performance. IP67 rating provides full protection against dust and temporary immersion in water.

Operates across a temperature range from -25°C to +70°C for versatile applications. Mechanical life expectancy is rated at 10,000,000 operations ensuring long-term durability. Suitable for vertical mounting orientation to accommodate installation needs.

Pre-wired with a PVC cable for easy assembly and connection. Meets multiple industry standards including CSA, UL, RU, RoHS, IMQ, IEC, EN, and CE for safety and compliance. Explore the comprehensive selection of Limit Switches and related components on EnvMart for industry-leading quality and performance.
