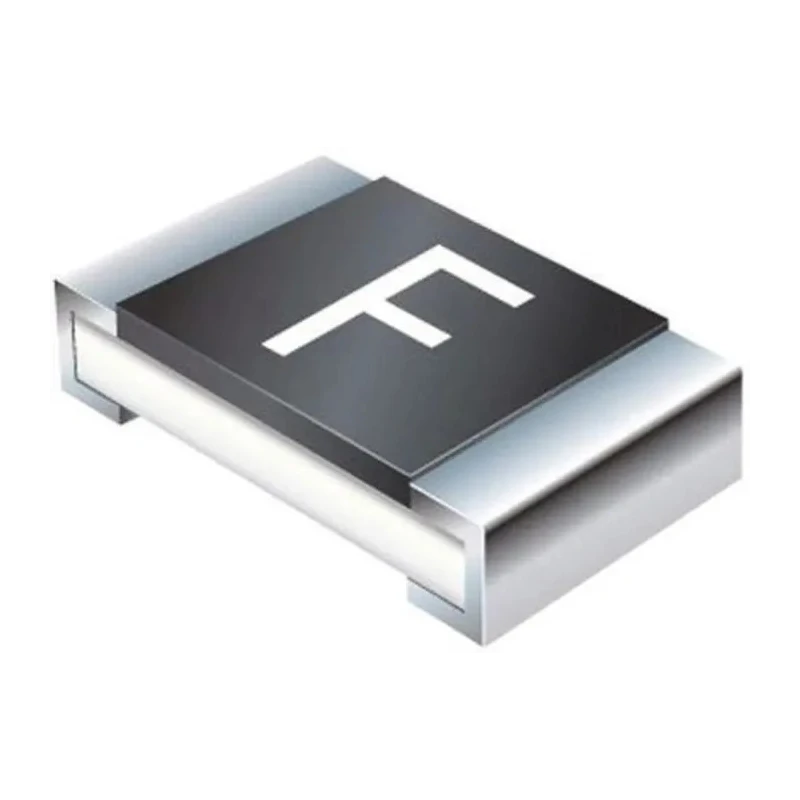

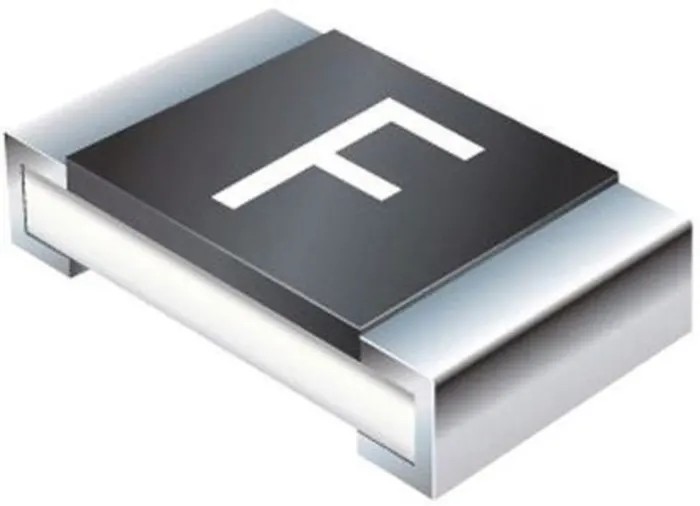

Bourns Non-Resettable Fuse 5A 32V DC Ceramic Body Time Delay SF-0603S500-2
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 32V dc |
| Brand | Bourns |
| Body Material | Ceramic |
| Height | 0.45mm |
| Model | SF-0603S500-2 |
| Depth | 1.6mm |
| Width | 0.8mm |
| Current Rating | 5A |
| Series | SF-0603S |
| Maximum Operating Temperature | -40°C |
| Resistance | 9mΩ |
| Package Type | Reel |
| Minimum Operating Temperature | 105°C |
| Package Size | 0603 |
| Breaking Capacity | 50A |
| Standards/Approvals | UL 248-14, RoHS |
| Fuse Characteristics | Time Delay |
| LittelfuseSMD Non Resettable Fuse 5A, 32VBrand | Littelfuse |
Key Features
- This fuse features a 0603 package size for surface mount technology installations.
- It provides time delay fuse characteristics ensuring protection against temporary surges.
- The fuse has a breaking capacity of 50A, suitable for various electrical circuit protection.
- Its miniature dimensions of 0.8mm width, 0.45mm height, and 1.6mm depth suit compact circuit boards.
- Operating temperature ranges from -40°C to 105°C for reliable performance under varying conditions.
- Thin film chip design offers fast acting overcurrent protection ideal for sensitive electronic devices.
- The fuse is supplied on a reel to facilitate efficient automated PCB assembly.
- It complies with UL 248-14 and RoHS standards ensuring safety and environmental compliance.
Product Description
Bourns SF-0603S500-2 non-resettable fuse is a high-quality surface mount fuse designed for effective overcurrent protection in low voltage DC circuits up to 32V and 5A current rating. Featuring a ceramic body, this fuse provides durable and robust electrical insulation suitable for industrial and commercial electronics.
The fuse utilizes a time delay characteristic to prevent nuisance blowing from transient surges, making it ideal for protecting sensitive electronic components such as alarm systems, audio/visual equipment, computer boards, and medical apparatus. Its 0603 miniature package size allows space-saving integration in densely packed circuit boards.
With a breaking capacity of 50A, the fuse safely interrupts faulty current flows ensuring circuit integrity. Its operating temperature range from -40°C to 105°C ensures dependable performance in a wide range of environmental conditions. The thin film chip design offers fast-acting protection essential for modern electronics.
The SF-0603S500-2 fuse is supplied on reels enabling efficient automated insertion processes in manufacturing environments. Compliance with UL 248-14 and RoHS directives guarantees adherence to recognised safety and environmental standards. This fuse is widely applied in industrial automation, electrical equipment, commercial electronics, and consumer devices requiring reliable surge protection.
The product is manufactured in Taiwan, Province of China, ensuring consistent quality and specification adherence. This fuse represents an essential component for engineers and technicians designing reliable, compact, and efficient DC power circuits.
This fuse features a 0603 package size for surface mount technology installations. Provides time delay characteristics to prevent nuisance blowing. Offers a breaking capacity of 50A for robust circuit protection. Compact dimensions to suit densely packed printed circuit boards.
Operating temperature range from -40°C to 105°C. Thin film chip design with fast overcurrent response. Supplied on reels to support automated assembly. Complies with UL 248-14 and RoHS standards for safety and environmental compliance.
Explore more high-quality circuit protection components and accessories in EnvMart's Electronics & Electricals section.
Explore more products in our Non Resettable Fuse category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SF-0603S500-2 fuse has a current rating of 5A.
This fuse can handle a maximum voltage of 32V DC.
The fuse has dimensions of 0.8mm width, 0.45mm height, and 1.6mm depth.
The breaking capacity of this fuse is 50A, which ensures safe interruption of faulty current flows.
It operates within a temperature range of -40°C to 105°C.
This fuse is supplied on a reel, facilitating efficient automated PCB assembly.
The body material of the SF-0603S500-2 fuse is ceramic.
It features time delay characteristics to prevent nuisance blowing from transient surges.
This fuse complies with UL 248-14 and RoHS standards for safety and environmental compliance.
It is commonly used in industrial automation, electrical equipment, commercial electronics, and consumer devices requiring reliable surge protection.
The resistance of the Bourns SF-0603S500-2 fuse is 9mΩ.
The thin film chip design offers fast-acting overcurrent protection, which is essential for sensitive electronic devices.
