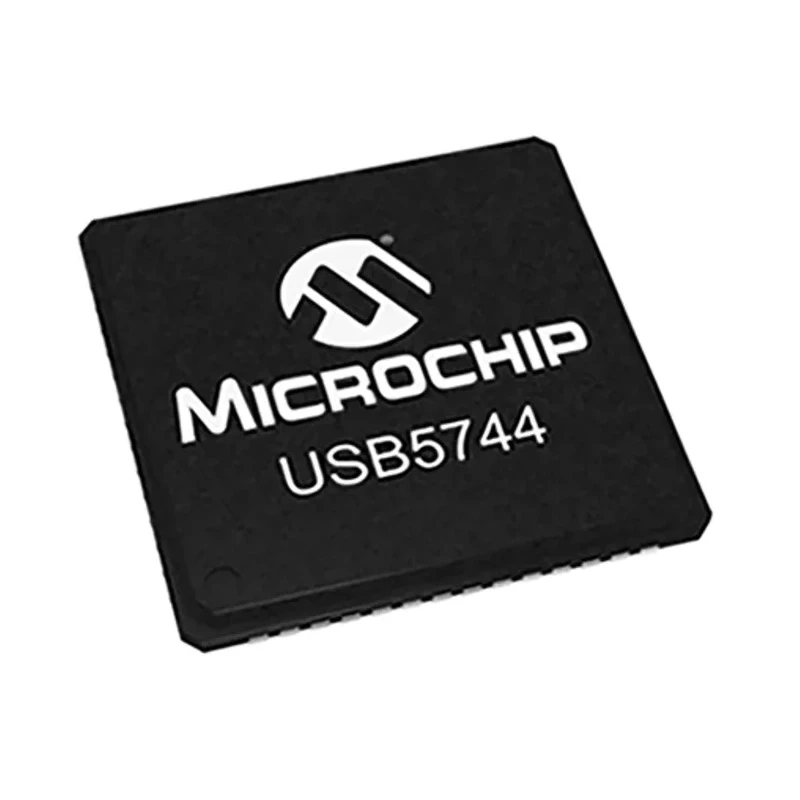

Microchip Controller IC 1-Channel 5 Gbps USB 3.1 3.6V 1.2V 56-Pin SQFN USB5744-I/2G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 7mm |
| Model | USB5744-I/2G |
| Mount Type | Surface |
| Series | USB5744 |
| Maximum Operating Temperature | 85°C |
| Package Type | SQFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 3 |
| Battery Charging | USB-IF revision 1.2 support on downstream ports (DCP, CDP, SDP) |
| Pin Count | 56 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.2V |
| Maximum Data Rate | 5Gbps |
| Number of Transceivers | 1 |
| USB Specification | USB 2.0 |
| Supported Protocols | USB 3.1 |
| Dual Supply Voltage | 3.3V |
| Port Configuration Straps | Predefined configuration of port settings - Battery Charging, Non-Removable, Disable |
Key Features
- Compliant with USB 3.0 (USB 3.1 Gen 1) supporting up to 5 Gbps SuperSpeed data rate.
- Includes four downstream USB 3.0/2.0 ports for versatile connectivity.
- Integrated Hub Feature Controller allows port and GPIO configuration through OTP.
- Supports USB-IF revision 1.2 battery charging on downstream ports for efficient power delivery.
- Built-in ESD protection enhances device reliability.
- Operates over a temperature range from -40°C to 85°C.
- Compact 56-pin SQFN package with 7mm length and 1mm height supports surface mounting.
- Compatible with Microsoft Windows 8/8.1 and other major operating systems.
Product Description
Microchip USB5744-I/2G Controller IC is a USB 3.0 compliant device (also called USB 3.1 Gen 1) designed for efficient high-speed data transfer at rates up to 5 Gbps. It integrates a single-channel USB 3.1 interface with a USB 2.0 controller to effectively manage data streams and mitigate bottlenecks created by slower USB 2.0 traffic.
This device features four downstream USB 3.0/2.0 ports, enabling flexible and fast connectivity for multiple peripherals. The integrated Hub Feature Controller facilitates port and GPIO configurations through one-time programmable memory (OTP), providing customization for specific application needs.
Battery charging capabilities include support for USB-IF revision 1.2 on downstream ports (including DCP, CDP, and SDP), allowing simultaneous data transfer and high-speed charging up to 2500 mA. The device also includes predefined port configuration straps for battery charging and port disabling functions.
Designed for surface mounting, the IC comes in a compact 56-pin SQFN package with dimensions of 7mm length and 1mm height. It provides robust ESD protection and operates reliably within the industrial temperature range of -40°C to 85°C, making it suitable for a range of industrial, commercial, and consumer electronics applications.
This controller IC is ideal for application in electronic systems requiring high-speed USB interfacing with efficient power management and extensive configurability for various industrial and commercial electronic devices.
Compliant with USB 3.0 (USB 3.1 Gen 1) supporting up to 5 Gbps SuperSpeed data rate. Includes four downstream USB 3.0/2.0 ports for versatile connectivity. Integrated Hub Feature Controller allows port and GPIO configuration through OTP.
Supports USB-IF revision 1.2 battery charging on downstream ports for efficient power delivery. Built-in ESD protection enhances device reliability. Operates over a temperature range from -40°C to 85°C. Compact 56-pin SQFN package with 7mm length and 1mm height supports surface mounting.
Compatible with Microsoft Windows 8/8.1 and other major operating systems. Supports USB Link Power Management for energy efficiency.
Explore our Electronics & Electricals category to discover a wide array of semiconductor and interface ICs from leading brands to support your industrial and commercial design needs.
Explore more products in our USB Interface IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data transfer rate of this model is 5 Gbps, compliant with USB 3.0 (also referred to as USB 3.1 Gen 1).
This unit supports four downstream USB 3.0/2.0 ports, allowing for versatile connectivity with multiple peripherals.
It operates reliably over a temperature range from -40°C to 85°C, making it suitable for various environments.
The device requires a supply voltage between 1.2V and 3.6V, with a dual supply voltage of 3.3V.
It comes in a compact 56-pin SQFN package, measuring 7mm in length and 1mm in height, designed for surface mounting.
Yes, it supports USB-IF revision 1.2 battery charging on downstream ports, including DCP, CDP, and SDP configurations.
This device supports USB 3.1 protocols and is also compliant with USB 2.0 specifications.
It includes built-in ESD protection, which enhances the device's reliability during operation.
The USB5744-I/2G has a pin count of 56 pins.
It features predefined port configuration straps for battery charging, non-removable, and disable functions.
Yes, it is compatible with Microsoft Windows 8/8.1 and other major operating systems.
This model is part of the USB5744 series.
