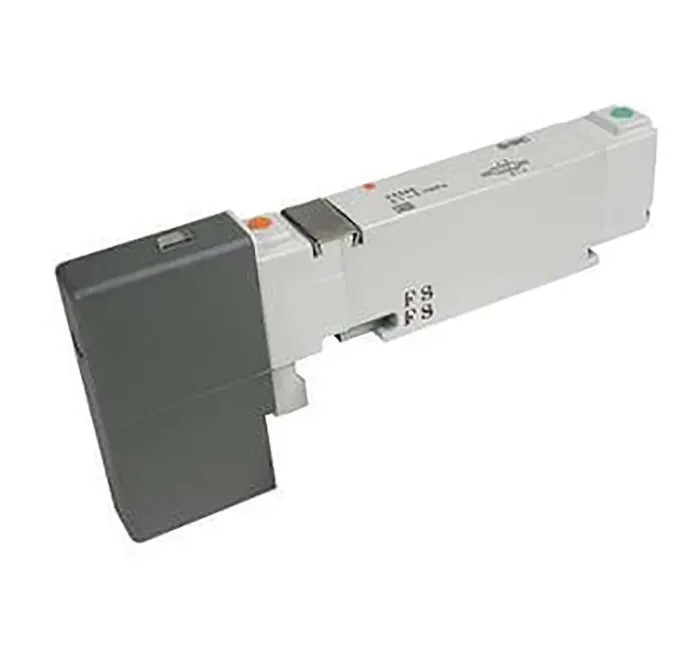

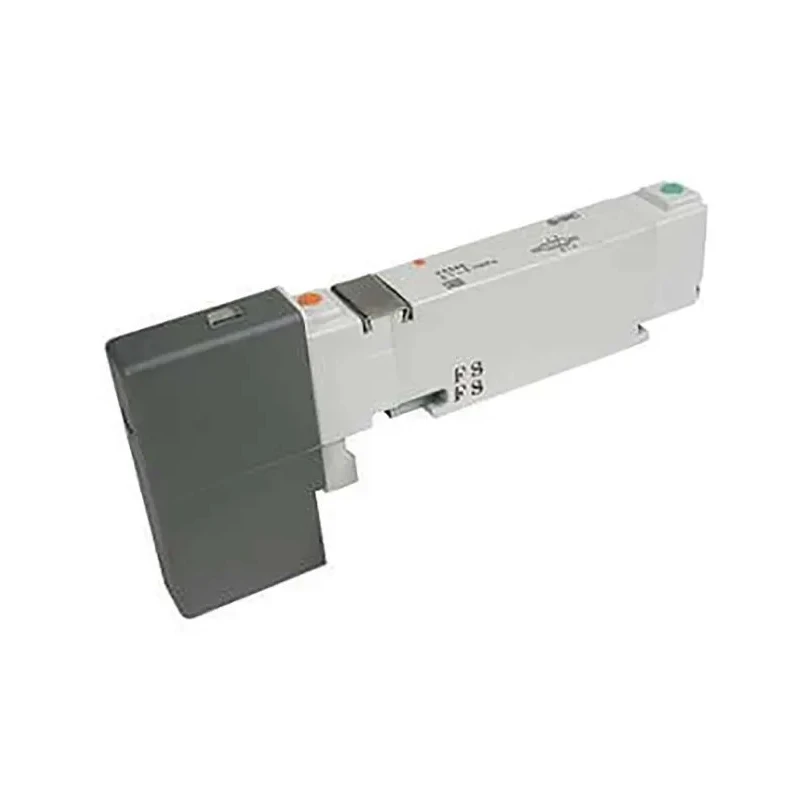

SMC Solenoid Pilot Valve 5/2 Solenoid Rc VQC1000 Series 24V Double Solenoid Base Mount Die Cast Zinc

Free Delivery in India | Lowest Global Shipping Charges

SMC Solenoid Pilot Valve 5/2 Solenoid Rc VQC1000 Series 24V Double Solenoid Base Mount Die Cast Zinc



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Zinc
Maximum Operating Pressure	0.7 Mpa
Model	VQC1000
Mount Type	Base
Series	VQC1000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Operating pressure range	0.1 - 0.7MPa
Actuation Type	Solenoid
Fluid	air/inert gas
Maximum Flow Rate	204L/min
Standards/Approvals	RoHS
Connection Thread Standard	Rc
Minimum Pilot Pressure	0.25bar
Valve Function	5/2
Electrical Connection Type	Plug
Maximum Pilot Pressure	0.7bar
Solenoid Type	Double
Port Gender	Female
Solenoid Power Consumption	0.95W
Ambient & fluid temperature	-10 to 50°C
mm²	metal seal 3,2, rubber seal 4,5
SMC Pneumatic Solenoid Valve - Solenoid VQC1000 SeriesBrand	SMC

Key Features

This valve has a 5-port configuration suitable for pneumatic applications.
It operates at 24V DC with a solenoid power consumption of 0.95W.
The maximum operating pressure is 0.7 Mpa with a maximum flow rate of 204 L/min.
The valve body is made of durable die cast zinc with a rubber seal material.
Designed for fluid air and inert gas, it supports an operating temperature range from -10°C to 50°C.
The connection thread standard is Rc with female port gender.
The valve function is 5/2 with two positions and plug-type electrical connection.
The operating pressure range spans 0.1 to 0.7 MPa, with pilot pressures between 0.25 and 0.7 bar.

Product Description

SMC VQC1201N-51 Solenoid Pilot Valve from the VQC1000 Series is a precision-engineered 5/2 solenoid valve designed for pneumatic fluid control systems. It features a double solenoid actuation with a base mounting type, ensuring reliable and efficient operation in industrial applications. The valve body is constructed from high-quality die cast zinc, providing robust mechanical strength and durability. The valve is sealed with rubber material to ensure leak-proof performance.

Operating at a coil rated voltage of 24 V DC, the valve consumes minimal power of 0.95 watts, making it energy efficient. It supports a maximum operating pressure of 0.7 MPa and a maximum pilot pressure of 0.7 bar, with a minimum pilot pressure of 0.25 bar, suitable for a wide range of pneumatic control needs. The maximum flow rate through the valve is 204 liters per minute, accommodating medium flow applications.

Designed for use with air or inert gas fluids, this valve operates reliably within an ambient and fluid temperature range of -10°C to 50°C. Its 5-port structure with Rc thread connection and female port gender allows versatile piping configurations. The valve function 5/2 with two positions enables precise control over pneumatic operations.

This SMC valve conforms to RoHS standards, ensuring compliance with environmental regulations. Manufactured in Japan, it embodies high-quality craftsmanship expected from SMC pneumatic products. The electrical connection is via a plug type for easy and secure wiring.

This valve offers a reliable 5/2 solenoid operation suitable for industrial pneumatic systems. It is built with a die cast zinc body and rubber seals for durability and leak resistance. Designed to operate efficiently at 24 V DC with low power consumption.

Supports an operating pressure range of 0.1 to 0.7 MPa, with ambient temperatures from -10 to 50 degrees Celsius. Ideal for controlling air and inert gases in various industrial and manufacturing setups. Explore more Pneumatic Solenoid Valves and fluid control products in the Industrial Valves category at EnvMart for robust and efficient automation solutions.
