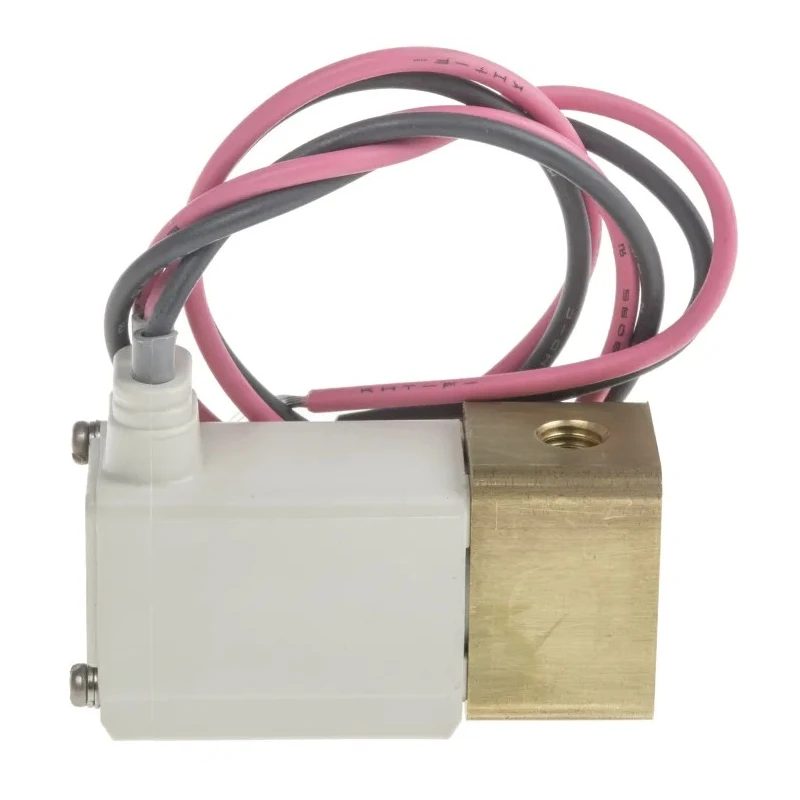

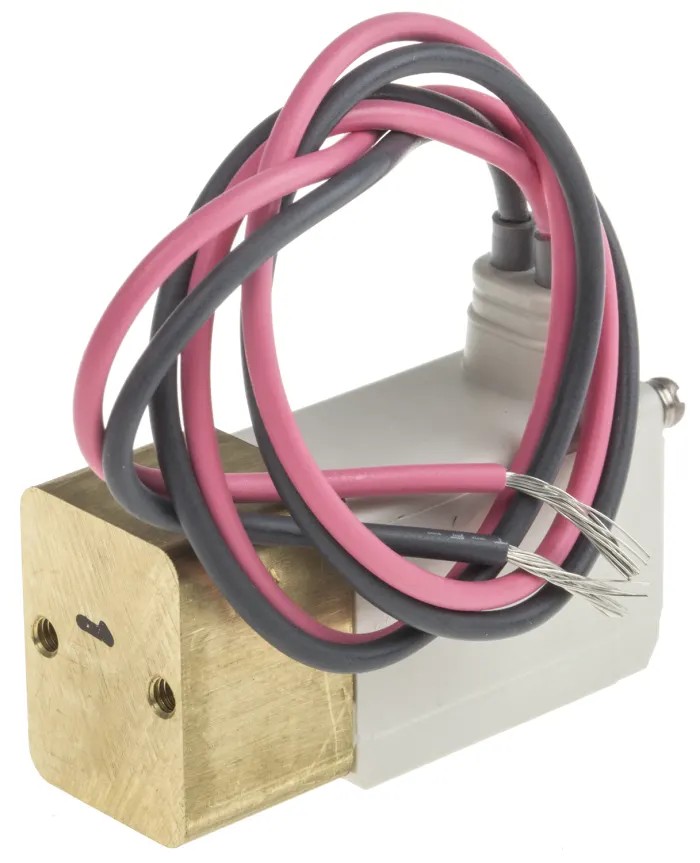

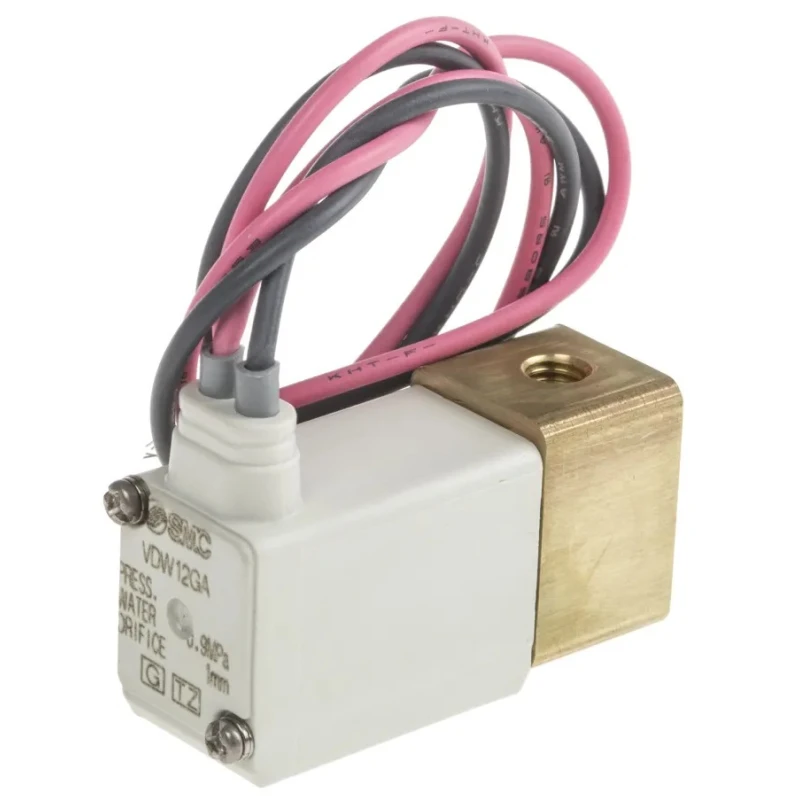

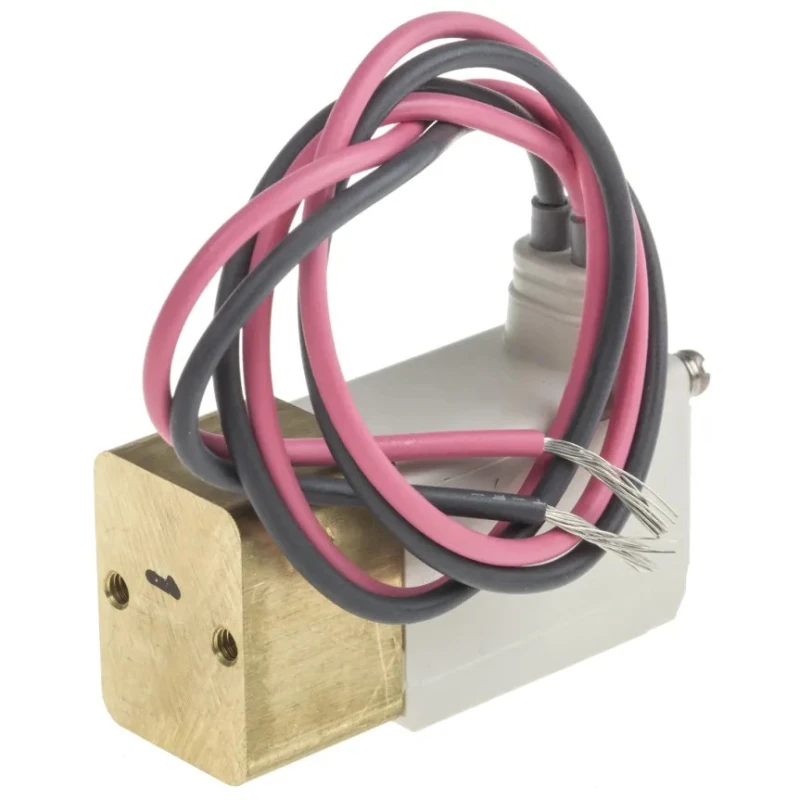

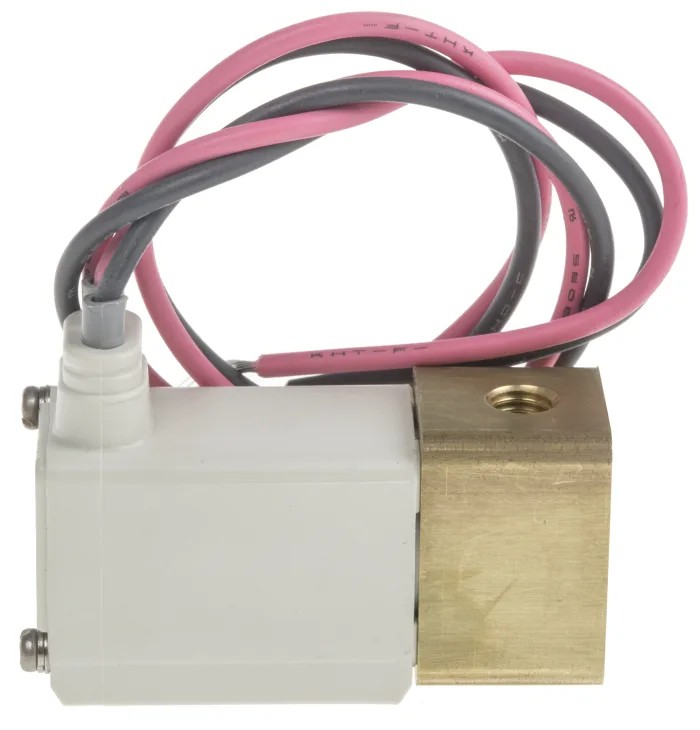

SMC Pneumatic 2/2 Solenoid/Spring Rc Threaded Port Valve 24V DC Resin Body VDW12GA

SMC VDW12GA pneumatic solenoid valve is a 2/2 solenoid/spring valve designed for precise fluid control in pneumatic systems, operating at 24V DC voltage. It features M5 threaded Rc ports with female gender and a compact resin body, making it suitable for manifold installation in confined spaces. This valve is ideal for water, air, and vacuum applications in various industrial, laboratory, HVAC, and manufacturing environments.

Manufactured in Japan, the valve offers a maximum operating pressure of 1 Mpa and pilot pressures between 0.9 MPa and 1 MPa. The seal material is Nitrile Rubber (NBR), providing excellent wear and corrosion resistance. The electrical connection utilizes a grommet type ensuring secure and reliable connectivity.

The valve's size dimensions include a length of 46 mm, width of 15 mm, and height of 34 mm, facilitating easy integration into pneumatic setups. It consumes 2.5 watts of power, promoting efficient operation, and is bracket mounted for sturdy installation. Operating temperature ranges from -10°C to 50°C further extends its applicability under varied conditions.

SMC VDW series valves use innovative magnetic materials that lower operational resistance of moving parts to extend service life and ensure durability. The product complies with RoHS and CE standards, affirming its adherence to safety and environmental guidelines.

The port size is M5 with female port gender. Voltage rating is 24V DC ensuring efficient solenoid operation. Maximum operating pressure is 1 Mpa and maximum pilot pressure is 1 Mpa. The seal material uses durable Nitrile Rubber (NBR) for reliable sealing.

Mounting is bracket type with grommet electrical connection for secure installation. The valve operates within temperatures from -10°C to +50°C. Compact dimensions: length 46mm, width 15mm, height 34mm. Power consumption of the solenoid is 2.5W supporting energy efficient use.

This valve is compliant with RoHS and CE standards ensuring quality and safety. Designed for use with air, water, and vacuum applications in industrial pneumatic systems.

This SMC Pneumatic Solenoid Valve is well suited for industrial automation, fluid power control, manufacturing processes, HVAC systems, and laboratory instrumentation requiring reliable and compact valve solutions. Browse EnvMart’s pneumatic valve category for a full range of compatible solenoid valves and fittings.
