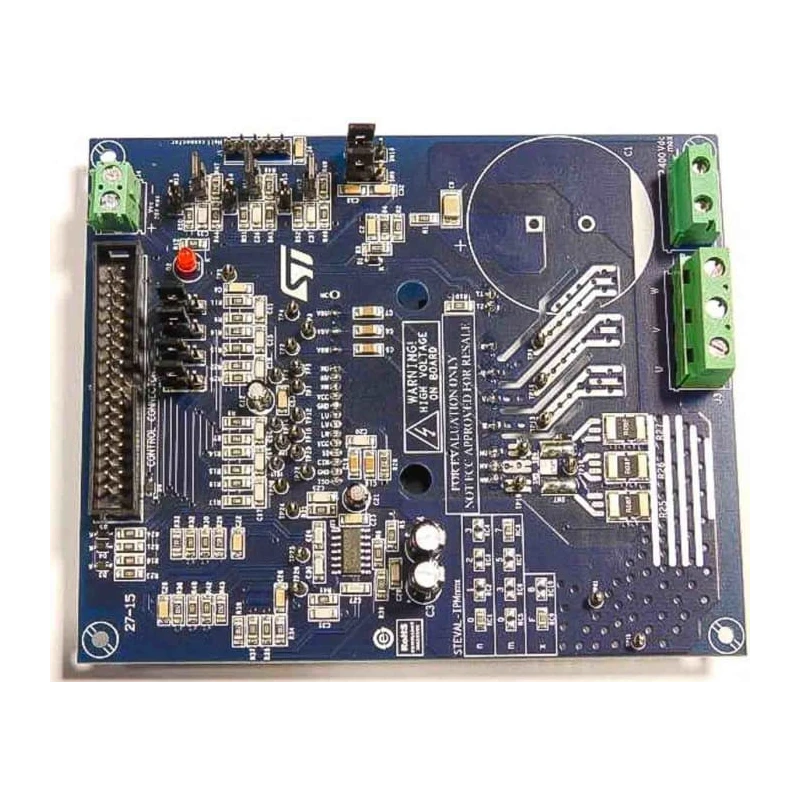

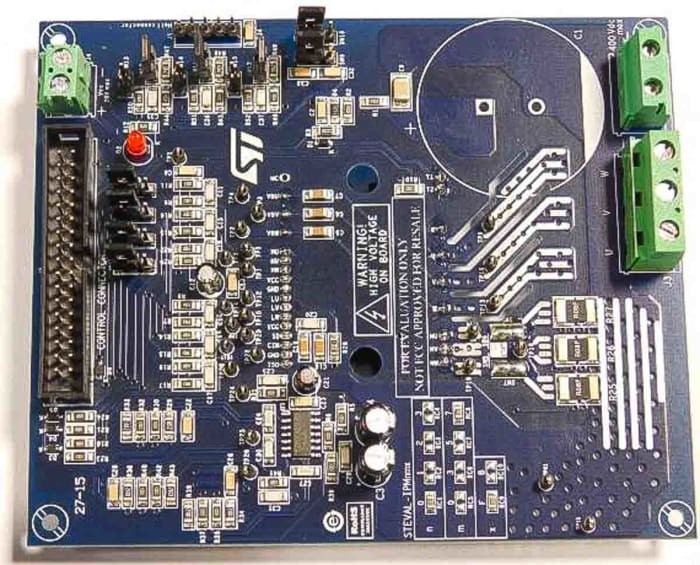

STMicroelectronics Motor Control Power Board Motor Controller Evaluation Board for STGIF7CH60TS-L, RoHS STEVAL-IPM07F
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-IPM07F |
| For Use With | High-End Power Tools, Air Conditioning, Power Fans, Compressors, White Goods, Generally 3-Phase Inverters |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | STGIF7CH60TS-L |
| Kit Name | Motor Control Power Board |
Key Features
- The board features a compact design based on the SLLIMM™ 2nd series intelligent molded module.
- Includes protection features such as undervoltage lockout, smart shutdown, and overcurrent protection.
- Engineered for use with high-end power tools, air conditioning units, compressors, power fans, and 3-phase inverters.
- Provides easy interfacing with BUS and Vcc connectors, along with bootstrap and snubber capacitors.
- Designed for minimal bill of materials and high efficiency in power motor control applications.
- Includes hardware short-circuit protection, fault event signaling, and temperature monitoring with internal sensors.
- Complies with RoHS standards and is manufactured in Italy.
Product Description
STMicroelectronics STEVAL-IPM07F Motor Control Power Board is an evaluation board based on the low-loss intelligent molded module SLLIMM™ 2nd series device STGIF7CH60TS-L.
This compact motor control power board offers an affordable and easy-to-use solution for driving high power motors across diverse applications including power white goods, air conditioning systems, compressors, power fans, and high-end power tools.
The integrated intelligent power module features short-circuit rugged IGBTs, undervoltage lockout, smart shutdown, internal temperature sensing with NTC, and overcurrent protection to ensure reliable operation.
The evaluation board's design emphasizes small size, a minimal bill of materials, and high efficiency.
Essential interface components include BUS and Vcc connectors, bootstrap and snubber capacitors, hardware short-circuit protection circuitry, fault event signaling outputs, and temperature monitoring functions.
Compact design using ST's small low-loss SLLIMM™ 2nd series module. Multiple protection features for robust operation. Supports applications such as power tools, air conditioning, compressors, power fans, and 3-phase inverters.
Easy-to-use evaluation board for motor drive development. RoHS compliant and manufactured in Italy.
This motor control power board is suitable for use in industrial, HVAC, manufacturing, and power electronics development environments, providing an efficient platform for testing and deploying motor drive solutions.
Explore additional STMicroelectronics motor control solutions and power management products at EnvMart for comprehensive industrial applications.
Explore more products in our Motor Controller category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This evaluation board is designed for use with high-end power tools, air conditioning units, compressors, power fans, and generally 3-phase inverters.
The board features a compact design, short-circuit rugged IGBTs, undervoltage lockout, smart shutdown, internal temperature sensing, and overcurrent protection.
It includes BUS and Vcc connectors, along with bootstrap and snubber capacitors for easy interfacing.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
The STEVAL-IPM07F is manufactured in Italy.
It is based on the low-loss intelligent molded module SLLIMM™ 2nd series device STGIF7CH60TS-L.
It includes hardware short-circuit protection, fault event signaling outputs, and temperature monitoring functions.
It provides an efficient platform for testing and deploying motor drive solutions in industrial, HVAC, manufacturing, and power electronics development environments.
The design emphasizes a minimal bill of materials and compact size, which enhances its efficiency in power motor control applications.
It supports motor control for high power motors across diverse applications, particularly in power electronics.
It is classified as an evaluation board, making it suitable for development and testing purposes.
The featured device is the STGIF7CH60TS-L, which is integral to its operation.
