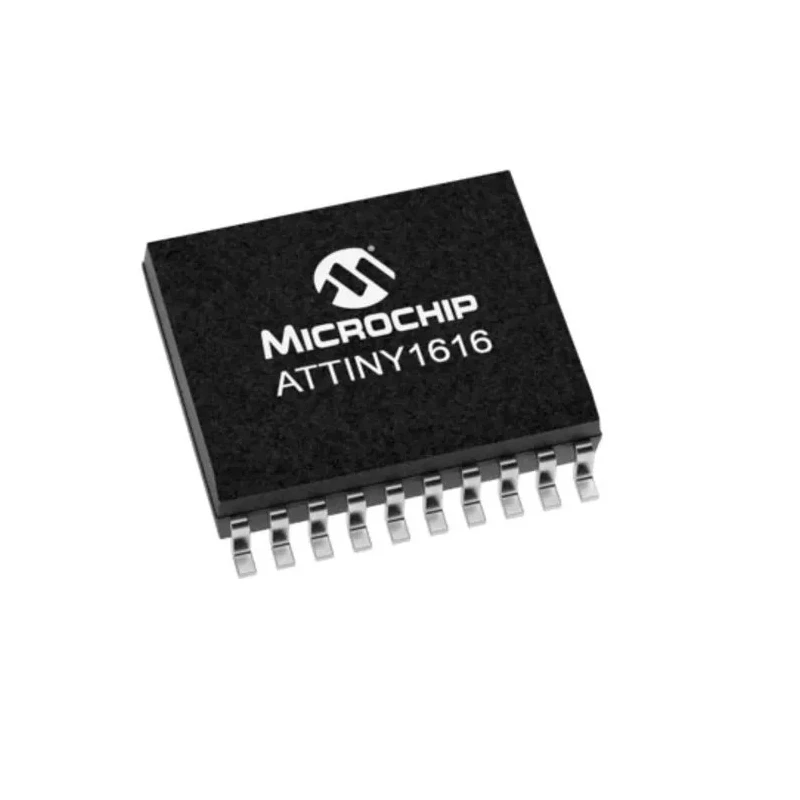

Microchip 8-bit AVR ATTINY1616 Microcontroller 20 MHz, 16kB Flash, 20-Pin SOIC ATTINY1616
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 13mm |
| Model | ATTINY1616 |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | ATTINY1616 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Standards/Approvals | RoHS |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Device Core | AVR |
| Program Memory Size | 16kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 21 |
| Analogue Comparators | 3 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 3 x 8 Bit |
Key Features
- Built with 8-bit AVR processor core and hardware multiplier maximizing processing efficiency.
- Operates at supply voltage range of 2.7V to 5.5V ensuring robust performance.
- Includes 16 kB Flash program memory and 2 kB SRAM for versatile application requirements.
- Features 21 programmable I/O pins, 3 x 8-bit DACs, and 16 x 10-bit ADC channels for flexible interfacing.
- Supports multiple timers including 1x 12-bit and 2x 16-bit timers enhancing timing capabilities.
- Equipped with Core Independent Peripherals, including Event System and QTouch capacitive touch controller.
- Operates efficiently across wide temperature range from -40°C to 125°C suitable for industrial environments.
- Complies with RoHS standards ensuring environmental compatibility.
Product Description
Microchip ATTINY1616 is an advanced 8-bit AVR microcontroller designed for efficient embedded system applications. Operating at up to 20 MHz, this model offers 16 KB Flash memory and 2 KB SRAM housed in a compact 20-pin SOIC surface-mount package. Ideal for industrial, commercial, and consumer electronics projects, the ATTINY1616 balances high performance with low power consumption.
This microcontroller incorporates a hardware multiplier and the latest Core Independent Peripherals, including an Event System and intelligent analog peripherals such as 3 x 8-bit DACs and 16 10-bit ADC channels, facilitating highly responsive control operations. The integrated QTouch peripheral touch controller supports capacitive touch interfaces providing proximity sensing capabilities.
The device supports three sleep modes - Idle, Standby, and Power Down - to optimize power efficiency. Additional features include a Power-On Reset, Brown-Out Detection, Watchdog Timer, and a single-pin programming and debugging interface (UPDI).
The ATTINY1616's operating voltage ranges from 2.7V to 5.5V, and it performs reliably across a broad temperature range from -40°C to 125°C, meeting the demanding conditions of industrial embedded applications. The package dimensions are 13 mm in length, 7.5 mm in width, and 2.35 mm in height.
Utilizes an 8-bit AVR core with hardware multiplier for efficient computation. Program memory size of 16 kB Flash with 2 kB SRAM and 128 bytes EEPROM. Features 21 programmable I/O pins and multiple analog comparators and DACs.
Includes 1x 12-bit and 2x 16-bit timers for precise timing control. Supports SPI, I2C, and USART serial interfaces for communication versatility. Constructed with RoHS compliant materials ensuring environmental safety. Suitable for embedded systems in industrial, laboratory, and commercial applications.
This product comes in a surface-mount SOIC package with 20 pins, providing a compact form factor for high-density circuit boards. Explore more Microcontrollers and components at EnvMart to enhance your electronic design and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 20 MHz.
It has a program memory size of 16 kB Flash.
The operating voltage range is from 2.7V to 5.5V.
This model features 21 programmable I/O pins.
It operates efficiently across a temperature range from -40°C to 125°C.
The microcontroller is housed in a 20-pin SOIC surface-mount package.
This model supports 16 x 10-bit ADC channels.
This microcontroller complies with RoHS standards, ensuring environmental compatibility.
It utilizes an 8-bit AVR core with a hardware multiplier for efficient computation.
The dimensions are 13 mm in length, 7.5 mm in width, and 2.35 mm in height.
