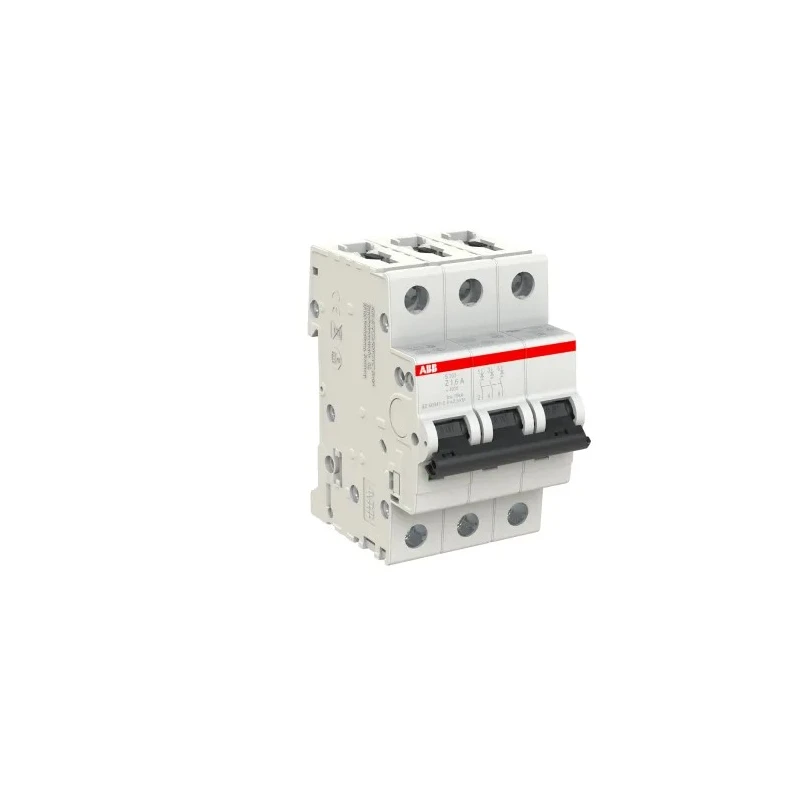

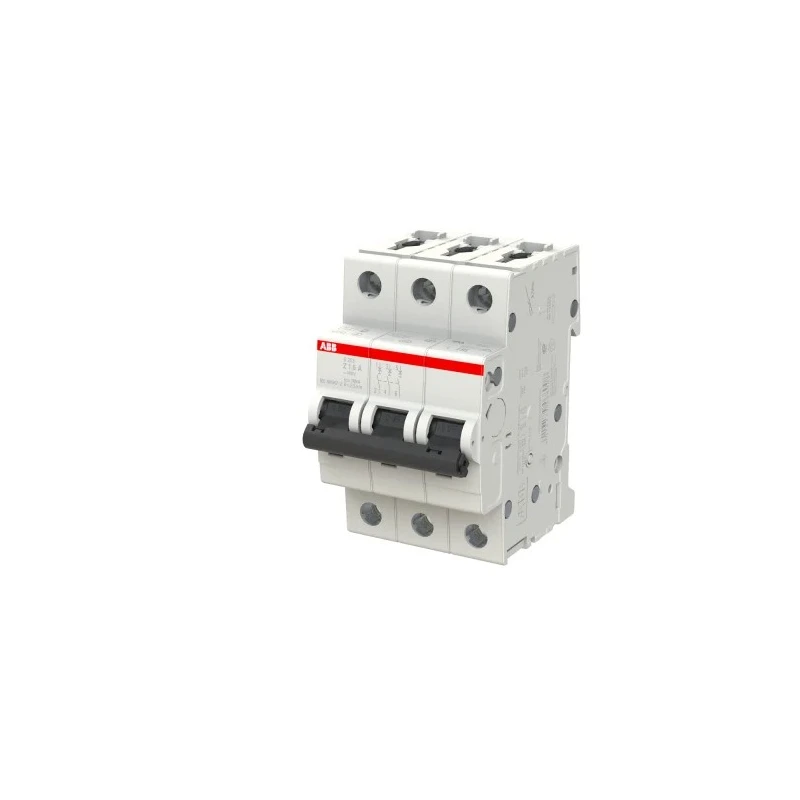

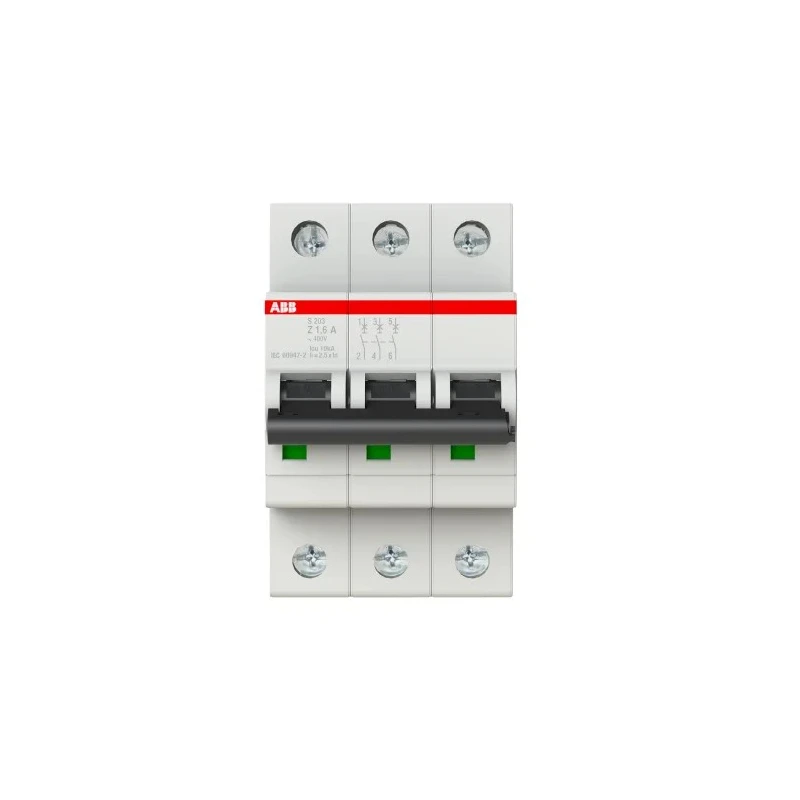

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 1.6A Type Z 400V AC 6 kA 2CDS253001R0258 S203 Z 1.6A - 10 KA

ABB 2CDS253001R0258 S203 Z 1.6A - 10 KA System Pro M Compact S200 Miniature Circuit Breaker is engineered for robust three-pole overcurrent protection in low-voltage distribution and control systems. Rated for 1.6 amperes and 400 volts AC, it is optimized for industrial and commercial automation, electrical, and mechanical installations.

This miniature circuit breaker offers a 6 kA breaking capacity, enabling effective interruption of fault currents to safeguard equipment and circuits. Its Type Z tripping characteristic delivers high sensitivity for circuits with significant inrush currents, making it ideal for motor control and distribution feeders.

The device mounts conveniently on a DIN rail within electrical panels, facilitating straightforward installation and maintenance. A combined thermomagnetic trip mechanism utilizes thermal elements to detect overloads and electromagnetic elements for rapid short-circuit response, ensuring reliable protection.

The breaker features a toggle switch for manual reset, allowing clear and intuitive operation. Screw-type terminals provide secure and stable conductor connections, improving electrical safety and installation quality. Its compact form factor, measuring 52.5 mm wide, allows easy fitment in dense panel layouts and supports efficient busbar arrangements.

Enclosure ingress ratings of IP20 and IP40 provide protection against finger access and limited dust ingress depending on the mounting configuration, ensuring robust environmental resistance. The product complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, confirming its conformity to international electrical safety and performance requirements.

Designed with sustainability in mind, this Miniature Circuit Breaker is built for disassembly, promoting reuse and recycling in alignment with environmental goals. It is manufactured in Germany and is a key component for automation cabinets, auxiliary circuit protection, building services, and electrical distribution boards.

Effective 6 kA breaking capacity protects electrical circuits. Thermomagnetic trip mechanism safeguards against overload and short circuits. Type Z characteristic offers high inrush current sensitivity. DIN-rail mounting simplifies panel installation.

Compact width of 52.5 mm aids space optimization. Toggle switch actuator enables clear manual resets. Screw terminals provide secure and reliable connections. Compliance with IEC/EN standards ensures safety and reliability.

Ingress protection ratings of IP20 and IP40 available based on installation. Designed for disassembly to support sustainability initiatives.

Ideal for industrial, commercial, automation system, and building electrical protection applications. Explore the wide range of ABB products on EnvMart for comprehensive electrical safety solutions.
