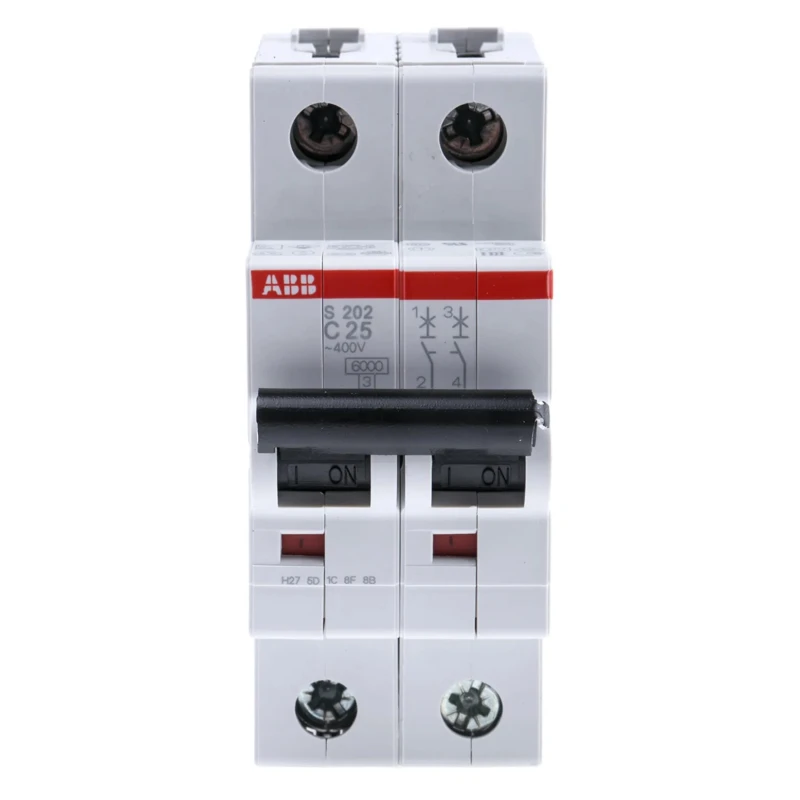

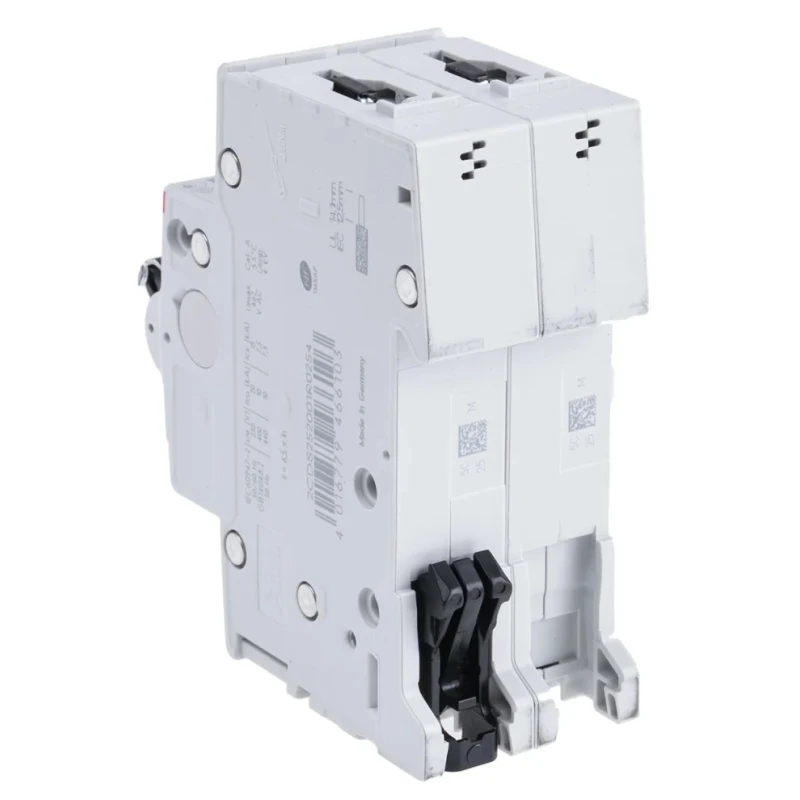

ABB System Pro M Compact S200 Miniature Circuit Breaker 2-Pole 25A Type C 400V AC, 125V DC 10 kA 2CDS252001R0254 S202-C25

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker 2-Pole 25A Type C 400V AC, 125V DC 10 kA 2CDS252001R0254 S202-C25



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	69mm
Model	2CDS252001R0254 S202-C25
Depth	69mm
IP Rating	IP20, IP40
Width	35mm
Mount Type	DIN Rail
Current Rating	25A
Series	S200
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	2
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Rated DC Voltage	125V dc
Tripping Characteristics	Type C
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Lever

Key Features

Supports a 25 ampere current rating for reliable circuit protection.
Designed with Type C tripping characteristics suitable for commercial applications.
Features a lever reset actuator for easy manual reset after tripping.
Mounts easily on DIN rail with screw terminal type for secure connections.
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for safety and performance.
Provides short circuit breaking capacity of 10 kA ensuring robust protection.
Compact dimensions with 35mm width, 69mm height, and 69mm depth for space-efficient installation.
IP rating of IP20 and IP40 for protection against solid objects and limited ingress of dust.

Product Description

ABB 2CDS252001R0254 S202-C25 Miniature Circuit Breaker, part of the System Pro M Compact S200 series, offers reliable and precise circuit protection for a variety of industrial and commercial electrical applications. Rated at 25 amperes with Type C tripping characteristics, this 2-pole device is engineered to handle standard short circuit protection and overload detection efficiently.

Designed for mounting on DIN rail systems with screw terminals, installation is straightforward and secure, ensuring stable and durable electrical connections. The MCB supports an AC voltage rating of up to 400 volts and a DC voltage rating of 125 volts, making it suitable for diverse power system configurations.

This device incorporates a lever reset actuator, facilitating quick and convenient manual resets following a trip event, improving maintenance efficiency. The tripping mechanism consists of both electromagnetic and thermomagnetic components, providing a sensitive yet robust response to faults.

With a breaking capacity of 10 kiloamperes, the MCB can safely interrupt high fault currents, enhancing electrical safety and preventing system damage. Its compact physical dimensions (35 mm width, 69 mm height, 69 mm depth) allow installation in tight electrical panels and cabinets.

Rated to IP20 and IP40 protection levels, it safeguards against accidental contact with live parts and applies in environments requiring dust protection. Manufactured in Germany, the product complies with IEC/EN 60898-1 and IEC/EN 60947-2 international standards, ensuring quality and conformity.

Supports 25A current rating for optimal electrical load handling. Type C tripping characteristic suitable for commercial and industrial environments. Easy DIN rail mounting with screw terminals. Lever reset actuator for straightforward operation.

Electromagnetic and thermomagnetic tripping mechanism enhances reliability. 10 kA breaking capacity for high fault current interruption. Compact dimensions facilitate installation in limited spaces. IP20 and IP40 rated for protection against dust and solid objects.

Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards. Manufactured in Germany ensuring premium build quality.

This ABB Miniature Circuit Breaker is recommended for commercial and industrial circuit protection applications, providing robust safety and efficiency. For further product options within circuit breakers and electrical safety devices, explore the comprehensive selections available at EnvMart.
