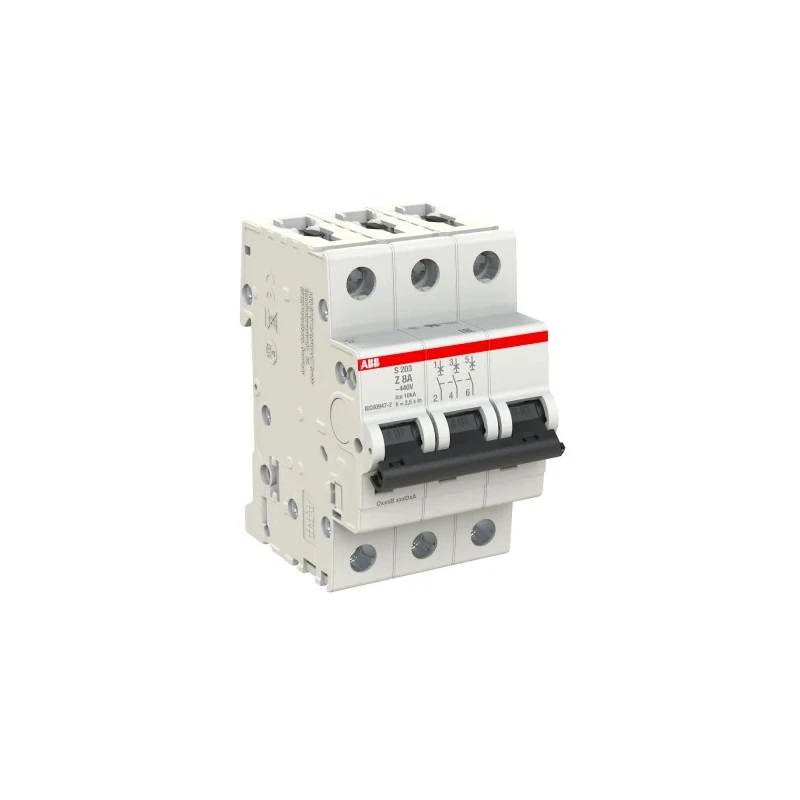

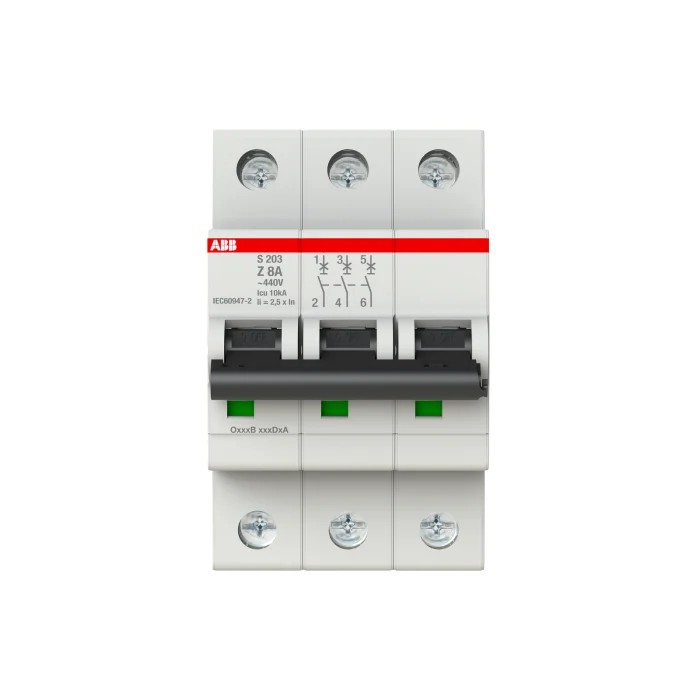

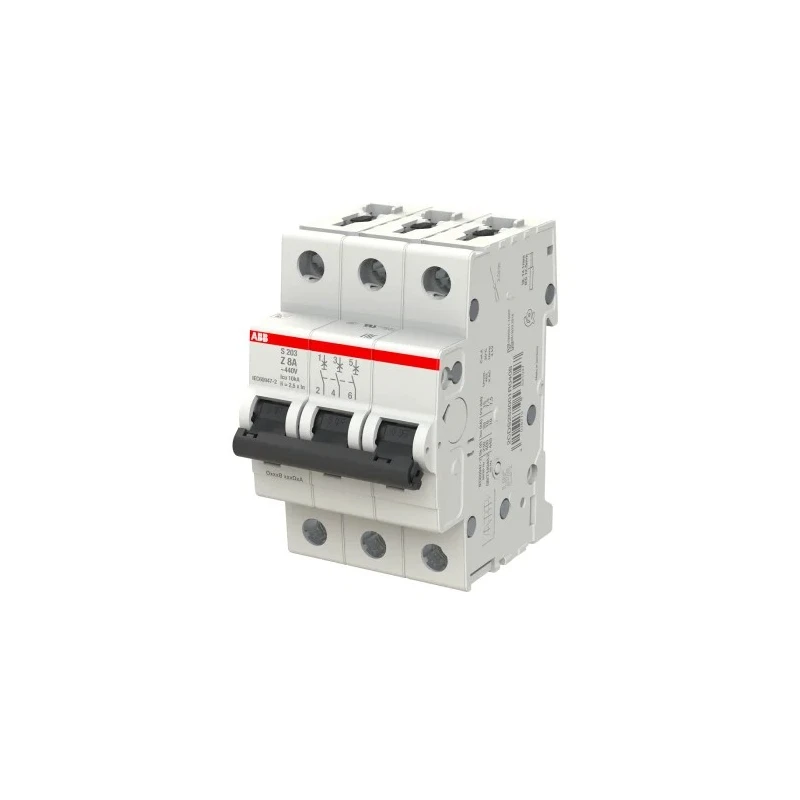

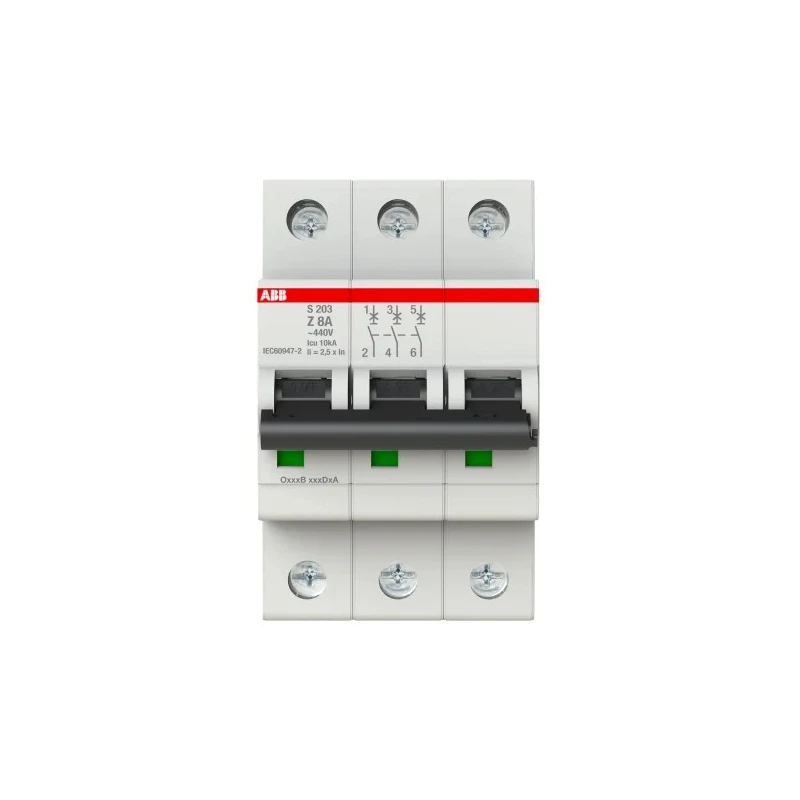

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 8A, Type Z, 400V AC, 110V 2CDS253001R0408 S203 Z 8A - 10 KA
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS253001R0408 S203 Z 8A - 10 KA |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 8A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | UL 1077, IEC/EN 60947-2 |
| Rated AC Voltage | 400V |
| Rated DC Voltage | 110V |
| Tripping Characteristics | Type Z |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal, Electromechanic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Provides 6kA breaking capacity for effective short-circuit interruption.
- Rated for 400V AC and 110V DC applications ensuring versatile use.
- Compact design with 52.5mm width suitable for high-density panel installations.
- Equipped with thermal and electromechanical tripping mechanisms for overload and short-circuit protection.
- Mounts securely on standard DIN rail for easy assembly and removal.
- Features screw-type terminals for reliable electrical connections under vibration.
- Reset actuator type is toggle switch allowing straightforward manual reset after fault clearance.
- Constructed to meet IEC/EN 60947-2 and UL 1077 standards ensuring quality and safety compliance.
Product Description
ABB 2CDS253001R0408 S203 Z 8A - 10 KA Miniature Circuit Breaker from the System Pro M Compact S200 series is engineered to provide reliable overcurrent protection for industrial and commercial three-phase control circuits. Designed for DIN rail mounting, this device combines thermal and electromechanical tripping mechanisms to safeguard circuits against overloads and rapid short-circuits.
This model features a Type Z tripping characteristic, enhancing sensitivity for downstream device protection especially in automation setups. With a rated current of 8A and breaking capacity of 6kA, it effectively mitigates damage during fault conditions and supports both 400V AC and 110V DC systems, making it suitable for a broad range of electrical applications.
The compact footprint with a width of 52.5mm enables high-density panel designs without compromising pole count or accessibility. The screw-type terminals ensure secure wiring connections capable of enduring industrial vibrations. Its toggle switch reset actuator permits easy manual reset once faults are cleared.
Compliance with UL 1077 and IEC/EN 60947-2 standards guarantees superior quality and safety. IP20 and IP40 ratings offer adequate protection from environmental dust and contact. Originating from Germany, this Miniature Circuit Breaker supports motor-starter protection in automation panels, distribution boards, and compact switchgear installations requiring coordinated trip curves and dependable hot-plug DIN rail installation.
6kA breaking capacity reduces damage during short-circuit events. Type Z tripping characteristic protects sensitive downstream devices. 8A rated current for controlled low-load circuit protection. 400V AC and 110V DC ratings enable AC and DC system compatibility.
Toggle reset with screw terminals for straightforward connection. 3-pole configuration supports multi-phase circuit interruption. DIN rail mount type for fast, secure panel installation. Meets IEC/EN 60947-2 and UL 1077 standards for safety and reliability.
Ideal for industrial, commercial, and automation system use cases in electrical distribution and motor control applications. Explore more high-quality circuit breakers in the Electronics & Electricals category on EnvMart for efficient and safe electrical infrastructure solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 8A, making it suitable for low-load circuit protection.
It features a breaking capacity of 6kA, effectively mitigating damage during short-circuit conditions.
This unit is rated for 400V AC and 110V DC applications, ensuring compatibility with both AC and DC systems.
It is a 3-pole circuit breaker, designed for multi-phase circuit interruption.
It utilizes a Type Z tripping characteristic, which enhances sensitivity for protecting downstream devices, especially in automation setups.
The dimensions are 88mm in height, 52.5mm in width, and 69mm in depth, allowing for compact installations.
It is designed for DIN rail mounting, which allows for fast and secure installation in electrical panels.
It features screw-type terminals, ensuring reliable electrical connections even under vibration conditions.
It complies with UL 1077 and IEC/EN 60947-2 standards, ensuring quality and safety in its design.
The reset actuator type is a toggle switch, allowing for straightforward manual reset after a fault clearance.
This miniature circuit breaker is manufactured in Germany, reflecting European engineering standards.
It is suitable for industrial and commercial applications, particularly in electrical distribution and motor control systems.
