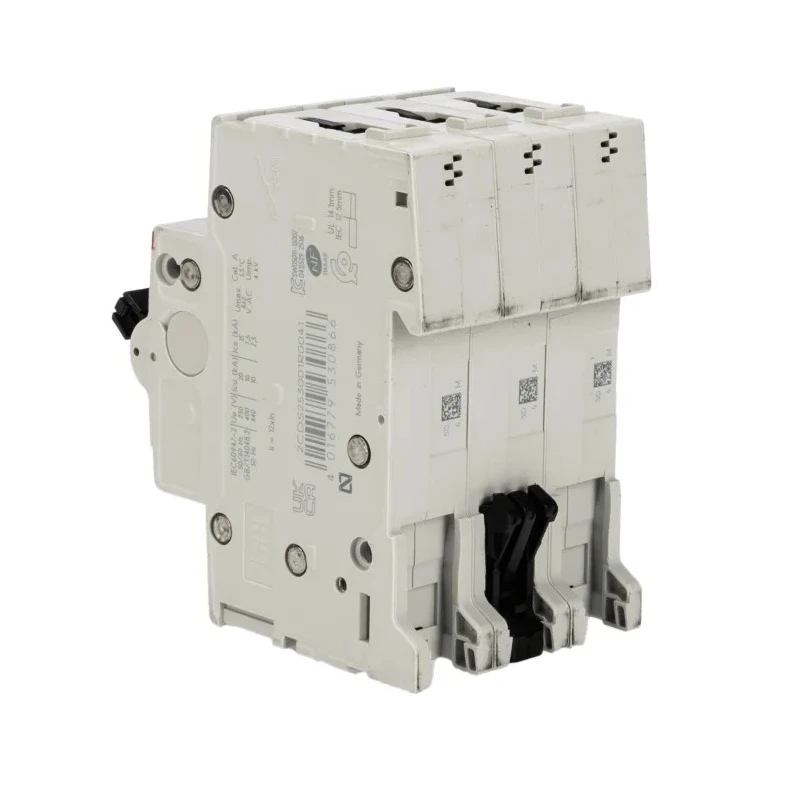

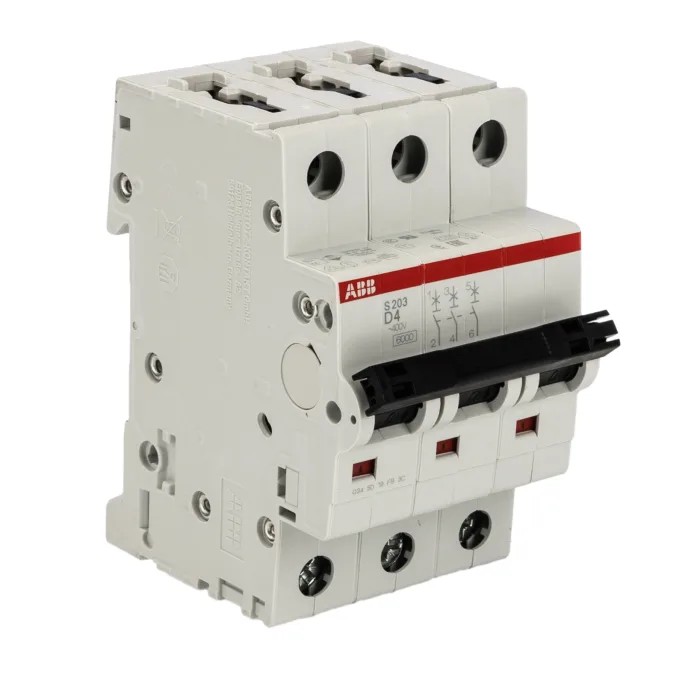

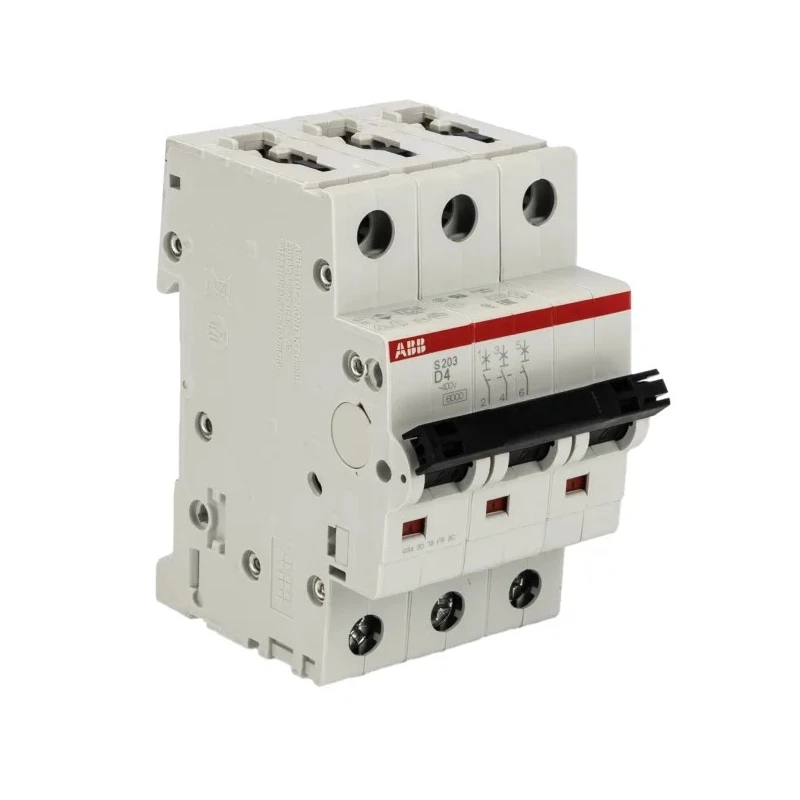

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 4A, Type D, 440V AC, 12V DC, 6kA 2CDS253001R0041 S203-D4
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS253001R0041 S203-D4 |
| Depth | 76mm |
| IP Rating | IP20 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2, UL1077 |
| Rated AC Voltage | 440V ac |
| Rated DC Voltage | 12V dc |
| Tripping Characteristics | Type D |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal, Electromechanic |
| Type D 3 pole MCB,4A 6kA break capacityBrand | ABB |
Key Features
- Features a 3-pole design with a 4A current rating.
- Includes Type D tripping characteristics for selective protection.
- Operates up to 440V AC and 12V DC voltages.
- Has a high breaking capacity of 6 kA ensuring circuit safety.

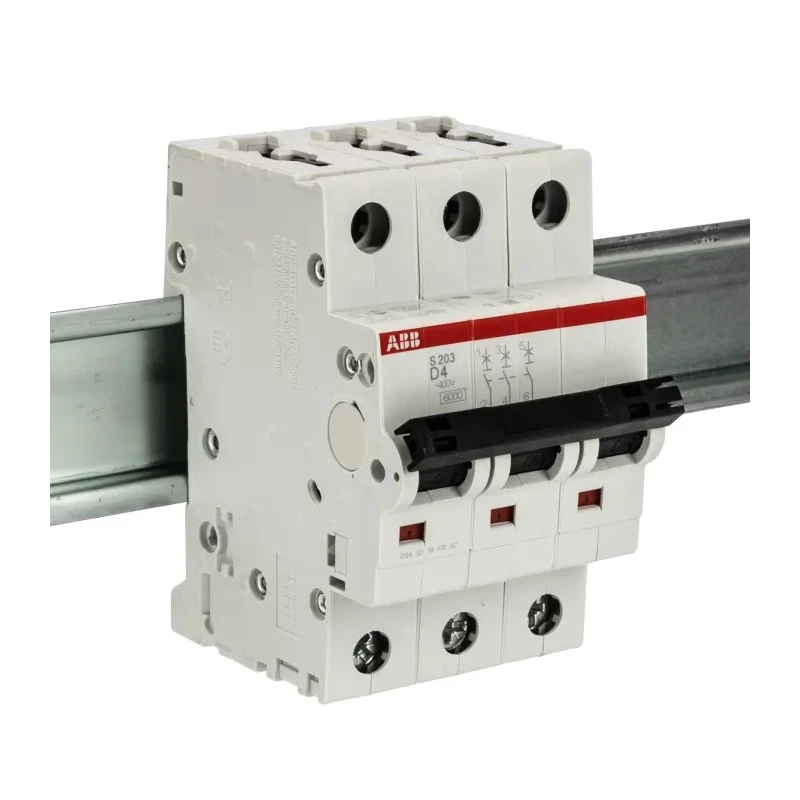

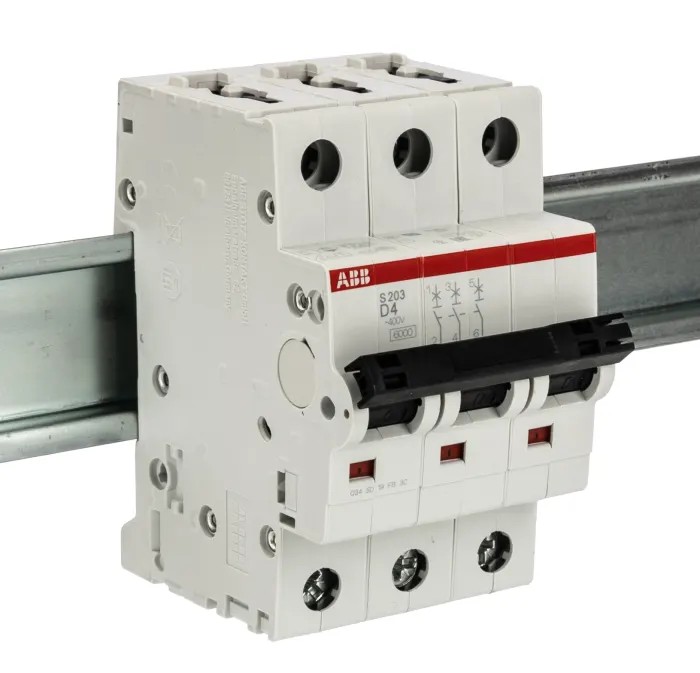

- Mountable on DIN rail for easy installation in control panels.
- Equipped with screw terminal type for secure wiring.
- Thermal and electromechanic tripping mechanisms for comprehensive protection.
- Conforms to IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards.
Product Description
ABB 2CDS253001R0041 S203-D4 Miniature Circuit Breaker from the System Pro M Compact S200 series is a high-performance 3-pole device rated for 4A current, designed to provide efficient and reliable protection against electrical faults in various industrial and commercial environment setups. Operating effectively at AC voltages up to 440V and DC voltages at 12V, this circuit breaker safeguards electrical installations with a breaking capacity of 6 kA, ensuring safety against overcurrent and short circuits.
This device features dual tripping mechanisms: a delayed thermal trip for overload protection and an electromechanic trip for short circuit prevention, thus delivering precise and comprehensive protection. The DIN rail mount configuration improves installation ease and adaptability within electrical control panels. Its screw terminal type ensures stable and secure electrical connections, making it compatible with industrial automation, mechanical assemblies, and electronic systems.
The product adheres to international standards IEC/EN 60898-1, IEC/EN 60947-2, and UL1077, guaranteeing quality and safety compliance. Its IP20 rating protects internal components from solid objects larger than 12 mm and prevents ingress of water to some degree, suitable for indoor industrial and commercial applications. Manufactured in Germany, this circuit breaker embraces an eco-friendly design emphasis facilitating easier disassembly and recycling.
3 poles and 4A rated current ensure effective protection. Type D tripping characteristics provide selective overload protection. Rated to operate at 440V AC and 12V DC voltage levels. Six kiloampere breaking capacity offers high fault tolerance.
DIN rail mounting provides versatile installation options. Screw terminals secure wiring connections. Integrated thermal and electromechanic tripping ensures reliable fault response. Complies with IEC, EN, and UL standards for safety and quality assurance.
IP20 protection rating safeguards internal components. Designed for easy disassembly and environmentally responsible disposal.
Ideal for usage in commercial electrical distribution, industrial equipment safety, automation controls, and machinery protection applications, this ABB Miniature Circuit Breaker is essential for maintaining operational integrity and safety standards. Explore more quality circuit protection solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 4A.
It operates at a rated AC voltage of 440V and a rated DC voltage of 12V.
The breaking capacity of this unit is 6 kA, providing high fault tolerance.
This model features a 3-pole design.
It includes Type D tripping characteristics for selective overload protection.
It is designed for DIN rail mounting, facilitating easy installation in control panels.
The dimensions are 88mm in height, 76mm in depth, and 52.5mm in width.
It is equipped with screw terminals for secure wiring connections.
It conforms to IEC/EN 60898-1, IEC/EN 60947-2, and UL1077 standards.
The unit has an IP20 rating, protecting internal components from solid objects larger than 12 mm.
It features both thermal and electromechanic tripping mechanisms for comprehensive protection.
This model is manufactured in Germany.
