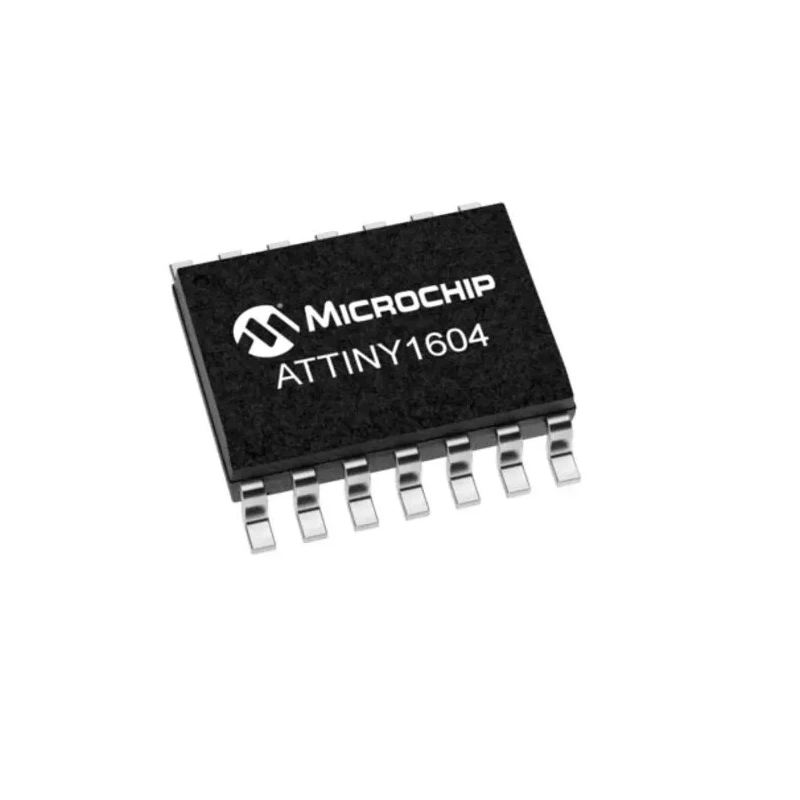

Microchip 8-bit AVR ATTINY1604 Microcontroller 20MHz 16kB FLASH 14-Pin SOIC ATTINY1604-SSN

Microchip ATTINY1604-SSN is a high-performance 8-bit AVR microcontroller designed for embedded applications, featuring a 20 MHz clock speed and 16kB of FLASH program memory. Packaged in a compact 14-pin SOIC surface-mount form factor, it is suited for space-constrained industrial and commercial electronic designs.

This microcontroller incorporates an AVR RISC CPU capable of efficient execution of 135 instruction sets. It includes 1.024kB of SRAM and 256 bytes of EEPROM, providing ample memory for control and data storage tasks. Supporting a wide operating voltage range from 1.8V to 5.5V, it enhances flexibility in power management for various embedded systems.

Advanced analog features include a 12-channel 10-bit ADC with internal voltage reference and analog comparators, enabling precise sensing and control applications. The device also integrates a hardware multiplier, configurable custom logic (CCL), and a 2x 16-bit timer (TCA/TCB), which facilitate complex control schemes and timing operations.

Additional features such as a watchdog timer, Brown-Out Detection (BOD), Power-On Reset (POR), and single pin programming/debugging interface (UPDI) provide system reliability and ease of development. The microcontroller supports three sleep modes: Idle, Standby, and Power Down, optimizing power consumption for battery-powered and low power applications.

Physical dimensions of 8.75mm length, 3.9mm width, and 1.5mm height in the SOIC package make it appropriate for compact PCB layouts in industrial automation, consumer electronics, automotive subsystems (non-automotive qualified), and IoT devices.

Compliant with RoHS environmental standards, the Microchip ATTINY1604-SSN aligns with sustainable design practices. Features an 8-bit AVR RISC CPU with 135 instructions. Includes 1.024kB SRAM and 256 bytes of EEPROM memory.

Operates with a voltage range from 1.8V to 5.5V. Incorporates a 12-channel 10-bit ADC with voltage reference. Offers advanced peripherals like hardware multiplier and Configurable Custom Logic. Equipped with multiple timers, watchdog timer, and Brown-Out Detection.

Supports single pin programming and debugging via UPDI interface. Dimensions are compact at 8.75mm length, 3.9mm width, and 1.5mm height. Designed for low power operation with various sleep modes. Complies with RoHS standards ensuring environmental safety.

This microcontroller is ideal for embedded systems in industrial, commercial, and consumer electronics applications. Explore more Microchip Microcontrollers and related semiconductor products at EnvMart.
