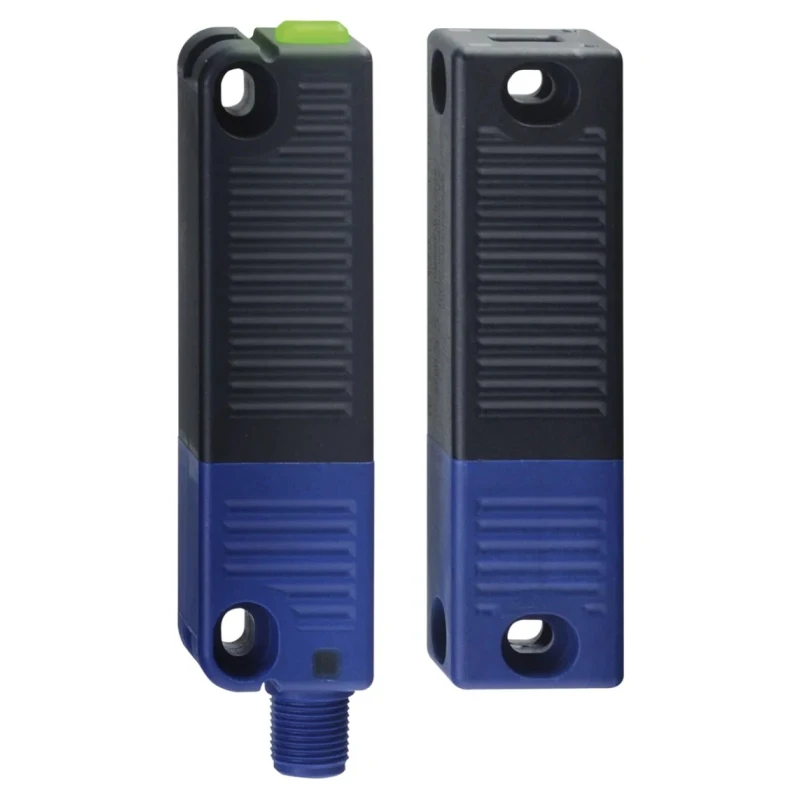

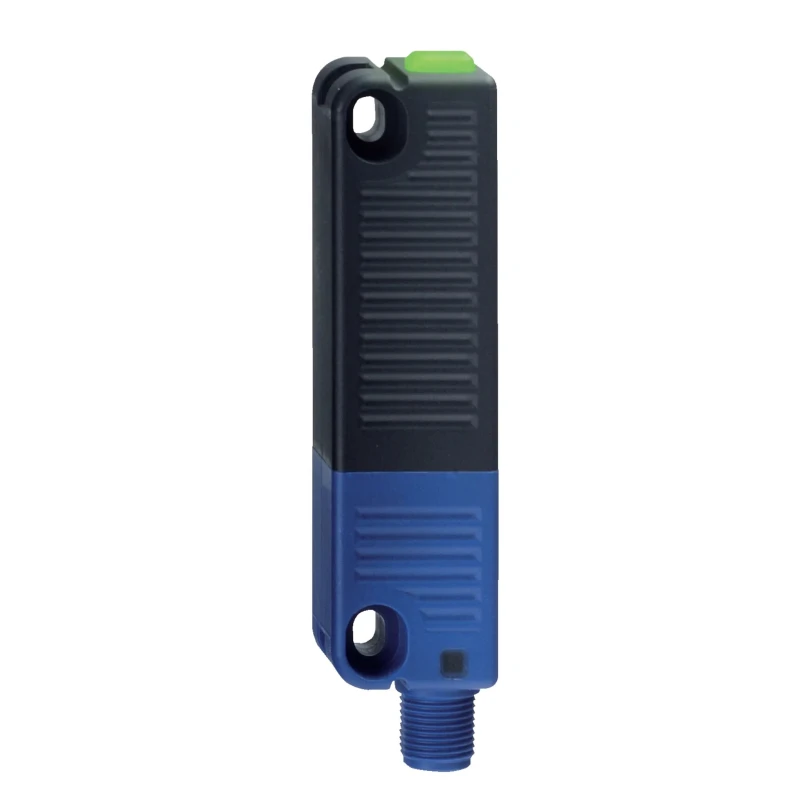

Schmersal Solenoid Interlock Switch RSS 36 Series 24V DC Plastic Housing IP65 IP67 IP69K RSS 36-SD-ST

Schmersal RSS 36-SD-ST Solenoid Interlock Switch is an advanced safety sensor designed to meet high safety standards in industrial environments. It features a robust thermoplastic housing rated IP65, IP67, and IP69K, ensuring reliable operation even in abrasive, dirty, or moist conditions. Operating on a 24V DC supply with a contact current of 0.6A, it is suitable for sensitive safety applications.

The switch is equipped with an M12 plug-in terminal that facilitates quick and efficient wiring and assembly. Its design includes two short-circuit proof PNP safety outputs, enhancing reliability and performance under demanding conditions. The safety cables are actively monitored for wire breakage and external voltage surges, which further increases operational reliability.

Featuring an individually coded sensor and actuator system based on RFID technology, the RSS 36 series provides enhanced protection against tampering and unauthorized access. The switch supports series wiring of up to 31 sensors, offering improved efficiency and system integration.

With its compact dimensions of 27 mm length, 108.2 mm width, and 35 mm depth, the device compensates for slight misalignments between the actuator and sensor, ensuring uninterrupted operation. Its compliance with internationally recognized safety standards such as EN ISO 13849-1, IEC 61508, CE Listed, cULus Listed, and TUV certification underlines its suitability for critical safety control systems.

This Solenoid Interlock Switch finds application in diverse industrial sectors including packaging facilities, the automotive industry, medical and pharmaceutical industries, and construction. Its high repeat accuracy and strong resistance to environmental factors make it an ideal component in demanding safety and automation systems.

The switch operates at 24V DC supply voltage with 0.6A contact current rating. Includes an M12 plug-in terminal for easy wiring and assembly. Thermoplastic housing offers abrasion, dirt, and moisture resistance. Complies with multiple standards including EN ISO 13849-1 and IEC 61508 for safety assurance.

Designed for industrial applications in packaging, automotive, medical and construction sectors. Features two short-circuit proof PNP safety outputs for reliable performance. Offers tamper protection via coded sensor and actuator with RFID technology.

Supports series wiring of up to 31 sensors to improve efficiency. Dimensions are 27 x 108.2 x 35 mm with misalignment compensation for actuator and sensor. Explore more options under the Solenoid Interlock Switch category at EnvMart for matched safety and automation solutions from Schmersal and other reputed brands.
