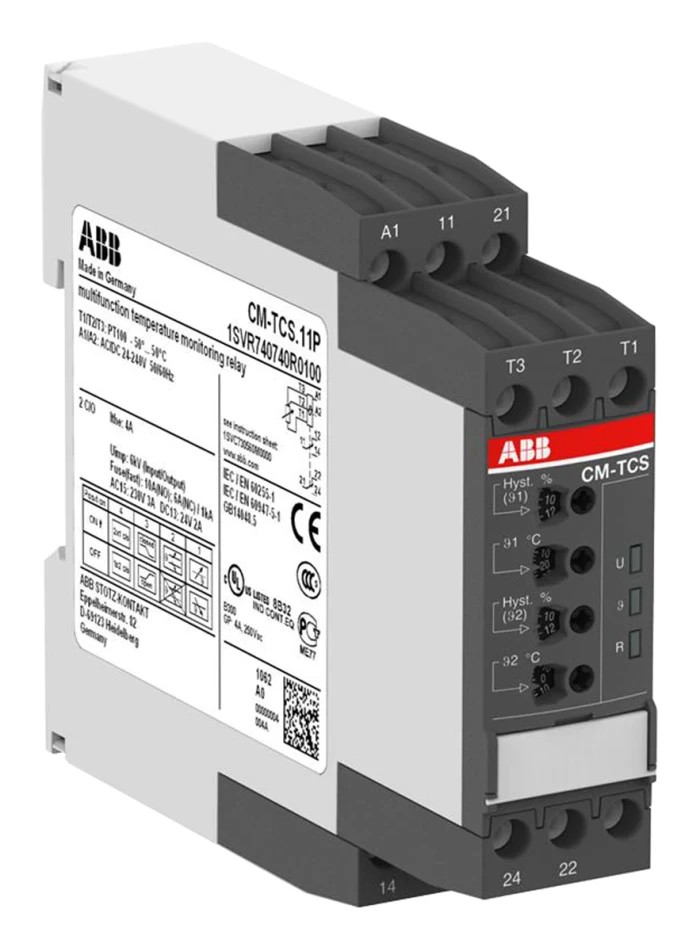

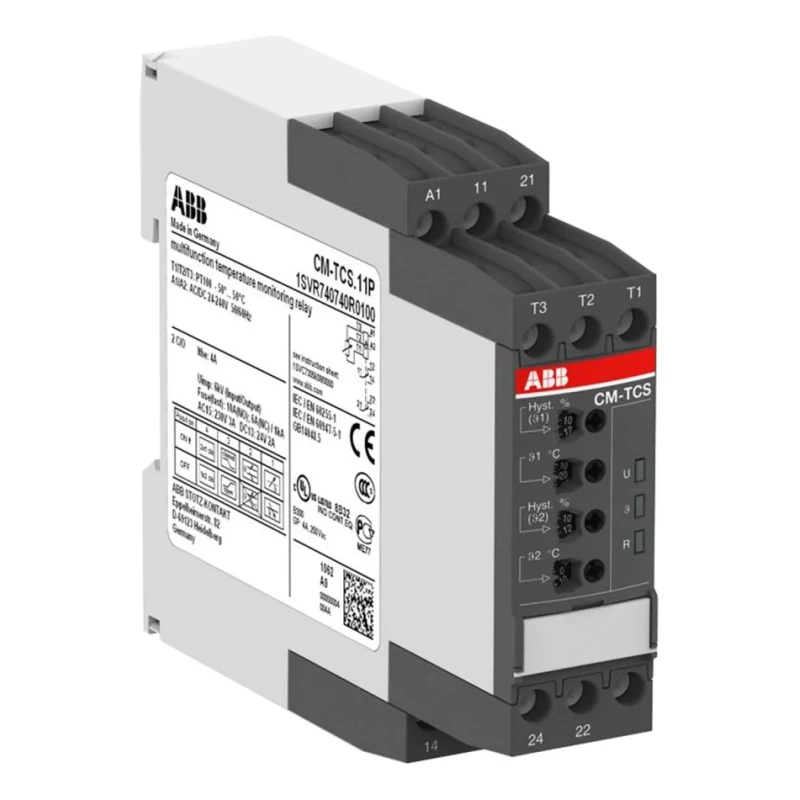

ABB 3 Phase SPDT Monitoring Relay, DIN Rail Mount, 24 V dc/ac, 240 V ac 1SVR740740R0100 CM-TCS.11P

ABB 1SVR740740R0100 CM-TCS.11P is a 3 phase monitoring relay with SPDT contact configuration designed for temperature control using PTC sensors. It features DIN Rail mounting and supports various supply voltages including 24 V dc, 24 V ac, and 240 V ac, making it adaptable for multiple industrial automation applications.

This monitoring relay is engineered for precise temperature thresholds to detect over-temperature, under-temperature, or conditions between two set points. The relay outputs change instantaneously upon crossing the configured temperature limits, while a front-face LED provides clear operational status.

Installation is simplified with push-in terminals, and the device is built to meet IP50 and IP20 protection ratings, suitable for environments requiring moderate protection from dust and contact. With a contact current rating of 4A, it ensures dependable switching within control circuits.

The relay housing is manufactured from fire resistant material meeting UL 94 V-0 standards, supporting enhanced safety in electrical enclosures. Its compact size with 103.7mm length and 85.6mm height allows space efficient integration in DIN Rail electrical panels.

Other notable features include short circuit monitoring, interrupted wire detection, and easy front-face configuration adjustment with direct reading scales. This device is ideally suited for industrial, manufacturing, HVAC, and process automation environments where reliable temperature monitoring is critical.

Designed for temperature monitoring applications with PTC sensors. Supports precise operation with front-face configurable elements and direct reading scales. Equipped with push-in terminal type for easy installation. IP50 and IP20 rated for adequate protection in industrial environments.

Features operational state LED indication for instant status monitoring. Suitable for use in automation and electrical control panels. Compact dimensions with 103.7mm length and 85.6mm height. Contact current rated at 4A ensuring reliable switching performance.

Housing material classified UL 94 V-0 for high fire resistance. Wide operating temperature range suitable for demanding industrial conditions.

This ABB monitoring relay is a valuable component for temperature-based control and safety functions across industrial, laboratory, and manufacturing facilities. It integrates seamlessly with electrical systems requiring high reliability and efficient temperature evaluation.
