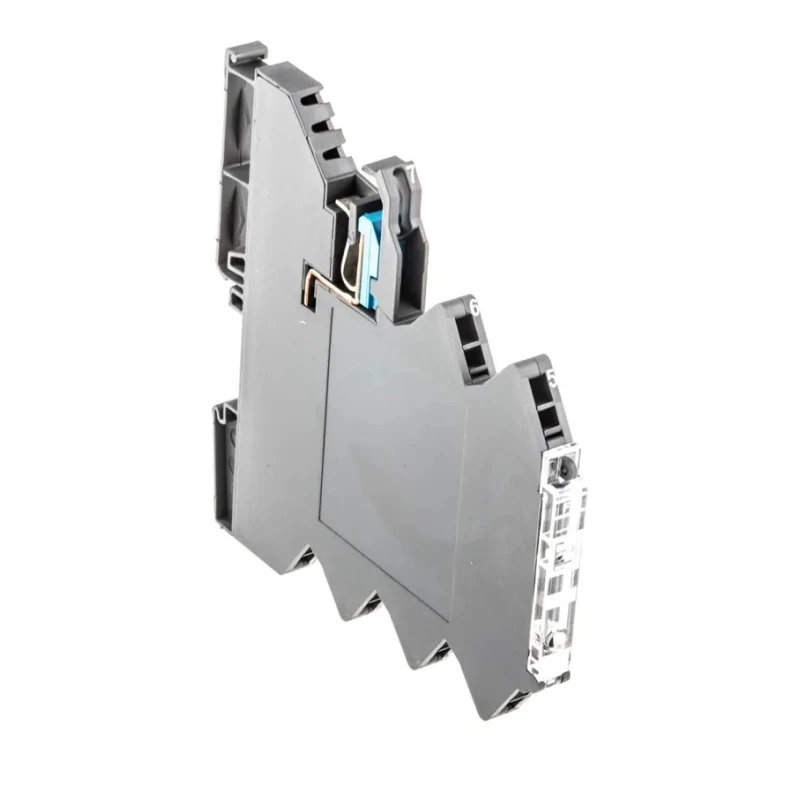

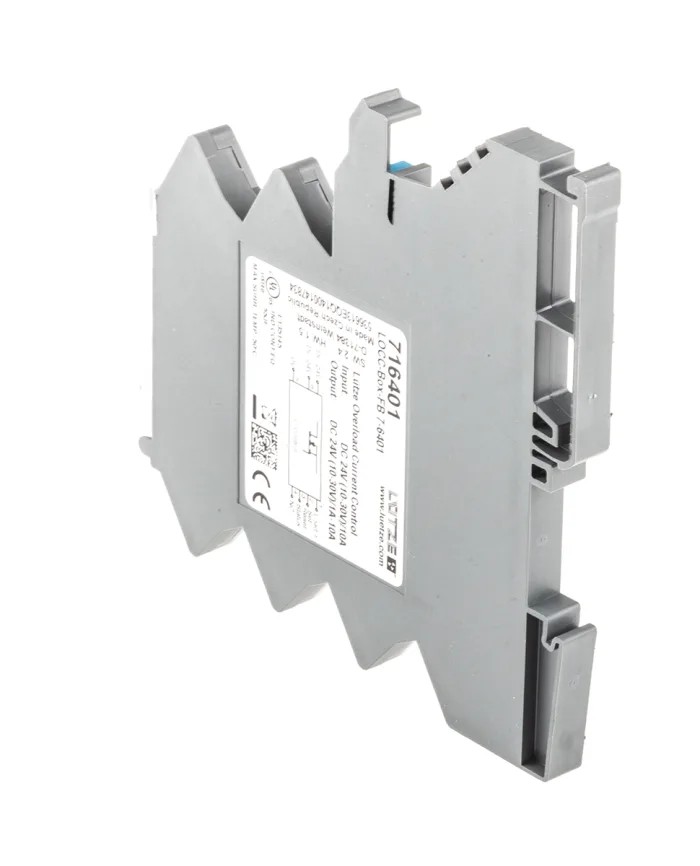

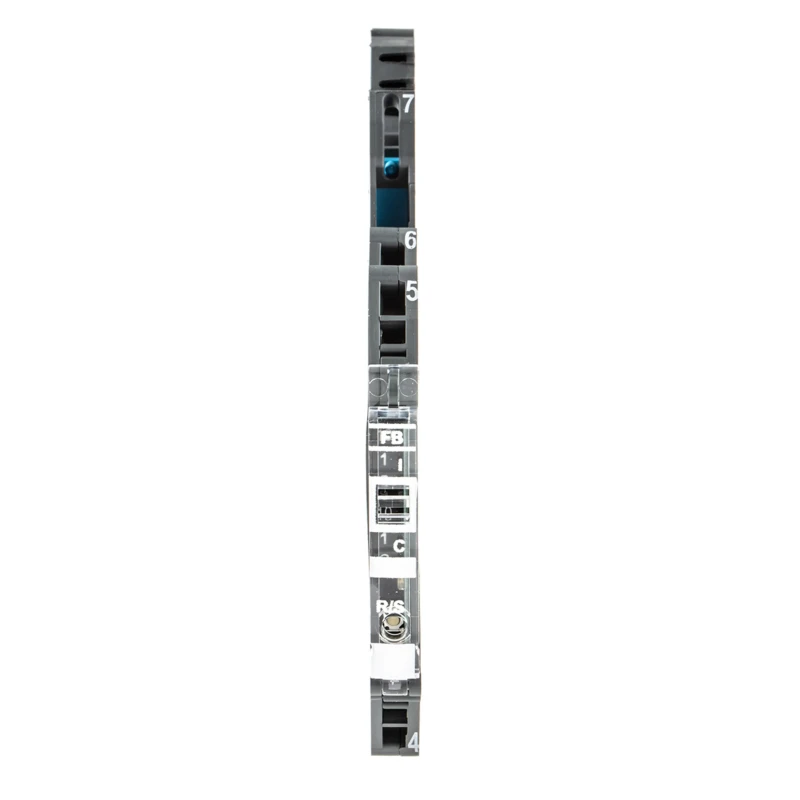

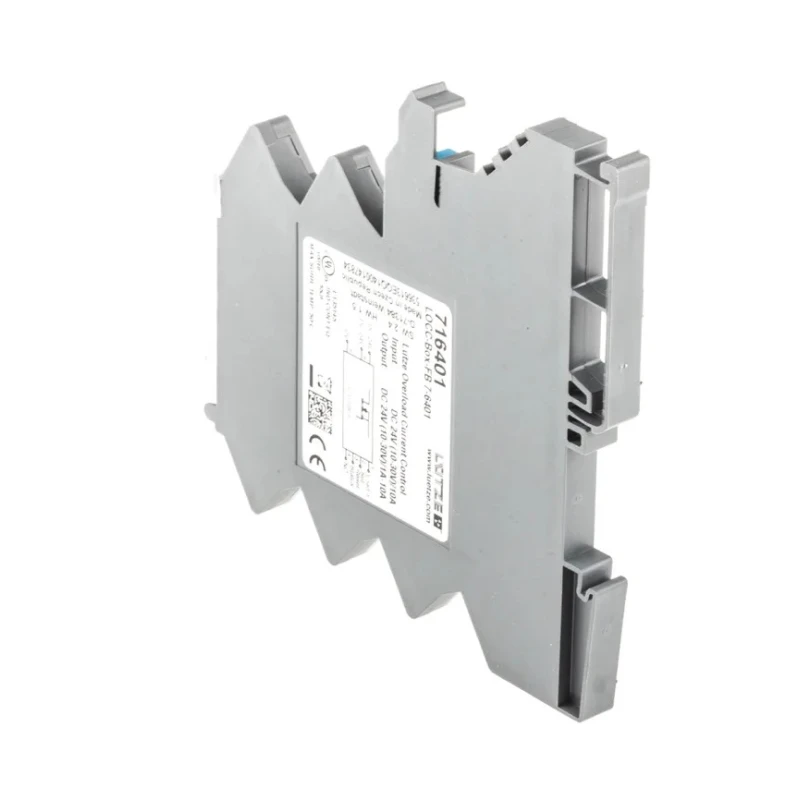

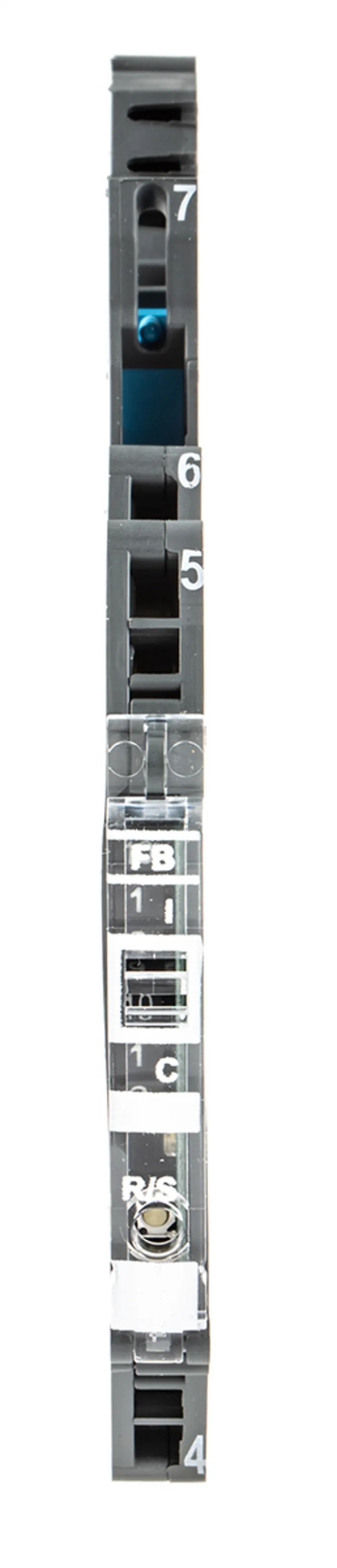

F Lutze Ltd Monitoring Relay DIN Rail Mount Current Sensitivity Overcurrent 1A to 10A 800 ms Time Delay Model 716401

F Lutze Ltd 716401 Monitoring Relay is a high-precision overcurrent monitoring relay designed for DIN Rail mounting in electrical control panels. It senses current from 1 ampere to 10 amperes and includes an 800 ms time delay to ensure accurate and reliable overcurrent detection, suitable for industrial and automation environments.

The relay employs the smart LOCC-BOX current control system, providing versatility in configuration and settings for diverse applications including power systems, machinery protection, and automation control. Its narrow construction of only 8.1 mm width and compact dimensions of 116mm length and 114.5mm height make it ideal for installations with limited space.

Equipped with cage clamp terminals, it ensures robust electrical connections, even in strong vibration environments. The device supports manual or remote on/off operations and features four different status displays for easy diagnostics. Its interrupt-free power supply via a screwless contact slide minimizes control disruptions.

Designed to operate up to 50°C, this relay meets UL 94-V0 flammability class standards and UL 508 international approvals, ensuring safety and reliability in demanding conditions. With temperature-independent response times and jumper link compatibility for contact slots, this relay fits diverse control panel configurations.

Applications include industrial automation, manufacturing equipment control, electrical distribution systems, and HVAC monitoring, making it a valuable component in complex control systems. The product is made in Germany, reflecting stringent quality and engineering standards.

The monitoring relay supports DIN Rail mounting for easy installation. Senses minimum current of 1A and maximum current of 10A for overcurrent sensitivity. Features an 800 ms time delay to prevent unnecessary tripping. Compact size with 116mm length, 114.5mm height, and 8.1mm width for space saving.

Cage clamp terminal type provides secure wiring with vibration resistance. Equipped with intelligent LOCC-BOX system for fault detection and condition storage. Manual or remote On/Off control is supported with multiple status displays.

Constructed to UL 94-V0 flammability standard and UL 508 approvals for safety. Reliable and robust relay for industrial and automation equipment protection. Explore more monitoring relay products in the Electronics & Electricals category at EnvMart for professional-grade control solutions.
