ABB Monitoring Relay DPDT DIN Rail Mount with Screw Terminals 24 V DC/AC, -25°C to 60°C 1SVR730712R0200 CM-MSS.32S

Free Delivery in India | Lowest Global Shipping Charges

ABB Monitoring Relay DPDT DIN Rail Mount with Screw Terminals 24 V DC/AC, -25°C to 60°C 1SVR730712R0200 CM-MSS.32S



Category Monitoring Relays Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Height	85.6mm
Length	103.7mm
Model	1SVR730712R0200 CM-MSS.32S
IP Rating	IP20, IP50
Mount Type	DIN Rail
Series	CM-MSS
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Sub Type	PTC
Minimum Operating Temperature	-25°C
Terminal type	Screw
Standards/Approvals	UL
Contact Current	3.7mA
Supply DC Voltage	24 V dc
ABB Monitoring Relay, SPDT, DIN Rail, 24 V dc 24V ac, 240 V acBrand	ABB

Key Features

The relay features a double-pole double-throw (DPDT) contact configuration.
It supports screw terminal connections ensuring secure and reliable wiring.
Compact size with dimensions 103.7mm length x 22.5mm width x 85.6mm height maximizes DIN rail usage.
IP20 and IP50 ratings provide protection against dust ingress in harsh environments.
Suitable operating temperature ranges from -25°C to 60°C for diverse industrial applications.
High mechanical durability with up to 30 million operation cycles guarantees long service life.
Offers manual, automatic, or remote reset functions for versatile operation.
Includes short-circuit detection enhancing electrical safety in motor protection.

Product Description

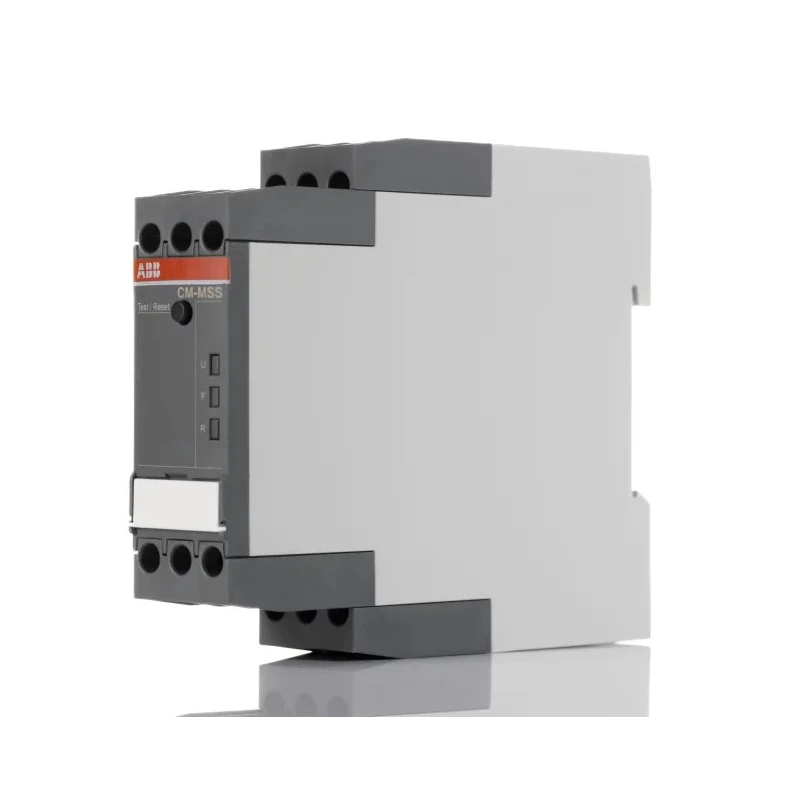

ABB 1SVR730712R0200 CM-MSS.32S Monitoring Relay DPDT DIN Rail Mount is engineered for temperature monitoring applications, especially motors, protecting them from overheating through thermistor motor protection (PTC type).

Designed with a double-pole double-throw (DPDT) contact configuration and screw terminals, this device ensures secure electrical connections without requiring special tools. The compact design measuring 103.7 mm in length, 22.5 mm in width, and 85.6 mm in height is optimized to maximize available DIN rail space in industrial control panels.

It is IP20 and IP50 rated, safeguarding internal components from dust ingress, which is critical in harsh industrial environments. The relay smoothly operates within a broad temperature range from -25°C up to 60°C, making it suitable for machine tools, pumps, and compressors.

With an impressive mechanical durability of 30 million cycles, it offers reliable long-term performance. The relay supports manual, automatic, and remote reset functions, allowing flexible system integration based on operational requirements. Additionally, the built-in short-circuit detection feature enhances electrical safety, preventing possible damage or failure.

The lightweight design at 130 grams reduces the overall panel weight, easing installation and maintenance. DPDT contact configuration suited for precise temperature monitoring and control. Screw terminal connections provide strong and reliable wiring.

Compact form factor fits efficiently onto DIN rails. IP20 and IP50 ratings protect against dust exposure in industrial settings. Wide operating temperature range (-25°C to +60°C) for harsh environments. High mechanical durability of 30 million cycles ensures long product life.

Versatile reset options: manual, automatic, and remote. Short-circuit detection capability enhances system safety. Lightweight construction at 130 grams for convenient installation.

This monitoring relay is ideal for industrial applications including machine tool industry, pumps, and compressors, providing thermal protection and reliable control to maintain operational safety and efficiency.
