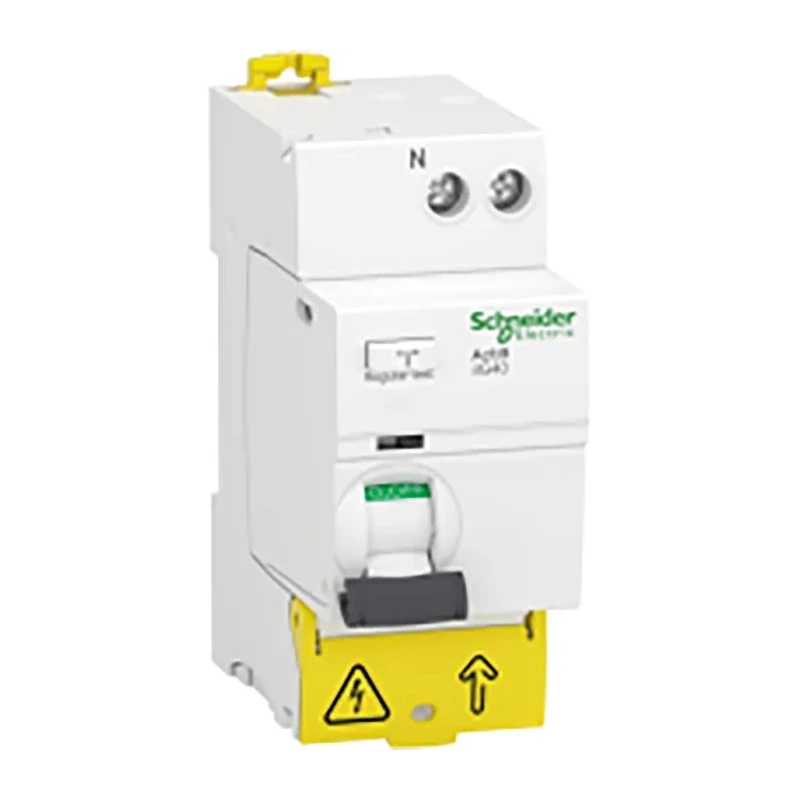

Schneider Electric Acti9 iIG40 Series Residual Current Circuit Breaker, 40A, 1-Pole, 30 mA, Type AC, 1500 A

Schneider Electric A9R67640 Residual Current Circuit Breaker (RCCB) from the Acti9 iIG40 Series offers advanced protection for electrical installations with a 40A current rating and 30 mA trip sensitivity, providing precise earth leakage detection and rapid circuit interruption.

The device is configured for 1-pole circuits and characterized by Type AC tripping, ensuring compatibility with AC earth leakage scenarios. Its DIN Rail mount type allows effortless installation in standard mounting rails used commonly in industrial, commercial, and residential electrical panels.

This RCCB boasts a breaking capacity of 1500 A, ensuring it can safely interrupt high fault currents to prevent electrical fires or equipment damage. The toggle switch actuator facilitates easy manual resetting, while the thermal magnetic tripping mechanism guarantees instantaneous response to overloads and earth leakage currents.

The compact dimensions of 85mm height, 74mm width, and 85mm depth allow for space-saving panel designs, and the screw terminal type ensures secure and reliable electrical connections. Designed to meet stringent EU RoHS, REACH, and RoHS standards, it promises compliance with environmental and safety regulations.

With an impulse voltage rating of 4 kV, this breaker is robust against voltage spikes, enhancing system protection. Originating from Spain, this Schneider Electric product encapsulates high-quality manufacturing standards.

Reliable earth leakage protection with 30 mA trip sensitivity. Suitable for 1-pole circuits with Type AC tripping characteristic. DIN Rail mountable design for easy panel integration. High breaking capacity of 1500 A for fault current safety.

Manual reset with toggle switch for operational convenience. Compact form factor measuring 85×74×85 mm. Screw terminal ensures secure wiring connections. Compliance with EU RoHS, REACH, and RoHS environmental standards. Impulse voltage withstand rating of 4 kV.

Manufactured in Spain with superior quality.

This Schneider Electric Acti9 iIG40 RCCB is ideally suited for industrial, commercial, and residential electrical safety applications. It protects electrical circuits from earth leakage faults, reducing risks of electric shock and fire hazards while enabling fast diagnosis and maintenance with its robust features. Explore more options and technical solutions in the Circuit Breakers & Fuse category at EnvMart for comprehensive electrical protection needs.
