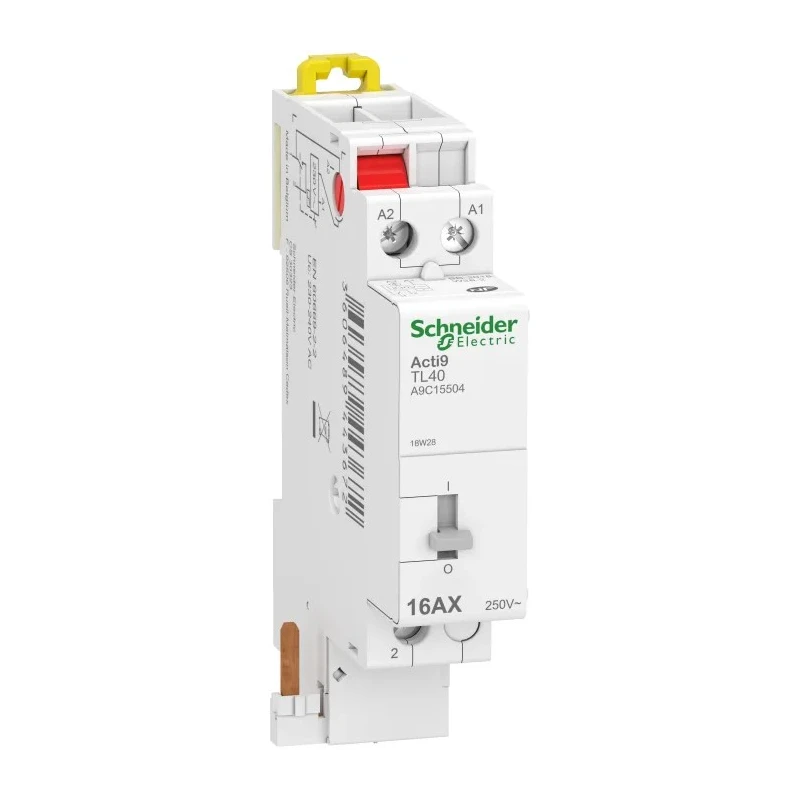

Schneider Electric DIN Rail Power Relay 230V AC Coil 16A Switching Current SPDT A9C15504
Specifications
| Country of Origin | Belgium |
|---|---|
| Brand | Schneider Electric |
| Height | 87mm |
| Length | 69mm |
| Model | A9C15504 |
| Width | 18mm |
| Mount Type | DIN Rail |
| Series | Acti9 iDT40 |
| Contact Configuration | SPDT |
| Switching Current | 16A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Coil Voltage | 230V ac |
| Better World Claim | Designed for Disassembly |
| Impulse Duration | 50ms |
| 1P Impulse Relay With NO Contacts, 16 A, 230 V ac CoilBrand | Schneider Electric |
Key Features
- The relay operates with a single pole double throw (SPDT) contact configuration.
- It features a compact design suitable for DIN rail mounting with screw terminals for easy installation.
- Supports impulse duration of 50ms ensuring safe and fast switching.
- The relay is RoHS compliant and designed for disassembly supporting sustainability.
- It is suitable for various industrial automation and HVAC applications.
- Supports ambient temperatures between -20°C and +50°C for versatile environmental operation.
- Allows usage with rigid and flexible cables from 1mm² to 4mm² via tunnel terminals.
- Electrical durability is rated for up to 200,000 operational cycles under AC-22 conditions.
Product Description
Schneider Electric A9C15504 DIN Rail Power Relay integrates a 230V AC coil with a single pole double throw (SPDT) contact configuration, engineered for robust electrical switching and control. This compact device, sized 69mm in length, 18mm in width, and 87mm in height, mounts conveniently on standard DIN rails and includes screw terminals for secure wiring connections.
This power relay supports a switching current rating of 16A, with an impulse duration limit of 50ms, ensuring rapid and reliable response in electrical circuits. It complies with RoHS standards and is designed for disassembly, reflecting Schneider Electric's commitment to sustainability and product lifecycle management.
Ideal for industrial automation control systems, the relay excels in lighting control within commercial buildings as well as in home automation settings. It is also well-suited for switching motors and fans in HVAC environments, providing robust performance across these applications.
The relay operates within a temperature range of -20°C to +50°C, offering effective operation across diverse environmental conditions. Its tunnel terminal connections accommodate both rigid and flexible cables sized 1mm² to 4mm², delivering installation versatility.
Designed to sustain up to 200,000 mechanical cycles under AC-22 electrical conditions, this device combines longevity with high performance. Manufactured in Belgium, it meets strict quality control standards to ensure reliable operation in industrial settings.
The relay's SPDT contact configuration enables versatile switching options. The compact DIN rail mount design saves space in electrical panels. Screw terminals facilitate secure and easy wiring. Rated 16A switching current for demanding applications.
Impulse duration of 50ms ensures safe switching operations. RoHS compliant and designed for disassembly to support sustainability goals. Wide operating temperature range from -20°C to +50°C. Supports cable sizes 1mm² to 4mm² with tunnel terminal connections.
Electrical durability rated up to 200,000 cycles under AC-22. Manufactured in Belgium ensuring product excellence. Explore Schneider Electric's range of Power Relays and automation components at EnvMart for industrial and commercial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 16A, making it suitable for demanding applications.
This model operates with a coil voltage of 230V AC.
It features a single pole double throw (SPDT) contact configuration, allowing for versatile switching options.
The relay measures 69mm in length, 18mm in width, and 87mm in height.
The relay supports an impulse duration of 50ms, ensuring safe and rapid switching operations.
It is designed for DIN rail mounting, making installation straightforward and efficient.
It accommodates both rigid and flexible cables sized from 1mm² to 4mm² via tunnel terminals.
The relay operates effectively within a temperature range of -20°C to +50°C.
It is rated for up to 200,000 operational cycles under AC-22 conditions, indicating its electrical durability.
Yes, it is RoHS compliant and designed for disassembly, supporting sustainability efforts.
It is suitable for various industrial automation and HVAC applications, including lighting control and motor switching.
This model is manufactured in Belgium, adhering to strict quality control standards.
