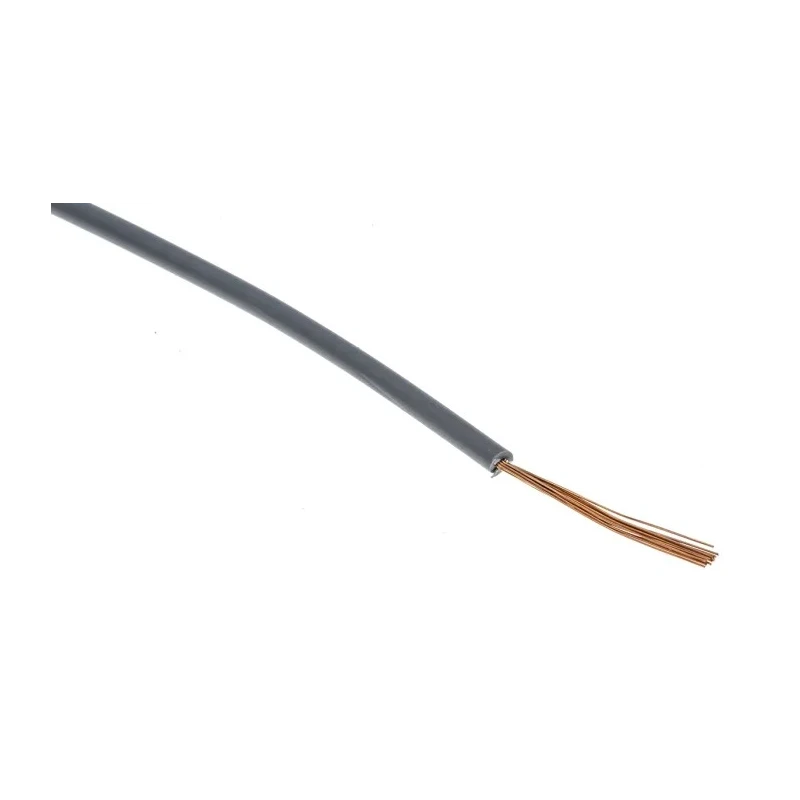

Lapp H05Z-K Series Grey 0.75 mm² Hook Up Wire 100m Low Smoke Zero Halogen Cross Linked Insulation 4725062

Free Delivery in India | Lowest Global Shipping Charges

Lapp H05Z-K Series Grey 0.75 mm² Hook Up Wire 100m Low Smoke Zero Halogen Cross Linked Insulation 4725062

Name: Lapp H05Z-K Series Grey 0.75 mm² Hook Up Wire 100m Low Smoke Zero Halogen Cross Linked Insulation 4725062
Brand: Lapp
SKU: 221102
Price: 120.92 USD
Availability: InStock



Category Hook Up Wire Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	300, 500V
Brand	Lapp
CROSS SECTIONAL AREA	0.75mm²
Model	4725062
Cable Length	100m
Series	H05Z-K
Outside diameter	2.8mm
Maximum Operating Temperature	90°C
Conductor Material	Bare Copper
Sub Type	Single Core
Minimum Operating Temperature	-40°C
Jacket Material	Low Smoke Zero Halogen (LSZH) Cross Linked Insulation
Standards/Approvals	EN 50525-3-41, CE, EAC
Jacket Colour	Grey

Key Features

This wire features low smoke zero halogen (LSZH) cross linked insulation for enhanced fire safety.
The conductor is made of bare copper for excellent electrical conductivity.
Designed for operating voltages of 300 and 500 volts.
Suitable for temperatures ranging from -40°C minimum to 90°C maximum.
Flame retardant in accordance with IEC 60332-1-2 standards providing added protection.
Compliant with EN 50525-3-41, CE, and EAC standards for quality assurance.
Ideal for use in control cabinets, switchgear, and sealed trunking installations.
Wire length is 100 meters with an outside diameter of 2.8 mm and grey jacket colour.

Product Description

Lapp 4725062 H05Z-K Series Grey 0.75 mm² Hook Up Wire with Low Smoke Zero Halogen (LSZH) Cross Linked Insulation is designed for internal wiring, offering excellent fire safety and electrical performance. This single core cable is suitable for wiring appliances, fittings, and installations in conduits and sealed trunking.

The bare copper conductor provides superior conductivity, while the LSZH insulation reduces toxic smoke and prevents release of harmful halogens in the event of fire, making it ideal for environments where human and equipment protection is critical.

The cable supports operating voltages of 300 and 500 V with a temperature range from -40°C to 90°C. Flame retardancy complies with IEC 60332-1-2, and the cable meets harmonized standards EN 50525-3-41, CE, and EAC certifications, assuring safety and compliance.

Typical applications include underground railways, ships, power plants, nuclear facilities, control and switchgear cabinets, and distribution boxes. The durable grey LSZH jacket and 2.8 mm outside diameter support robust electrical installations.

Manufactured in Germany, this cable ensures reliability and quality performance in demanding industrial and commercial settings. Use with compatible cable accessories and glands for secure connections.

This wire features low smoke zero halogen (LSZH) cross linked insulation for enhanced fire safety. Bare copper conductor ensures excellent electrical conductivity. Rated for operating voltages of 300V and 500V. Maximum operating temperature is 90°C, minimum is -40°C.

Flame retardant according to IEC 60332-1-2 standards. Complies with EN 50525-3-41, CE, and EAC approvals. Ideal for use in control cabinets, switchgear cabinets, and sealed trunking. 100 meters cable length with 2.8 mm outside diameter.

Grey colour LSZH jacket suitable for low smoke environments. Explore the range of Lapp wires and cables at EnvMart for high-quality industrial wiring solutions.
