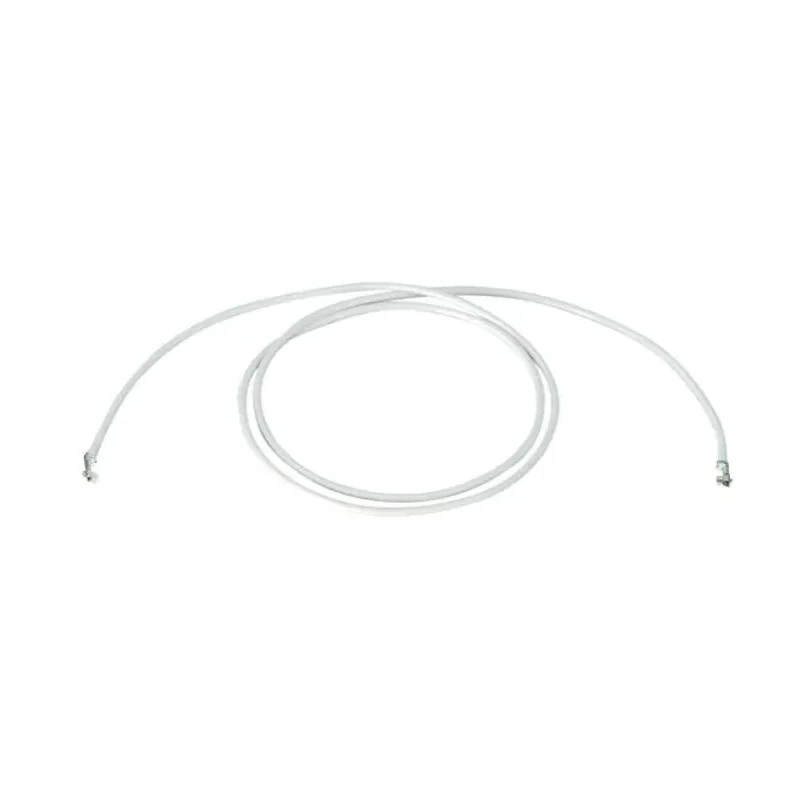

Hirose Crimp Receptacle Pre-Crimped Lead Crimp Receptacle 150V 0.14mm² Wire Size 300mm Cable Length DF13-2630S1-26A9-300(05)

Hirose DF13-2630S1-26A9-300(05) pre-crimped lead crimp receptacle is engineered for high-density, low-profile electronic applications requiring secure and reliable wire-to-board connections. This connector operates at a voltage rating of 150V and accommodates wire sizes of 0.14mm² with a cable length of 300 mm, jacketed in white for easy identification.

The compact miniature size features a surface mount technology (SMT) design with a 5.8mm mounting height, ensuring low-profile assembly in confined spaces. Its double-row multi-contact configuration supports up to 40 contacts, achieving a 30% higher contact density compared to single-row types, thus optimizing mounting area usage.

This product is designed for automated manufacturing processes, with embossed tape packaging suitable for vacuum absorption and automatic mounting equipment. The scoop-proof box header structure effectively prevents connector mis-insertions, and the SMT header includes metal fittings that prevent solder peeling, enhancing connection reliability over product life.

Certifications include UL compliance, assuring safety and quality standards required in industrial and consumer electronic products. Typical applications span PCs, mobile terminals, miniature business equipment, video camera devices, and diverse consumer electronics that require miniaturized, robust connector solutions.

The connector's compact, low-profile design enables integration into tight electronic assemblies. Multi-contact double row construction increases signal density and space efficiency. Embossed tape packaging supports streamlined automatic mounting processes.

Scoop-proof box header prevents mis-insertion, safeguarding device integrity. UL approvals highlight adherence to rigorous electrical safety standards. White cable jacket aids visual identification and wiring management.

Manufactured in Japan, providing high-quality craftsmanship and reliability.

This Hirose crimp receptacle is ideal for industrial, manufacturing, electronics, and consumer device assembly environments. Browse the Electronics & Electricals category for additional Crimped Wire connectors and related components to meet your connectivity requirements.
