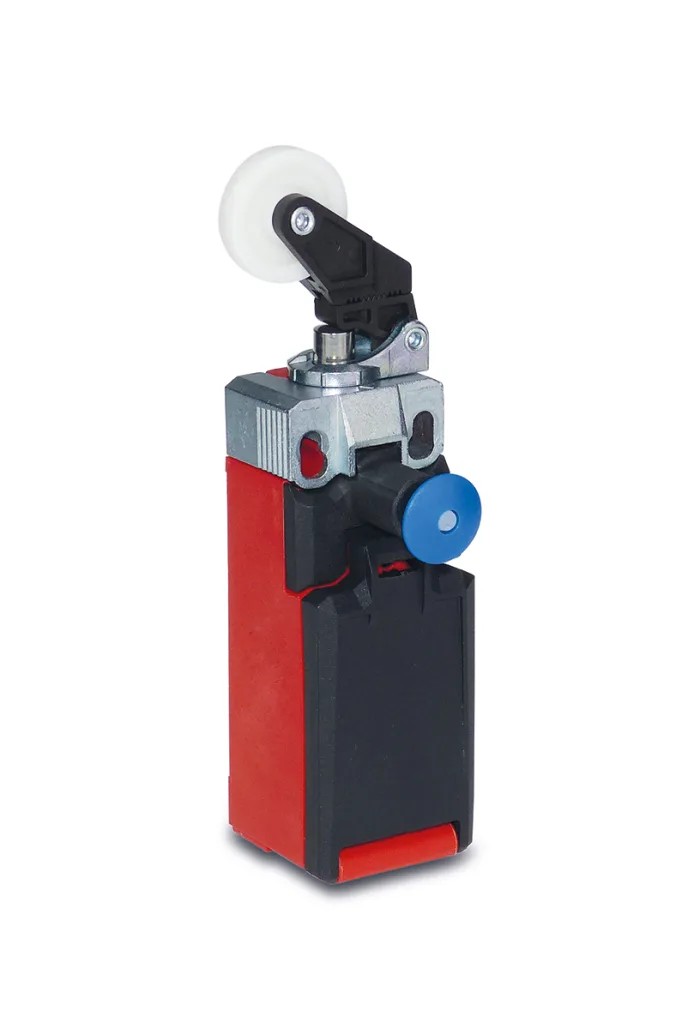

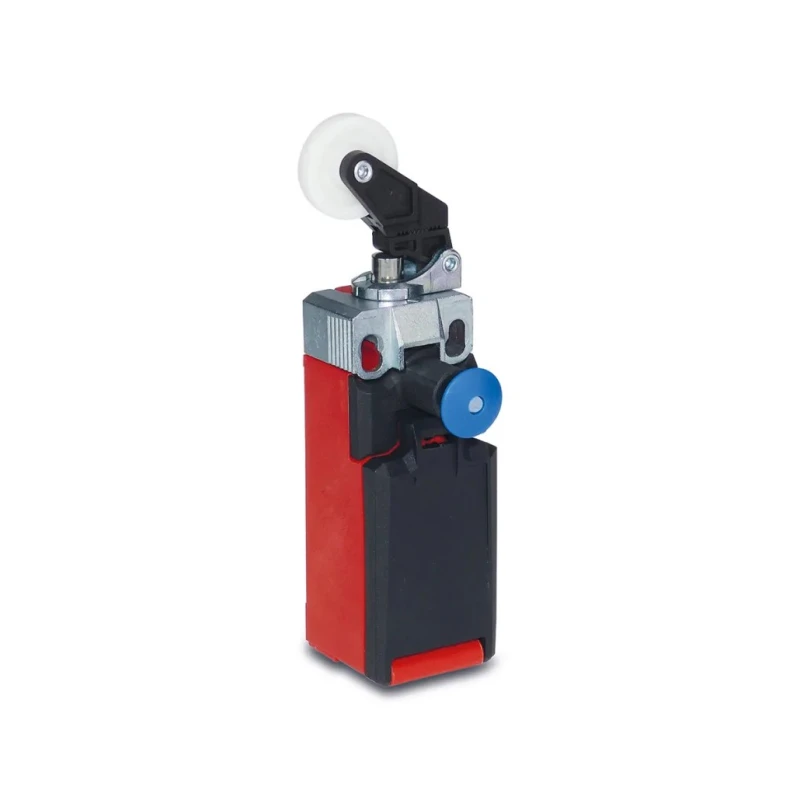

Bernstein AG Roller Lever Limit Switch DPST IP66 IP67 Fibreglass Reinforced Thermoplastic Housing 240V 6083000245
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Bernstein AG |
| Length | 31mm |
| Depth | 30.3mm |
| IP Rating | IP66, IP67 |
| Width | 121mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | I81 |
| Maximum Operating Temperature | 75°C |
| Mounting Orientation | Screw |
| Contact Configuration | DPST |
| Actuator Type | Roller Lever |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -30°C |
| Switching Current | 5A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Operating Force | 10N |
| Mechanical Life | 100000Cycles |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
| Mechanical Service Life | 100.000 switching cycles |
| Integrated latch function | After actuation manually reset by pulling the blue button necessary |
Key Features
- Modular I81 series design enables flexible customer solutions.
- Fibreglass reinforced thermoplastic housing ensures durability and chemical resistance.
- Slow action contacts with 5A switching current capacity.
- Suitable for operating temperatures from -30°C to 75°C.
- Includes integrated latch function requiring manual reset after actuation.
- Tool-free switching of actuator elements with 8 x 45° repositioning capability.
- Metal actuator locking and mounting clip provide enhanced robustness.
- Suitable for conduits with M20 entry and screw mounting orientation.
Product Description
Bernstein AG 6083000245 Roller Lever Limit Switch is a highly versatile and rugged component designed for industrial and automation applications requiring precise position detection and control.
This limit switch features a DPST contact configuration and robust fibreglass reinforced thermoplastic housing, giving it excellent protection ratings of IP66 and IP67, making it suitable for harsh environments with dust and water ingress.
Operating over a broad temperature range from -30°C to 75°C, it accommodates a wide variety of industrial settings. The switch supports switching voltages up to 240V AC and 24V DC with a current rating of 5A for reliable electrical performance.
The mechanical design offers 100,000 cycles lifespan, assuring long-term durability. The modular I81 series allows easy adaptability to individual customer needs with adjustable actuator elements that can be repositioned by increments of 45 degrees.
Enhanced user convenience is provided through the integrated latch function that requires manual reset by pulling the blue button after actuation, preventing unwanted repeated activations. A metal actuator locking mechanism and mounting clip improve stability and service life under demanding conditions.
Modular I81 series allows custom configurations. Durable fibreglass reinforced thermoplastic housing (IP66/IP67). DPST contact type with 5A switching current. Wide operating temperature range: -30°C to 75°C. Manual reset latch function with blue button pull.
Tool-free actuator adjustment with eight 45° positions. Metal actuator locking and mounting clip for robustness. Screw mounting with M20 conduit entry. Mechanical life: 100,000 switching cycles. RoHS compliant, manufactured in Germany.
This limit switch is well-suited for industrial automation, manufacturing processes, HVAC systems, and other applications requiring reliable position detection and control in challenging environments.
Explore EnvMart's range of industrial Limit Switches and other electrical automation components for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This limit switch has a switching current capacity of 5A.
It has protection ratings of IP66 and IP67, making it suitable for harsh environments with dust and water ingress.
The switch can operate in a temperature range from -30°C to 75°C.
It features a DPST (Double Pole Single Throw) contact configuration.
The actuator can be adjusted tool-free with eight 45° repositioning options.
The housing is made of fibreglass reinforced thermoplastic, ensuring durability and chemical resistance.
It has a mechanical life of 100,000 switching cycles.
This model supports screw mounting orientation.
The integrated latch function requires manual reset by pulling the blue button after actuation, preventing unwanted repeated activations.
This limit switch supports switching voltages of 240V AC and 24V DC.
It is manufactured in Germany.
The actuator type is a roller lever, which is designed for precise position detection.
