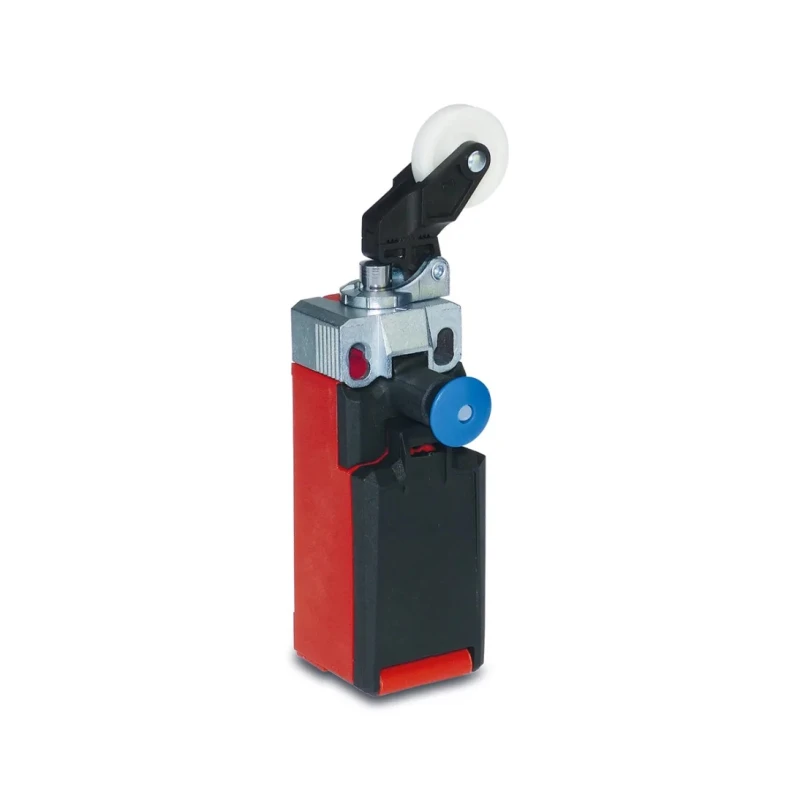

Bernstein AG I81 Series Roller Lever Limit Switch DPST IP66 IP67 Fibreglass Reinforced Thermoplastic Housing 240V 6083000268

Bernstein AG 6083000268 Roller Lever Limit Switch from the I81 series is a high-performance industrial limit switch designed for precise and reliable position detection and control in automated systems. Rated at 240V with DPST contact configuration, this limit switch features a fibreglass reinforced thermoplastic housing offering excellent resistance to environmental factors. With ingress protection ratings of IP66 and IP67, the device is highly suitable for industrial, manufacturing, automation, HVAC, and water treatment applications where dust and water resistance are critical.

The roller lever actuator provides dependable mechanical operation with slow action contacts enabling accurate switching. The modular design allows for customization and easy actuator replacement or adjustment, including adjustable lever positioning in 45° increments. The mechanical life expectancy of 100,000 cycles ensures long-lasting reliability and durability in demanding environments.

The switch supports both AC (240V) and DC (24V) switching voltages with a switching current of up to 5 amps, making it versatile for a range of electrical control circuits. Operating temperatures between -30°C to 75°C accommodate varied industrial climates. The metal actuator locking mechanism and mounting clip contribute to the robust build, minimizing risks of unintentional operation or damage.

This model includes an integrated latch function requiring manual reset after actuation, enhancing safety and control. It has screw-type terminals for secure electrical connections and a conduit entry size of M20 for easy installation. The compact dimensions (122.5mm width, 30.3mm depth, 31mm length) ensure compatibility with common mounting setups.

Produced in Germany and RoHS compliant, the Bernstein AG I81 series limit switch is built according to high-quality standards, making it ideal for industrial automation, manufacturing process control, conveyor systems, and other precision mechanical detection tasks.

The actuator type is a roller lever providing reliable mechanical activation. Contact configuration is Double Pole Single Throw (DPST) with slow action contacts for precise switching. Rated for a switching current of 5A and supports switching voltages of 24V DC and 240V AC.

Designed for robust performance with IP66 and IP67 protection against dust and water ingress. Mechanical life expectancy of 100,000 switching cycles ensures long-term reliability. Operating temperature range from -30°C to 75°C suits industrial environments.

Includes a metal actuator locking feature and a metal mounting clip for enhanced durability. Integrated latch function requires manual reset by pulling a blue button after actuation. Dimensions include width 122.5mm, depth 30.3mm, and length 31mm, fitting standard mounting configurations.

Conforms to RoHS standards and is manufactured in Germany, reflecting high manufacturing quality. Explore more Bernstein AG Limit Switches and industrial automation products at EnvMart for reliable, precision control components tailored to your operational needs.
