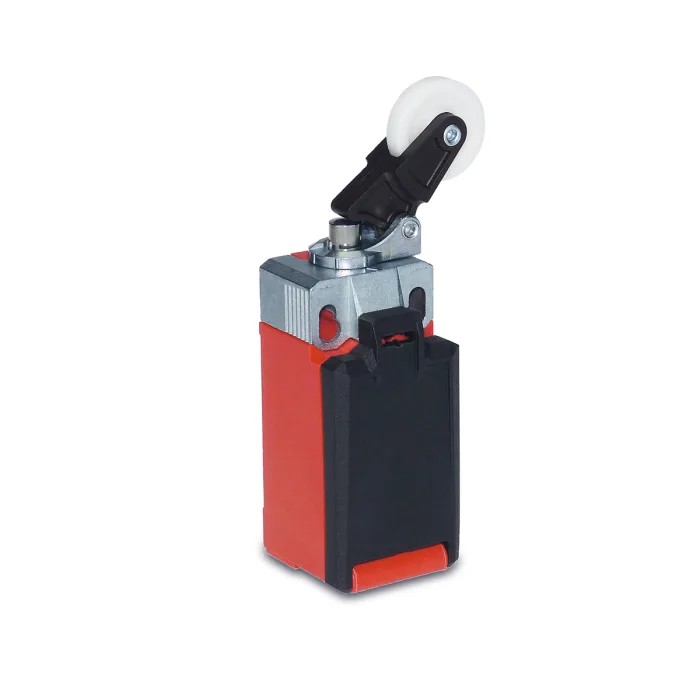

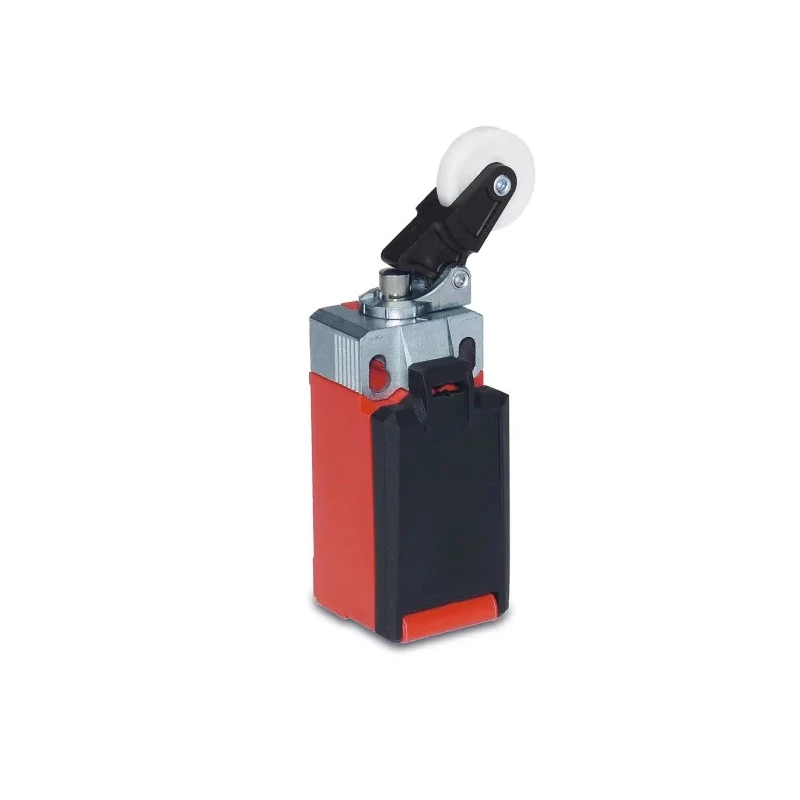

Bernstein AG IN65 Series Roller Lever Limit Switch, 1 NO/1 NC Contacts, IP66/IP67, Fibreglass Reinforced 6083000262
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Bernstein AG |
| Length | 31mm |
| Depth | 30.3mm |
| IP Rating | IP66, IP67 |
| Width | 101.5mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | IN65 |
| Maximum Operating Temperature | 75°C |
| Mounting Orientation | Screw |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Lever |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -30°C |
| Switching Current | 5A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Operating Force | 10N |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
| Mechanical Service Life | up to 30 million switching cycles |
Key Features
- Equipped with 1 normally open and 1 normally closed slow-action contact.
- Suitable for operating voltages up to 240V AC and 24V DC.
- Operates reliably within -30°C to 75°C temperature range.
- Robust design featuring metal actuator locking and mounting clip for enhanced durability.
- High mechanical life of up to 10 million cycles ensures long-term usage.
- Modular design allows easy tool-free actuator adjustments and replacements.
- IP66 and IP67 ratings provide excellent protection against dust and water ingress.
- Mounting orientation is screw type with M20 conduit entry.
Product Description
Bernstein AG 6083000262 IN65 Series Roller Lever Limit Switch is a durable and reliable industrial limit switch featuring a fibreglass reinforced thermoplastic housing designed for harsh environments. This model incorporates 1 normally open and 1 normally closed slow-action contact, making it suitable for precise position monitoring and control tasks in automated industrial systems.
The IP66 and IP67 ingress protection ratings ensure resistance to dust and water jets, suitable for use in a range of industrial, manufacturing, HVAC, and automation applications. The device operates efficiently within a temperature range from -30°C to 75°C, providing versatility in demanding operational environments.
The mechanical life exceeds 10 million cycles, supported by metal actuator locking and mounting clips to enhance operational robustness. The modular construction allows for easy adjustment and replacement of actuators without the need for special tools, offering flexibility for tailored customer solutions. The switch is mounted via screws and uses an M20 conduit entry for secure wiring connections.
The electrical specifications include a contact switching current of 5A with switching voltages of up to 240V AC and 24V DC, adequate for low current industrial control circuits. The slow-action contact type ensures reliable operation in safety and position monitoring roles.
Equipped with 1 normally open and 1 normally closed slow-action contact. IP66 and IP67 ratings protect against dust and water ingress. Fibreglass reinforced thermoplastic housing for enhanced durability. Operating temperature range from -30°C to 75°C.
Mechanical life of up to 10 million cycles. Modular design enables tool-free actuator changes. Metal actuator locking and mounting clip increase robustness. Mounting orientation: screw, conduit entry: M20. Contact switching current rated at 5A.
This limit switch is widely used in industries requiring precise and reliable position sensing and limit control. Applications include automated manufacturing lines, safety facilities, conveyor controls, and other industrial automation systems requiring rugged and adaptable switching solutions.
Explore additional Limit Switches and automation components on EnvMart for comprehensive industrial electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) slow-action contact.
The maximum operating temperature for this limit switch is 75°C.
This limit switch has IP66 and IP67 ratings, providing excellent protection against dust and water ingress.
The mechanical life of this limit switch is rated at up to 10 million cycles.
The minimum operating temperature for this model is -30°C.
The contact switching current is rated at 5A.
It uses a roller lever actuator type, which is suitable for various applications requiring precise position monitoring.
The switch is mounted via screws and features an M20 conduit entry for secure wiring connections.
The housing is made of fibreglass reinforced thermoplastic, designed for durability in harsh environments.
This model can handle switching voltages of up to 240V AC and 24V DC.
The limit switch complies with RoHS standards.
It is widely used in automated manufacturing lines, safety facilities, conveyor controls, and other industrial automation systems.
