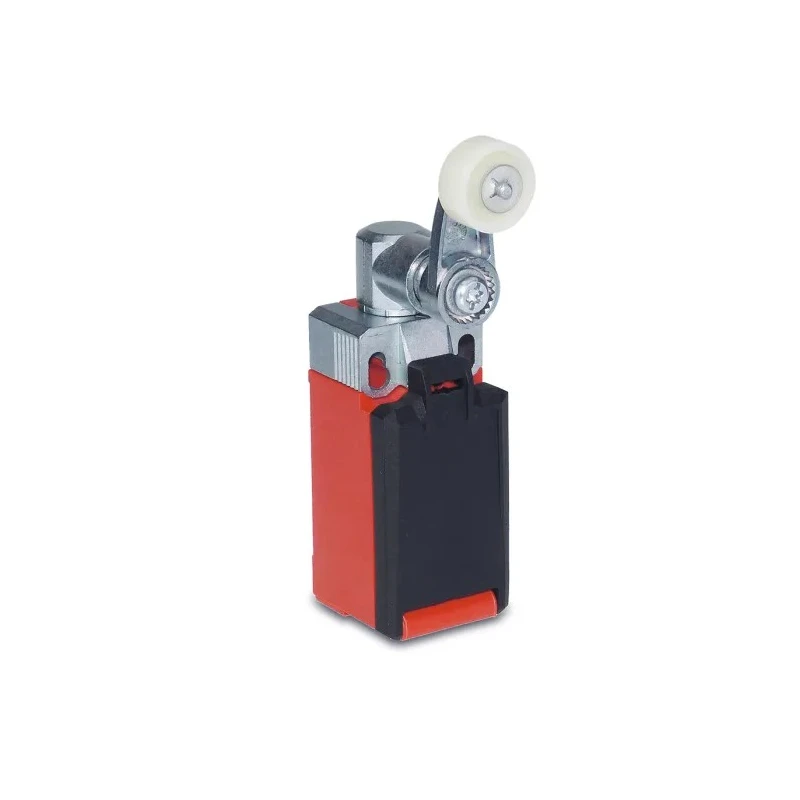

Bernstein AG IN65 Series Roller Lever Limit Switch, 1 NO/1 NC Contacts, IP66 IP67, Fibreglass Reinforced 6083000235
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Bernstein AG |
| Length | 31mm |
| Depth | 30.3mm |
| IP Rating | IP66, IP67 |
| Width | 108mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | IN65 |
| Maximum Operating Temperature | 75°C |
| Mounting Orientation | Screw |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Lever |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -30°C |
| Switching Current | 5A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Operating Force | 10N |
| Mechanical Life | 15000000Cycles |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
| Mechanical Service Life | up to 30 million switching cycles |
Key Features
- Suitable for industrial safety and position monitoring applications.
- Modular design with tool-free actuator adjustment and replacement.
- Robust construction with metal actuator locking and mounting clip.
- Operating temperature range from -30°C to 75°C.
- Supports switching current up to 5A at 24V DC and 240V AC.
- Mechanical life up to 30 million switching cycles for high durability.
- Mounting via screws with M20 conduit entry for secure installation.
- Slow-action contacts in a compact size with dimensions 108 x 31 x 30.3 mm (W x L x D).
Product Description
Bernstein AG 6083000235 IN65 Series Roller Lever Limit Switch is engineered for use in industrial automation, safety facilities, and position monitoring systems. Featuring a fibreglass reinforced thermoplastic housing combined with a metal actuator locking mechanism, this limit switch offers excellent robustness and durability. Its compact dimensions (108mm width, 31mm length, and 30.3mm depth) allow easy integration into tight spaces.
The device includes 1 normally open (NO) and 1 normally closed (NC) slow-action contacts rated for currents up to 5 amperes, suitable for switching voltages of 24V DC and 240V AC. The switch is designed to operate reliably within temperatures ranging from -30°C to 75°C, making it durable in varying industrial environments.
The modular design enables flexible installation options, including tool-free actuator turning and changing, plus adjustable actuator elements with eight 45-degree repositioning steps. A metal mounting clip and screw orientation provide secure and stable mounting, with a standard M20 conduit entry for electrical connections.
Designed for longevity, the mechanical life expectancy reaches up to 30 million switching cycles, supporting demanding industrial applications where reliability is critical. The product complies with RoHS standards and is manufactured in Hungary, ensuring quality and environmental safety compliance.
Suitable for industrial safety and position monitoring applications. Modular design with tool-free actuator adjustment and replacement. Robust metal actuator locking and mounting clip enhance durability. Operating temperature from -30°C to 75°C suits diverse environments.
5A switching current at 24V DC and 240V AC supports various loads. Mechanical service life up to 30 million switching cycles for high reliability. Compact dimensions allow installation in restricted spaces. M20 conduit entry and screw mounting ensure secure installation.
Explore the complete range of Limit Switches and automation components on EnvMart for industrial, manufacturing, and safety system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a switching current of up to 5A at both 24V DC and 240V AC.
The dimensions are 108mm in width, 31mm in length, and 30.3mm in depth.
It operates reliably within a temperature range of -30°C to 75°C.
It features 1 normally open (NO) and 1 normally closed (NC) slow-action contact configuration.
It is mounted via screws and includes a standard M20 conduit entry for secure installation.
The mechanical life can reach up to 30 million switching cycles, ensuring long-term reliability.
The housing is made from fibreglass reinforced thermoplastic, providing robustness.
Yes, it complies with RoHS standards for environmental safety.
It features a roller lever actuator type, which allows for flexible operation.
The operating force required is 10N.
It is manufactured in Hungary.
It is suitable for industrial safety and position monitoring applications.
