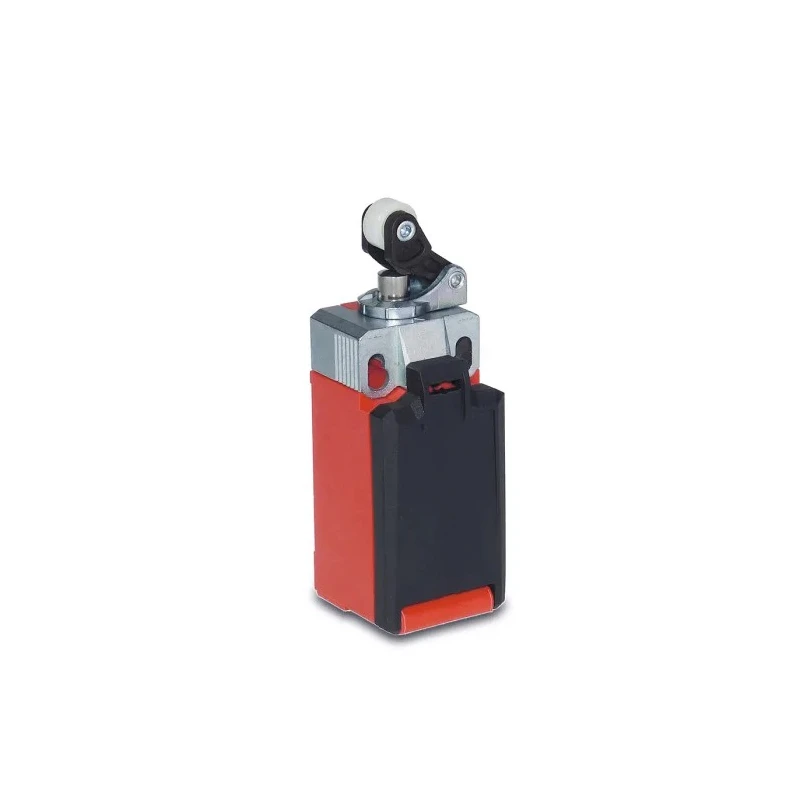

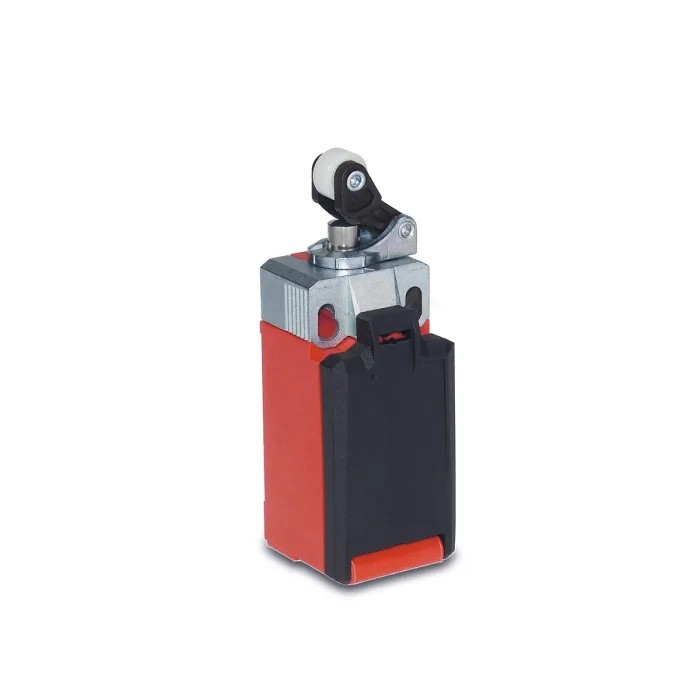

Bernstein AG IN65 Series Roller Lever Limit Switch, 1 NO/1 NC, IP67/IP66, Fibreglass Reinforced Thermoplastic 6083000222
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Bernstein AG |
| Length | 31mm |
| Depth | 30.3mm |
| IP Rating | IP67, IP66 |
| Width | 90mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | IN65 |
| Maximum Operating Temperature | 75°C |
| Mounting Orientation | Screw |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Lever |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -30°C |
| Switching Current | 5A |
| Terminal type | M20 |
| Standards/Approvals | RoHS |
| Operating Force | 10N |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
| Mechanical Service Life | up to 30 million switching cycles |
Key Features
- The switch features a fibreglass reinforced thermoplastic housing ensuring durability.
- Suitable for industrial and automation applications requiring position monitoring.
- Low operating temperature down to -30°C and max operating temperature up to 75°C ensure versatility.
- The device includes a mechanical life of up to 30 million switching cycles.
- Easy installation with screw mounting and M20 conduit entry for cable protection.
- Slow-action contact type ensures reliable switching performance at currents up to 5A.
- Supports switching voltages of 24V DC and 240V AC for flexible electrical compatibility.
- Features modular design and adjustable actuator elements allowing custom configurations.
Product Description
Bernstein AG 6083000222 IN65 Series Roller Lever Limit Switch is a high-quality position monitoring device designed for safety and industrial automation. This limit switch is housed in a fibreglass reinforced thermoplastic enclosure offering both sturdiness and corrosion resistance. It features 1 normally open (NO) and 1 normally closed (NC) slow-action contact, making it suitable for precise control applications with switching currents up to 5 amps.
The robust design includes a metal actuator locking mechanism and mounting clip for increased operational reliability. Its construction maintains outstanding performance under harsh conditions with an IP67 and IP66 ingress protection rating, protecting against dust and water ingress. The device can operate reliably in temperatures ranging from -30°C up to 75°C, making it suitable for varied industrial environments.
With a mechanical service life of up to 30 million switching cycles, this limit switch ensures longevity and durability. The modular design allows easy adaptation with multiple actuator options and adjustable lever positions to meet specific application needs. Installation is convenient with screw mounting and an M20 conduit entry for secure cable management.
The switch offers 1 NO/1 NC contact configuration for versatile operational control. Fibreglass reinforced thermoplastic housing provides a strong, resistant enclosure. Switching current is rated at 5A for AC and DC applications.
Mechanical life extends up to 30 million cycles, supporting long-term use. Operating temperature range from -30°C to 75°C accommodates diverse environments. Metal actuator locking and mounting clip enhance mechanical stability.
Modular design with adjustable actuator elements offers flexible configuration. IP67/IP66 rating ensures protection against dust and water ingress. M20 conduit entry allows secure and neat cable connection.
This limit switch is ideally suited for industrial, automation, manufacturing, and safety system applications requiring reliable position detection and robust switch performance. It combines economic advantages of plastic-bodied switches with the sturdiness typical of metal-bodied types, meeting demanding industrial use cases.
Discover more high-quality Limit Switches and automation components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The limit switch has an IP67 and IP66 ingress protection rating, ensuring it is protected against dust and water ingress.
It operates reliably in temperatures ranging from -30°C to 75°C, making it suitable for diverse industrial environments.
The device supports a switching current of up to 5A for both AC and DC applications.
This model features a roller lever actuator type, which allows for precise control in various applications.
It has a mechanical service life of up to 30 million switching cycles, ensuring longevity and durability.
The limit switch has a contact configuration of 1 normally open (NO) and 1 normally closed (NC).
The housing is made from fibreglass reinforced thermoplastic, providing sturdiness and corrosion resistance.
The dimensions are 90mm in width, 31mm in length, and 30.3mm in depth.
It supports screw mounting, making installation straightforward in various setups.
It features an M20 conduit entry for secure cable management and protection.
This model complies with RoHS standards, ensuring it meets environmental regulations.
It is ideally suited for industrial, automation, manufacturing, and safety system applications requiring reliable position detection.
