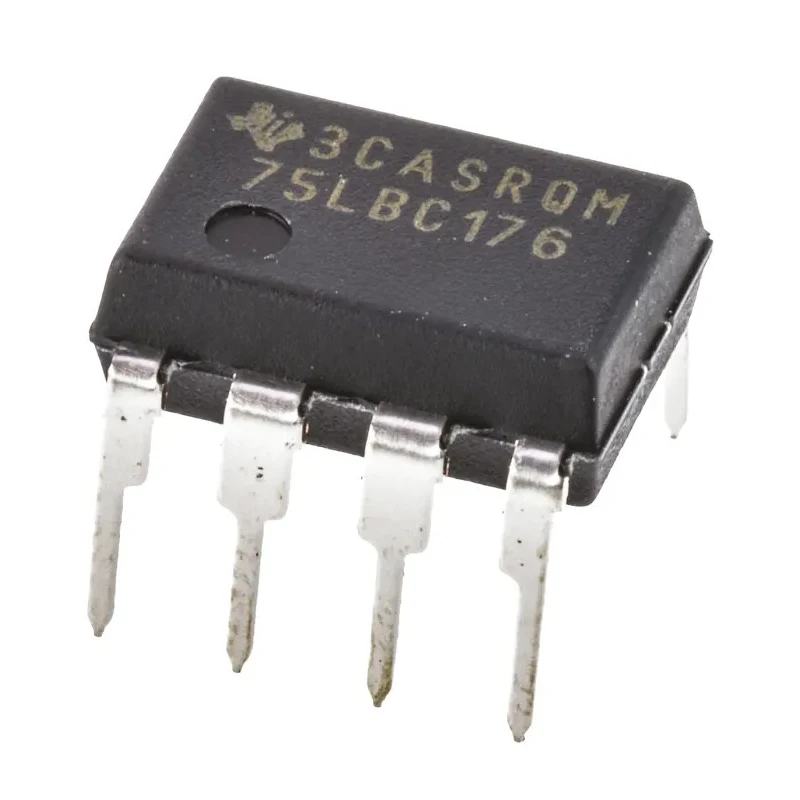

Texas Instruments Line Transceiver, Differential, Non-Inverting, Through Hole Mount, 8-Pin PDIP SN75LBC176P

Texas Instruments SN75LBC176P is a high-speed, differential Line Transceiver IC designed for bus transceiver applications requiring single channel communication. This device operates with a supply voltage range of 4.75V to 5.25V and features differential input and output. Its non-inverting architecture ensures signal integrity and reduces noise in data transmission.

Mounted in an 8-pin PDIP package, it is suitable for through-hole applications with compact dimensions measuring 10.16mm in length, 6.6mm in width, and 5.08mm in height, facilitating ease of installation on standard printed circuit boards. The transceiver has a maximum propagation delay time of 33 nanoseconds at the specified load, enabling high-speed data rates suitable for RS-485 and similar communication standards.

Operating temperature range from 0°C to 70°C makes it appropriate for a wide variety of industrial and commercial electronic environments. It complies with automotive standard AEC-Q100, underlining the component's high reliability for automotive and demanding applications.

The device supports a maximum high-level output current of -60mA and a maximum low-level output current of 60mA, providing strong output drive capabilities for signal transmission. It also features low supply current consumption at 1.75mA, optimizing power efficiency in electronic systems.

This line transceiver is ideal for industrial, commercial, and automotive electronic systems requiring dependable and high-speed interface IC functionality. It helps improve communication reliability in electronic circuits requiring differential signaling and robust electrical characteristics.

Operates at supply voltage range from 4.75V to 5.25V. Supports single channel bus transceiver functionality with differential signals. Maximum propagation delay time is 33 nanoseconds at specified load. Operating temperature rated from 0°C to 70°C ensuring reliability in standard environments.

Complies with automotive standard AEC-Q100 for enhanced quality assurance. Compact PDIP package with 10.16mm length, 6.6mm width, and 5.08mm height dimensions. Supply current typical value is 1.75mA for efficient power consumption.

Maximum high level output current of -60mA and maximum low level output current of 60mA for robust signal drive. Through-hole mount design ensures easy integration on standard PCBs. Explore the range of Texas Instruments line transceivers and interface ICs at EnvMart for reliable electronic component solutions.
