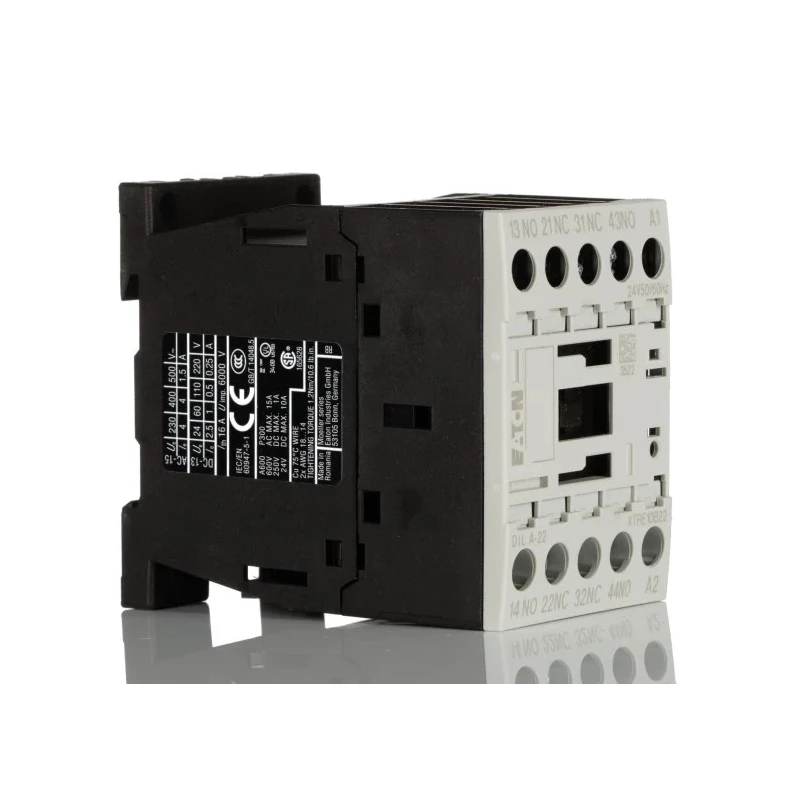

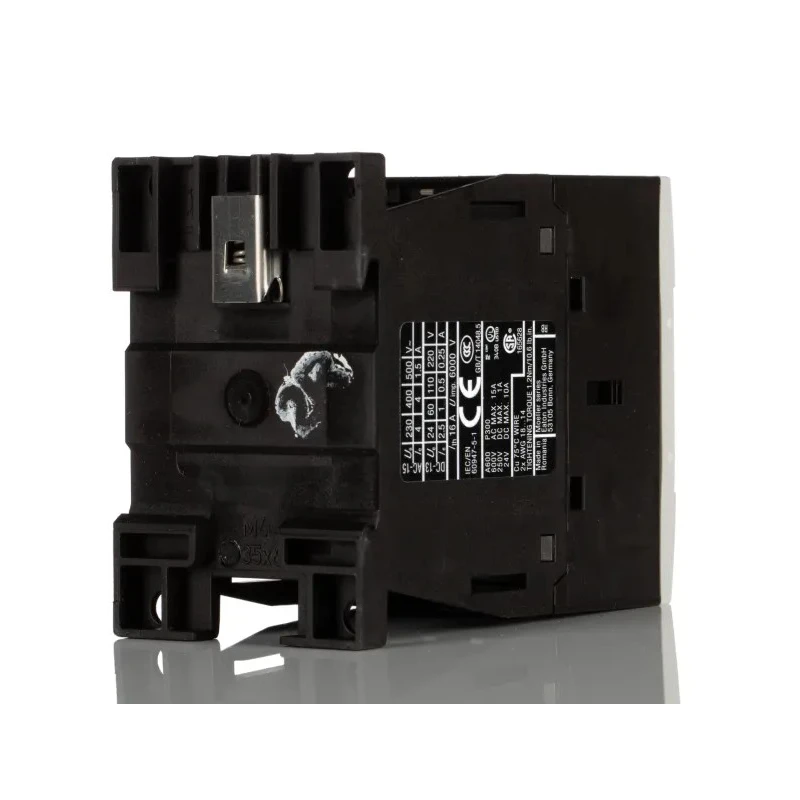

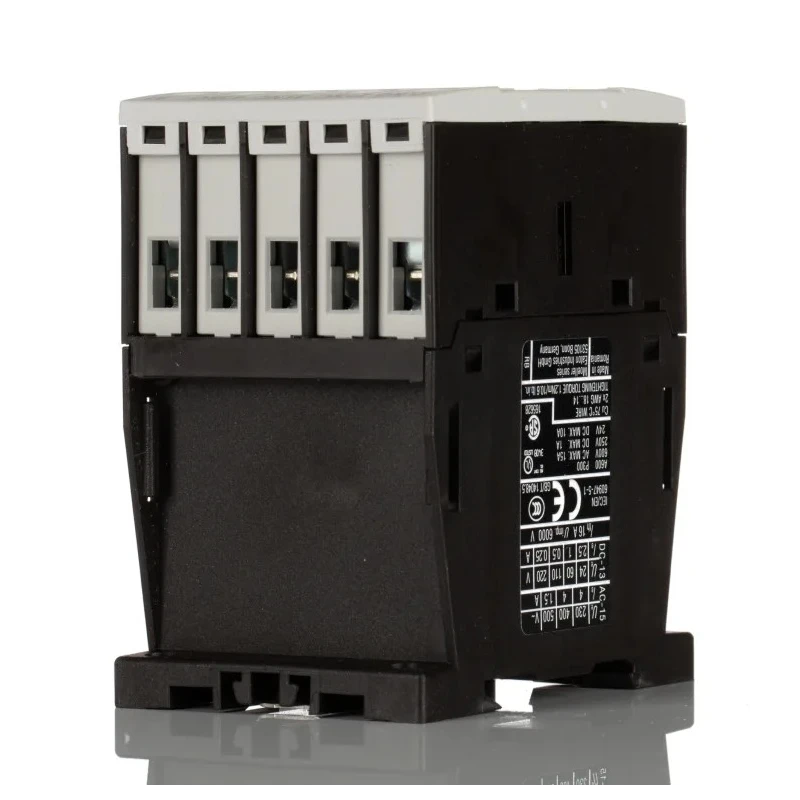

Eaton XT Overload Relay 2 NO/2 NC Contact, 6A Relay Contact Current, 3W Power Rating, 24V AC 276403 DILA-22(24V50/60HZ)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Length | 45mm |
| Model | 276403 DILA-22(24V50/60HZ) |
| Depth | 75mm |
| IP Rating | IP20 |
| Width | 68mm |
| Mount Type | DIN Rail |
| Series | XT |
| Power Rating | 3W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Standards/Approvals | CCC, ATEX, UL, IEC EN 60947, CSA, CE |
| Contact Voltage | 500V ac |
| Reset Method | Manual |
| Normal State Configuration | 2 NO/2 NC |
| Relay Contact Current | 6A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 4 |
| Control Voltage | 24V ac |
| Eaton Contactor, 24 V Coil, 4-Pole, 16 A, 1.4 W, 2 NO/ 2NCBrand | Eaton |
Key Features
- Rated contact current of 6A ensures reliable motor overload protection.
- Compact 4-pole design ideal for 3-phase industrial motor applications.
- Manual reset method offers straightforward operational control.
- DIN rail mounting simplifies installation and integration.
- Durable thermoplastic housing provides flame resistance for enhanced safety.
- Wide operating temperature range from -25°C to 60°C adapts to challenging environments.
- IP20 rating offers protection against solid objects greater than 12mm.
- 2 auxiliary contacts included for additional control circuit integration.
Product Description
Eaton 276403 DILA-22(24V50/60HZ) XT series overload relay delivers dependable motor overload protection with a relay contact current rating of 6A and power rating of 3W. Designed for use with 24V AC control voltage, this 4-pole device is optimized for 3-phase industrial motors.
Featuring a manual reset method and screw terminal type, the relay supports easy installation on DIN rails for rapid setup in automation and control systems. The flame-resistant thermoplastic housing enhances safety by stopping combustion promptly in case of fire.
With an operating temperature range from -25°C to 60°C, the relay performs reliably in diverse industrial environments. Its IP20 touch-proof rating permits resistance against solid intrusions larger than 12mm, protecting internal contacts. Two NO and two NC auxiliary contacts provide flexible control circuit functionality.
This Eaton XT miniature overload relay is ideal for light-duty loads including hoisting, packaging, heating, lighting, and automation. It supports both AC and DC supply voltages, adding versatility in industrial and commercial control applications.
Rated contact current of 6A ensures motor overload safety. Compact 4-pole design for 3-phase motor applications. Manual reset method for easy user control. DIN rail mount for tool-free installation. Flame-resistant thermoplastic housing for enhanced safety.
Operates within -25°C to 60°C temperature range. IP20 rating for protection against solid objects. Includes 2 auxiliary contacts for added control options. Screw terminal type for secure wiring. Suitable for both AC and DC supply voltages.
The Eaton XT series Overload Relay combines economy and environmental friendliness with technical reliability, making it a premium choice for industrial control, manufacturing, water treatment, and HVAC system applications. Explore more Eaton products and accessories on EnvMart for advanced automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a rated contact current of 6A, ensuring reliable motor overload protection.
This overload relay operates with a control voltage of 24V AC.
The power rating of this model is 3W.
It supports DIN rail mounting, which simplifies installation and integration into control systems.
The relay operates within a temperature range of -25°C to 60°C.
It has an IP20 rating, providing protection against solid objects larger than 12mm.
This overload relay includes two normally open (NO) and two normally closed (NC) auxiliary contacts.
It features a manual reset method, allowing for straightforward operational control.
The dimensions are 45mm in length, 68mm in width, and 75mm in depth.
It complies with several standards including CCC, ATEX, UL, IEC EN 60947, CSA, and CE.
It uses a screw terminal type for secure wiring connections.
This model is suitable for light-duty loads including hoisting, packaging, heating, lighting, and automation.
