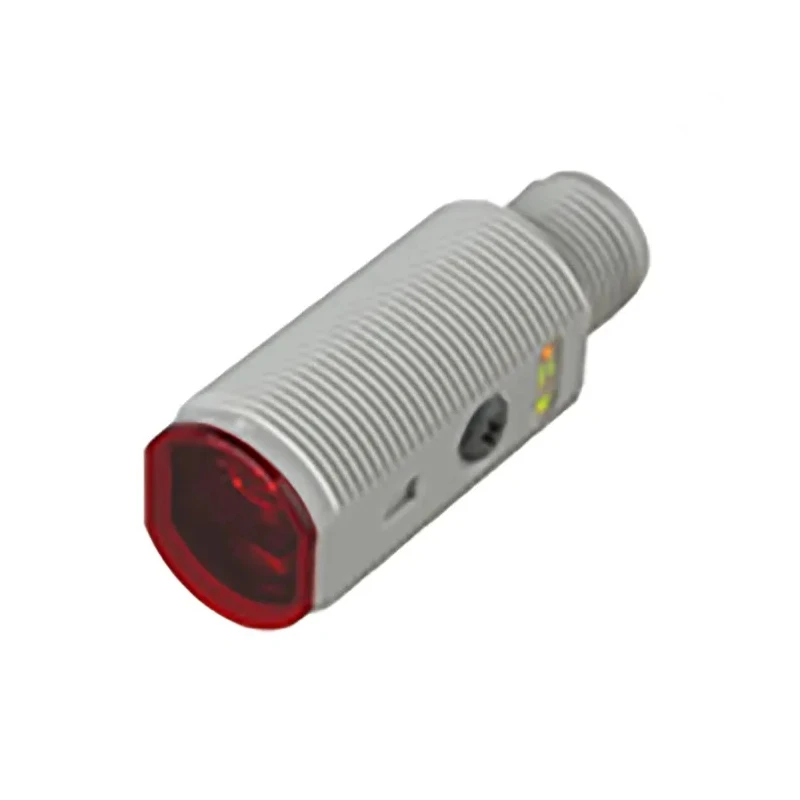

Carlo Gavazzi Through Beam Photoelectric Sensor Miniature, 20 m Detection Range, NPN Output, IP69K, IP67 PA18CAT20M1
Specifications
| Country of Origin | Lithuania |
|---|---|
| Output | 100 mA, NPN or PNP, N.O + N.C |
| Range | 20 m (Axial), 16 m (Radial) |
| Brand | Carlo Gavazzi |
| Response time | 1ms |
| Light Source | LED |
| Detection range | 20 m |
| Model | PA18CAT20M1 |
| IP Rating | IP69K, IP67 |
| Housing Material | ABS |
| Output type | NPN |
| Series | PA18 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25mA |
| DetectIon Type | Through Beam |
| Terminal type | M12 Connector |
| Protection | reverse polarity, short circuit and transients |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | UL, IEC, CSA |
| Sensor Style | Miniature |
Key Features
- Miniature sensor design for compact installation requirements.
- Through beam detection type for precise object sensing over long distances.
- NPN output type with M12 connector terminal.
- LED light source operating at 850 nm infrared wavelength.
- Operating voltage range from 10 to 30 V DC enhances compatibility.
- Maximum detection range up to 20 meters axially and 16 meters radially.
- Durable ABS housing material designed for industrial environments.
- Wide operating temperature range from -25°C to 60°C.
Product Description
Carlo Gavazzi PA18CAT20M1 Through Beam Photoelectric Sensor Miniature is a high-precision sensor with a 20 m detection range, designed for demanding industrial automation applications. Featuring a compact 18 mm cylindrical ABS housing, this sensor offers excellent size-to-performance ratio making it ideal for applications requiring small form factor without sacrificing sensitivity.
The sensor utilizes modulated infrared light (850 nm) and includes a potentiometer for sensitivity adjustment, ensuring versatility across various detection scenarios. It operates with a supply voltage of 10 to 30 V DC and provides an NPN output with a current rating of 100 mA, supporting both normally open and normally closed switching functions.
Engineered for rugged environments, the PA18CAT20M1 sensor is IP69K and IP67 rated, ensuring reliable performance even in harsh conditions including high-pressure steam cleaning. The sensor's protection features include resistance to reverse polarity, short circuits, and transients, enhancing operational safety and longevity.
With a fast response time of 1 ms and compliance with Ul, IEC, and CSA standards, this sensor is suitable for manufacturing automation, material handling, packaging, and process control in industries such as automotive, packaging, and robotics.
Miniature 18 mm cylindrical ABS housing. Through beam detection enabling sensing distances up to 20 m. Potentiometer adjustment for sensitivity tuning. Infrared LED light source at 850 nm wavelength. NPN output, 100 mA max current, NO and NC switching options.
Robust IP69K and IP67 ingress protection. Wide temperature range from -25°C to 60°C. Built-in electrical protections for durability. Compliance with industrial international safety standards.
This sensor is manufactured in Lithuania and comes ready to deploy in diverse industrial environments requiring reliable and precise object detection. It suits automation tasks in electrical, manufacturing, and process industries.
Explore the full range of Photoelectric Sensors and automation controls at EnvMart to complement your industrial setup with quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 20 meters axially and 16 meters radially.
It provides an NPN output with a maximum current rating of 100 mA, supporting both normally open and normally closed switching functions.
The operating voltage range for this sensor is from 10 to 30 V DC.
This model has an IP69K and IP67 ingress protection rating, ensuring reliable performance in harsh conditions.
The response time of this sensor is 1 millisecond.
It uses an LED light source operating at an infrared wavelength of 850 nm.
The housing material is made of ABS, designed for industrial environments.
The minimum operating temperature is -25°C and the maximum is 60°C.
Yes, it includes protections against reverse polarity, short circuits, and transients.
This sensor features an M12 connector terminal.
It is suitable for applications in manufacturing automation, material handling, packaging, and process control in industries such as automotive and robotics.
This sensor complies with UL, IEC, and CSA standards.
