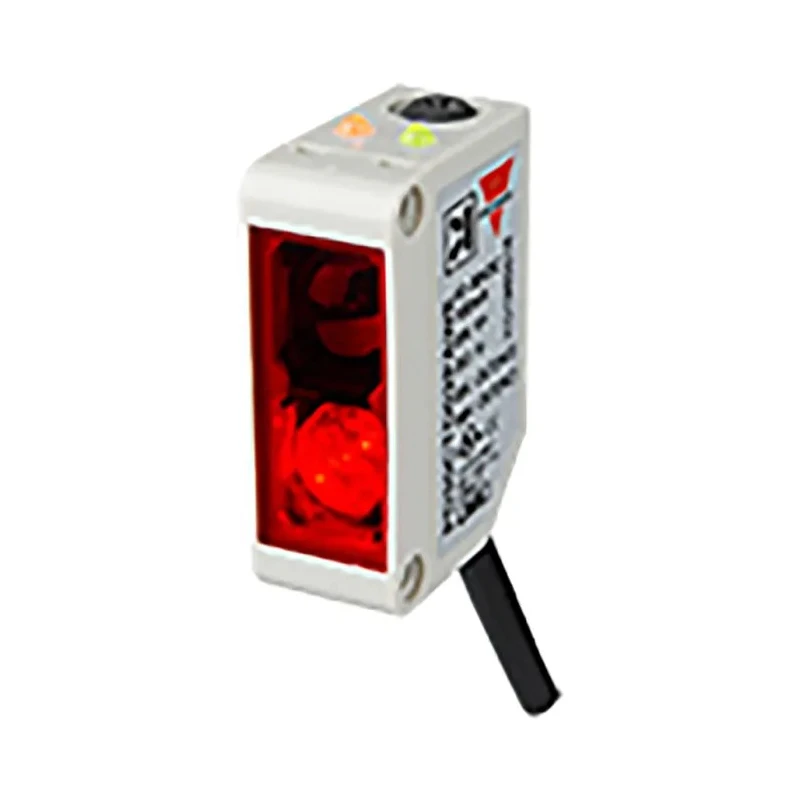

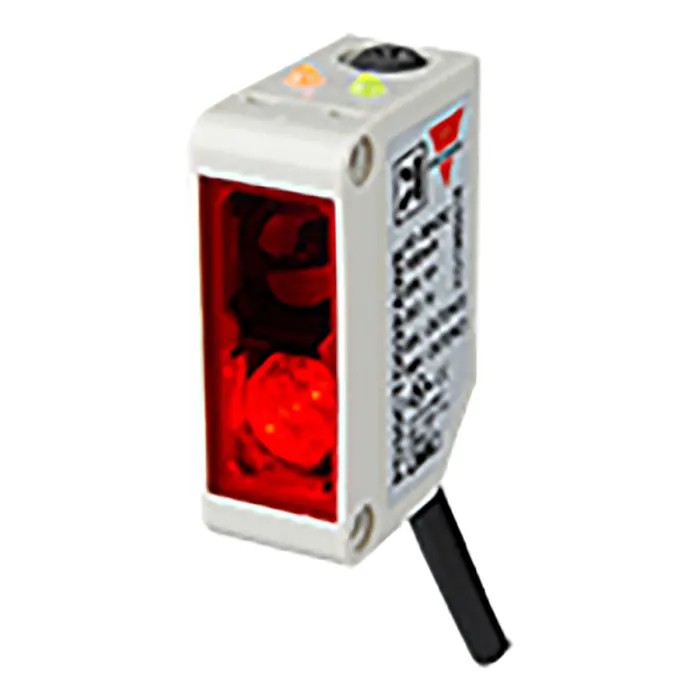

Carlo Gavazzi Diffuse Photoelectric Sensor Miniature Sensor 200 mm, PNP NO/NC Output, IP67
Specifications
| Country of Origin | Lithuania |
|---|---|
| Output | 100 mA, NPN or PNP preset |
| Range | 200 mm - extremely wide angle |
| Brand | Carlo Gavazzi |
| Response time | 0.5ms |
| Light Source | Infrared LED |
| Detection range | 200 mm |
| Model | IP67 |
| IP Rating | IP67 |
| Housing Material | ABS |
| Output type | PNP NO/NC |
| Series | PD30 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 25mA |
| DetectIon Type | Diffuse |
| Terminal type | Cable |
| Protection | reverse polarity, short circuit and transients |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | IEC, UL, CSA |
| Sensor Style | Miniature |
Key Features
- Compact sensor housing measuring 10 x 30 x 20 mm with reinforced PMMA/ABS material.
- Detection range of 200 mm with extremely wide angle infrared LED light source.
- PNP output type with preset normally open (NO) and normally closed (NC) switching functions.
- Sensitivity adjustable via top potentiometer for flexible application tuning.
- Operating voltage range of 10 to 30 V DC with maximum current 25 mA.
- Response time of 0.5 ms allowing fast detection in automation processes.
- Protection against reverse polarity, short circuits, and transient voltages enhancing reliability.
- IP67 rated for dust-tight and water immersion protection in harsh environments.
Product Description
Carlo Gavazzi PD30CTD02PAWE diffuse photoelectric sensor is a miniature sensor optimized for industrial and automation applications requiring reliable detection at distances up to 200 mm. This sensor features a compact reinforced PMMA/ABS housing measuring 10 x 30 x 20 mm, ensuring ruggedness and durability in demanding environments.
The sensor utilizes a highly modulated infrared LED light source at 850 nm wavelength, providing an extremely wide angle detection capability. Its PNP output with preset normally open (NO) and normally closed (NC) functions ensures easy integration with various control systems. Sensitivity is adjustable through a top potentiometer, granting flexibility for diverse operating conditions.
Operating on a supply voltage between 10 to 30 V DC and able to handle up to 25 mA current, the PD30CTD02PAWE delivers a fast response time of 0.5 milliseconds, making it suitable for high-speed automation processes.
Safety and reliability features include protection against reverse polarity, short circuits, and transient voltages, complemented by excellent electromagnetic compatibility (EMC) performance. The sensor is IP67 rated, offering complete protection against dust ingress and water immersion, suitable for harsh industrial environments.
This sensor series is ideal for detecting printed circuit boards (PCBs) even when large holes are present in the plates, making it a valuable component in electronics manufacturing and assembly lines. Its miniature size allows installation in tight spaces without compromising performance.
Compact reinforced PMMA/ABS housing for durability. Infrared 850 nm light source with wide detection angle. PNP NO/NC output with adjustable sensitivity. Operating voltage 10-30 V DC and 25 mA maximum current. Fast 0.5 ms response time for automation efficiency.
Robust protection including reverse polarity and short circuits. IP67 rating for dust and water resistance. Excellent EMC performance for stable operation. Effective for PCB detection in manufacturing applications.
The Carlo Gavazzi PD30CTD02PAWE diffuse Photoelectric Sensor is a reliable choice for electronic, industrial automation, and control gear applications requiring precise and durable sensing solutions. Browse the EnvMart catalog for more advanced sensors and control devices from Carlo Gavazzi and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is 200 mm, utilizing an extremely wide angle infrared LED light source for effective sensing.
It features a PNP output type with preset normally open (NO) and normally closed (NC) switching functions, allowing for versatile integration into control systems.
The sensor has a compact housing measuring 10 x 30 x 20 mm, making it suitable for installation in tight spaces.
This sensor has a fast response time of 0.5 milliseconds, which is beneficial for high-speed automation processes.
It operates within a voltage range of 10 to 30 V DC and can handle a maximum current of 25 mA.
The housing is made from reinforced PMMA/ABS material, providing durability in demanding environments.
It includes protection against reverse polarity, short circuits, and transient voltages, enhancing its reliability in various applications.
The sensor is rated IP67, providing complete protection against dust ingress and water immersion, suitable for harsh industrial environments.
The sensor can operate in temperatures ranging from -25°C to 60°C, making it versatile for different environments.
Sensitivity can be adjusted via a top potentiometer, allowing for flexible tuning based on application requirements.
It complies with IEC, UL, and CSA standards, ensuring it meets relevant safety and performance criteria.
This model utilizes diffuse detection, making it effective for various sensing applications, including electronics manufacturing.
