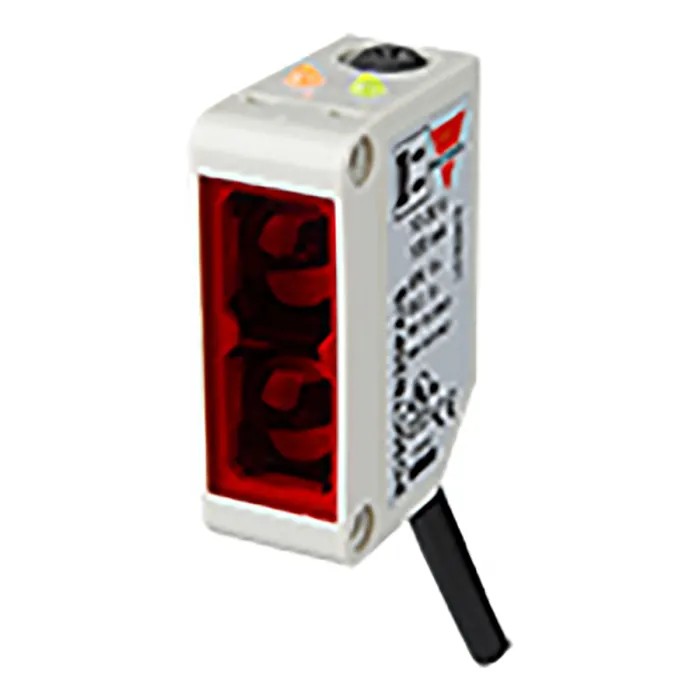

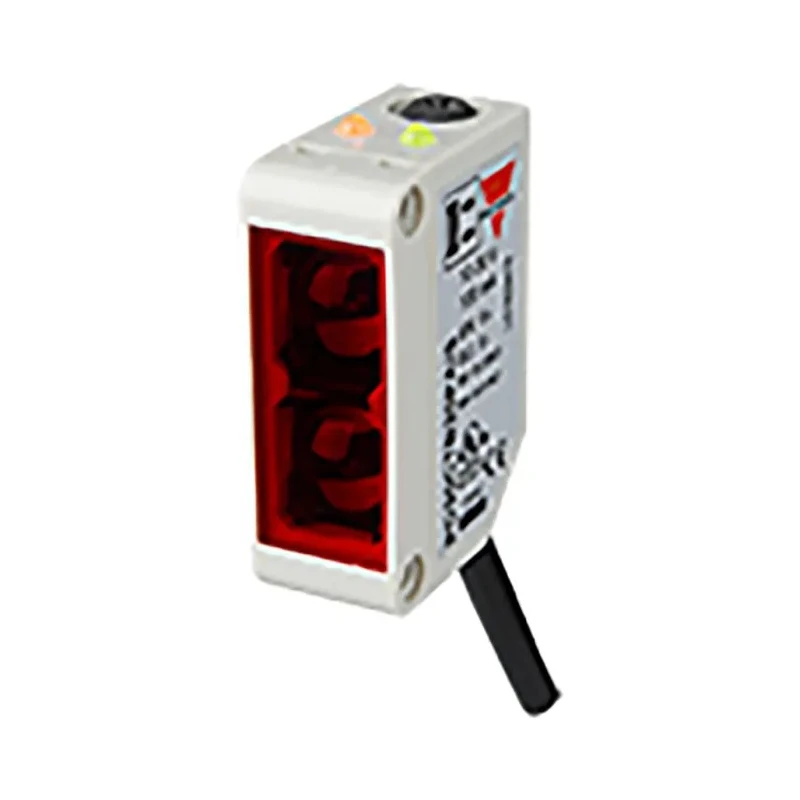

Carlo Gavazzi Diffuse Photoelectric Sensor Miniature Sensor 200 mm PNP NO/NC IP67
Specifications
| Country of Origin | Lithuania |
|---|---|
| Output | 100 mA, NPN or PNP preset |
| Brand | Carlo Gavazzi |
| Response time | 1ms |
| Light Source | Infrared LED |
| Detection range | 200 mm |
| Model | IP67 |
| IP Rating | IP67 |
| Housing Material | ABS |
| Output type | PNP NO/NC |
| Series | PD30 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 40mA |
| DetectIon Type | Diffuse |
| Terminal type | Cable |
| Protection | reverse polarity, short circuit and transients |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CSA, IEC, UL |
| Sensor Style | Miniature |
Key Features
- Compact sensor with reinforced PMMA/ABS housing measuring 10 x 30 x 20 mm.
- Operates on supply voltage range of 10 to 30 V DC with maximum current of 40 mA.
- Features infrared LED light source at 850 nm wavelength for accurate diffuse detection.
- Equipped with potentiometer for sensitivity adjustment to suit varied applications.
- Output type preset with NPN or PNP options including normally open and normally closed functions.
- Protection against reverse polarity, short circuits, and electrical transients included.
- Fast response time of 1 millisecond enhances reliable automation performance.
- Designed for industrial applications requiring high accuracy and miniature form factor.
Product Description
Carlo Gavazzi PD30CTB20PAIS Diffuse Photoelectric Sensor is a miniature sensor designed for precise detection over a 200 mm range. Housed in a compact 10 x 30 x 20 mm reinforced PMMA and ABS enclosure, it is suitable for industrial automation and control applications requiring high accuracy in a small footprint.
The sensor utilizes a modulated infrared LED light source with an 850 nm wavelength for diffuse sensing. It operates with a supply voltage from 10 to 30 V DC, drawing a maximum current of 40 mA, and features an adjustable sensitivity potentiometer to optimize detection performance in varying conditions.
The output type is preset to PNP with normally open and normally closed switching functions, capable of handling up to 100 mA. The sensor incorporates protection against reverse polarity, short circuit, and transients, ensuring durability and reliable operation in harsh industrial environments. It offers a rapid 1 ms response time, facilitating efficient automation cycles.
Certification to CSA, IEC, and UL standards guarantees product safety and quality. This sensor is ideal for applications in automation, manufacturing, laboratory control systems, and other industrial processes that demand compact and high-performance photoelectric sensing.
Compact and sturdy PMMA/ABS housing measuring 10 x 30 x 20 mm. Diffuse detection with 200 mm range using modulated infrared LED at 850 nm. Supply voltage: 10-30 V DC; Max current: 40 mA. Output: PNP preset with normally open/normally closed switching; 100 mA output current.
Sensitivity adjustable via built-in potentiometer. Protection from reverse polarity, short circuit, and transients. Fast response time of 1 millisecond for reliable automation. Certified to meet CSA, IEC, and UL standards.
Applications include industrial automation, manufacturing, and control systems. Country of origin: Lithuania. Explore the full range of Sensors and Photoelectric Sensors on EnvMart for industrial, laboratory, and automation solution needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this model is 200 mm, utilizing diffuse sensing technology with an infrared LED light source.
It operates on a supply voltage range of 10 to 30 V DC.
The output type is preset to PNP, with options for normally open and normally closed switching functions.
The maximum current rating for this model is 40 mA.
The housing is made from reinforced PMMA and ABS materials, providing a compact and sturdy design.
It features a fast response time of 1 millisecond, enhancing automation performance.
The sensor can operate within a temperature range of -25°C to 60°C.
It is certified to meet CSA, IEC, and UL standards, ensuring product safety and quality.
The sensitivity can be adjusted via a built-in potentiometer, allowing optimization for various applications.
It includes protection against reverse polarity, short circuits, and electrical transients.
The dimensions of this unit are 10 x 30 x 20 mm, making it compact for various applications.
It is suitable for industrial automation, manufacturing, and control systems that require precise detection.
