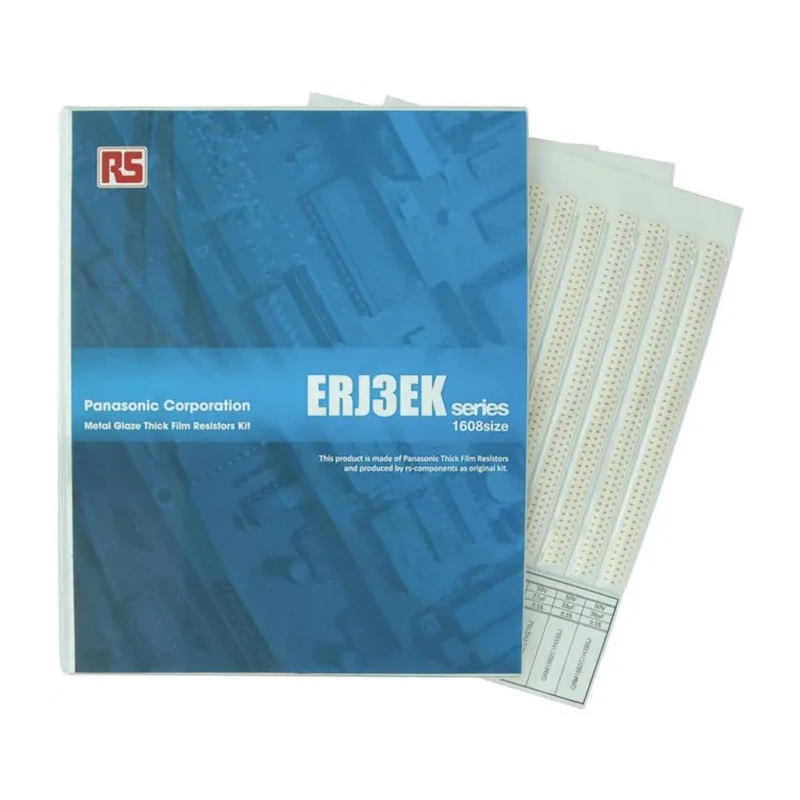

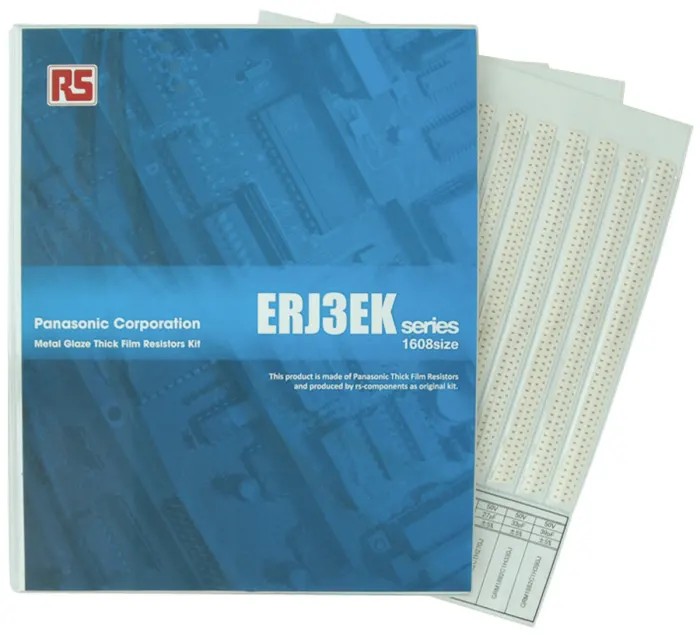

Panasonic ERJ 3EK Thick Film Surface Mount Resistor Kit 122 Values, 10 Ω to 1 MΩ, 0.1W Power Rating, AEC-Q200 ERJ3EK-KIT
Specifications
| Country of Origin | Japan |
|---|---|
| Resistance Range | 10 Ω → 1 MΩ |
| Brand | Panasonic |
| Operating Temperature | -55 to +155°C |
| Model | ERJ3EK-KIT |
| Technology | Thick Film |
| Mount Type | Surface |
| Series | ERJ 3EK |
| Temperature Coefficient | ±100 ppm |
| Maximum Voltage | 75 V |
| Resistance Tolerance | ±1 % |
| Kit Type | Resistor Kit |
| Standards/Approvals | MSL, RoHS, JDEC-STD-033, REACH |
| Automotive Standard | AEC-Q200 |
| Number of Values | 122 |
| Number of Pieces per Value | 12200 |
| Maximum Power Rating | 0.1W |
| Total Number of Pieces | 122 |
| Resistor range | 10Ω to 1MΩ plus a jumper |
| Maximum Wattage | 0.1 W |
Key Features
- Includes 122 resistor values suitable for surface mount applications.
- Resistance range spans from 10 Ω to 1 MΩ with ±1% tolerance.
- Maximum power rating per resistor is 0.1 W with a maximum voltage of 75 V.
- AEC-Q200 automotive standard compliant for reliability in automotive electronics.
- Designed using thick film technology providing stable performance.
- Operating temperature range from -55°C to +155°C for harsh environments.
- Temperature coefficient of ±100 ppm ensures accuracy over temperature variations.
- Kit contains 12,200 pieces total, 100 pieces per resistor value for extensive prototyping needs.
Product Description
Panasonic ERJ3EK-KIT is a comprehensive thick film surface mount resistor kit featuring 122 precision resistor values from 10 Ω to 1 MΩ, ideal for electronic component prototyping and repairs.
This resistor kit uses thick film technology to provide stability and consistent performance suitable for automotive and industrial applications. All resistors meet the rigorous AEC-Q200 automotive qualification standard, ensuring robust operation in demanding environments.
The resistors have a power rating of 0.1 W per component and a maximum voltage rating of 75 V, suitable for low power electronic circuits. Their resistance tolerance of ±1% and temperature coefficient of ±100 ppm support accurate resistance values over wide temperature ranges from -55°C to +155°C.
The kit includes 12,200 pieces total, with 100 pieces per each of the 122 resistor values, facilitating large-scale prototyping or repair operations without frequent replenishment. The resistors are surface mount type, ideal for compact, high-density PCB designs.
These precision thick film resistors come with important industrial certifications such as MSL, RoHS compliance, JDEC-STD-033, and REACH standards, further making them suitable for environmentally conscious manufacturing.
Includes 122 resistor values suitable for surface mount applications. Resistance range spans from 10 Ω to 1 MΩ with ±1% tolerance. Maximum power rating per resistor is 0.1 W with a maximum voltage of 75 V. AEC-Q200 automotive standard compliant for reliability in automotive electronics.
Designed using thick film technology providing stable performance. Operating temperature range from -55°C to +155°C for harsh environments. Temperature coefficient of ±100 ppm ensures accuracy over temperature variations.
Kit contains 12,200 pieces total, 100 pieces per resistor value for extensive prototyping needs.
This Panasonic ERJ3EK-KIT resistor set is ideal for industrial, automotive, laboratory, and manufacturing electronics assembly and repair applications. It provides dependable, precision passive components for surface mount technology developments.
Explore more Resistor Kits and electronic components in EnvMart’s specialized catalog to suit your production and prototyping requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The resistance range spans from 10 Ω to 1 MΩ with a tolerance of ±1%.
Each resistor has a maximum power rating of 0.1 W.
The operating temperature range is from -55°C to +155°C.
The kit includes a total of 122 resistor values.
The maximum voltage rating per resistor is 75 V.
These resistors are designed using thick film technology, which provides stable performance.
They comply with the AEC-Q200 automotive standard, ensuring reliability in automotive electronics.
There are 100 pieces per resistor value, totaling 12,200 pieces in the kit.
The resistors are compliant with MSL, RoHS, JDEC-STD-033, and REACH standards.
The temperature coefficient is ±100 ppm, ensuring accuracy over temperature variations.
These resistors are surface mount type, suitable for compact PCB designs.
This resistor kit is suitable for industrial, automotive, laboratory, and manufacturing electronics assembly and repair applications.
