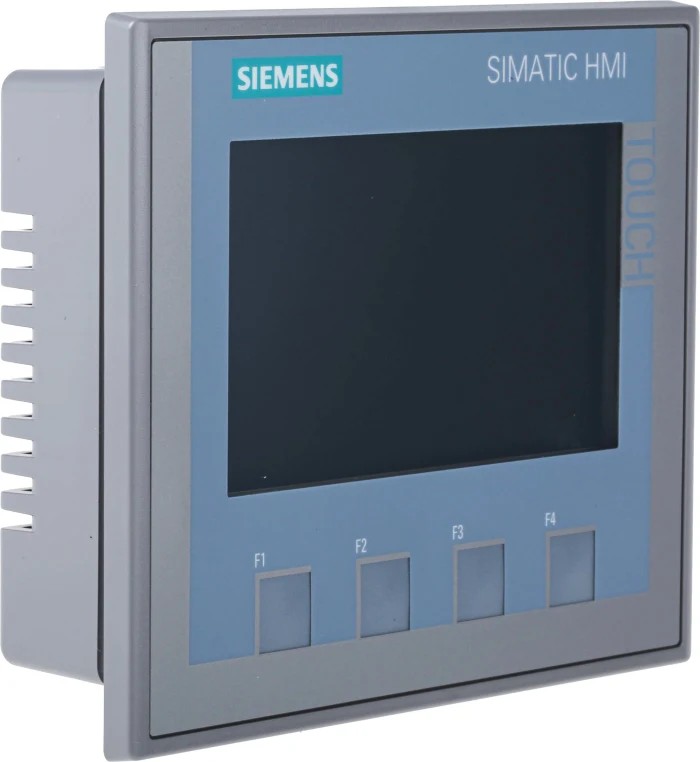

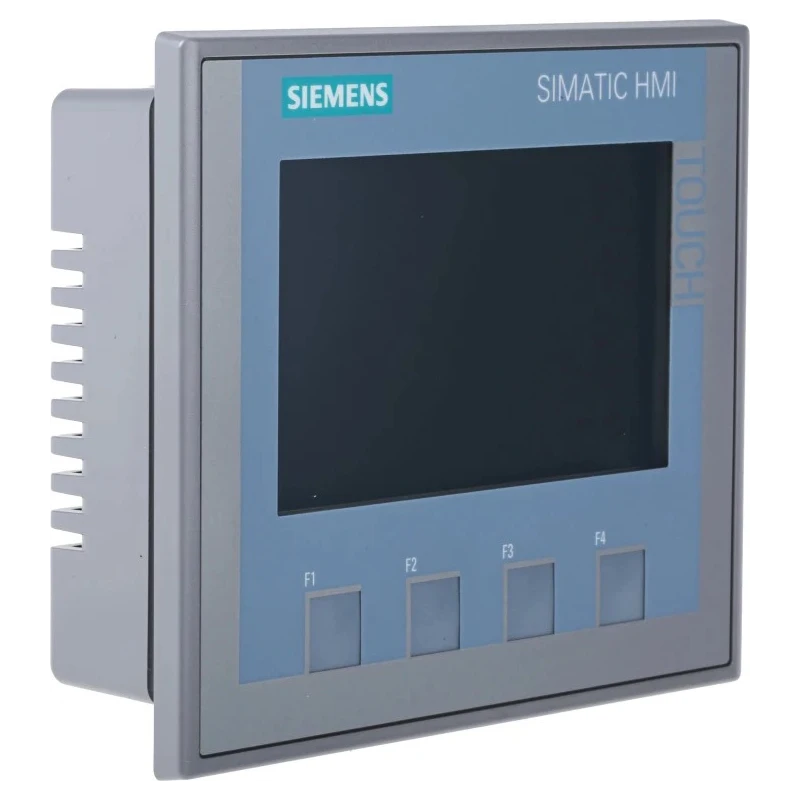

Siemens SIMATIC Series Basic HMI Panel, 109.22 mm Diagonal TFT Display, 480 x 272 Pixel, Ethernet, IP65, ARM Processor KTP400

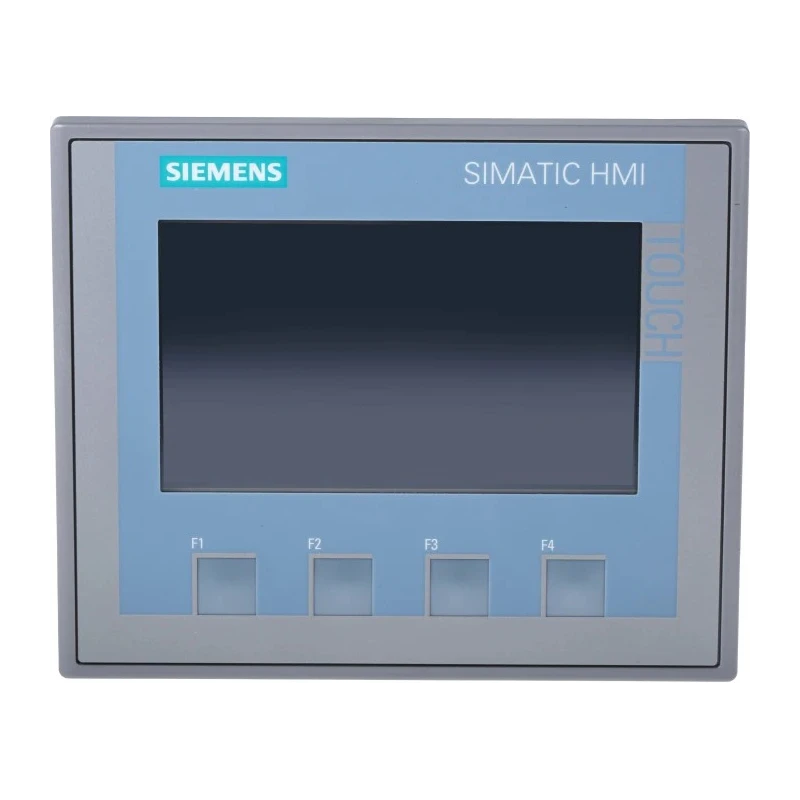

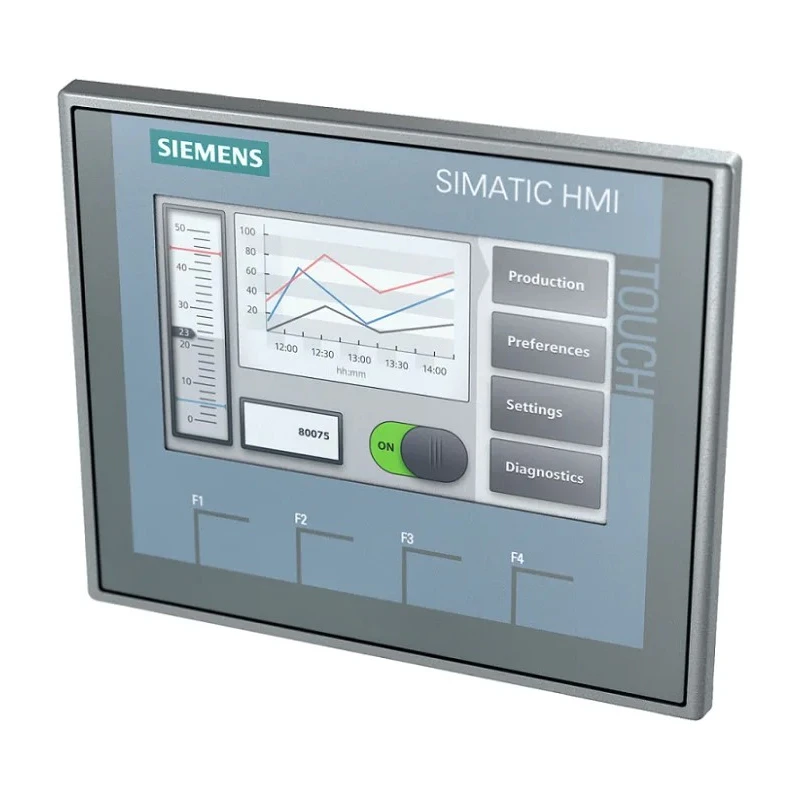

Siemens KTP400 SIMATIC Series HMI Panel is designed for industrial automation with a 109.22 mm (4.3-inch) diagonal TFT display providing a resolution of 480 x 272 pixels. Powered by an ARM processor, this panel delivers efficient and reliable performance for automation control and monitoring applications.

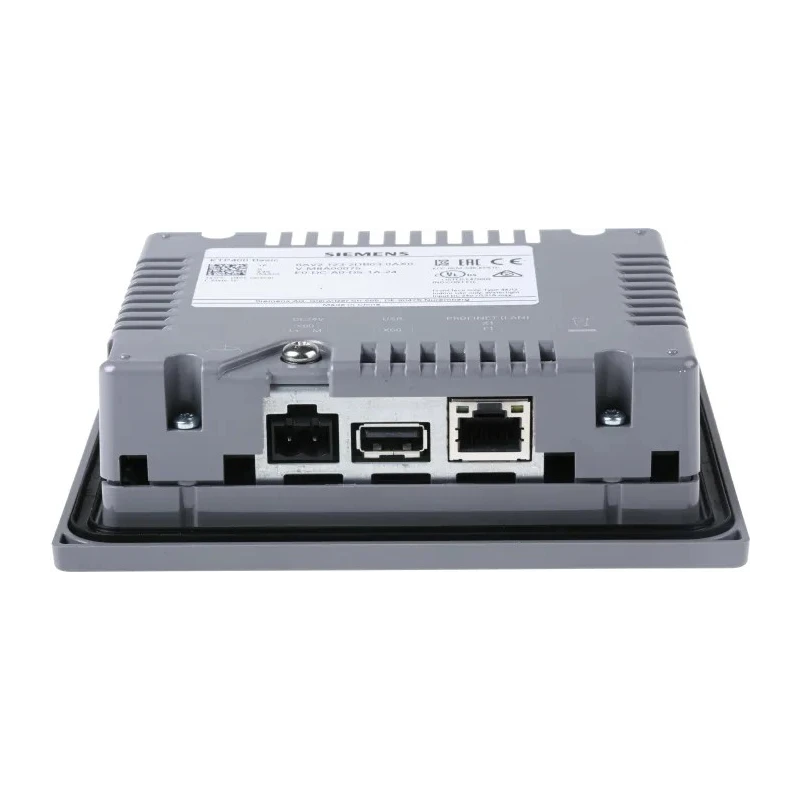

The device features a PROFINET Ethernet interface ensuring dependable network connectivity. Its backlit display guarantees clarity under different lighting conditions, and the IP65 rating ensures durability against dust and water ingress in harsh environments. Operating on a 24V DC supply, it allows flexible integration within a variety of industrial systems.

The panel supports up to 10 online/runtime languages to accommodate global applications and enables manual data backup and restoration using USB memory for user data management. The backlighting system has a mean time between failures (MTBF) of about 20,000 hours at 25°C, ensuring extended operational life.

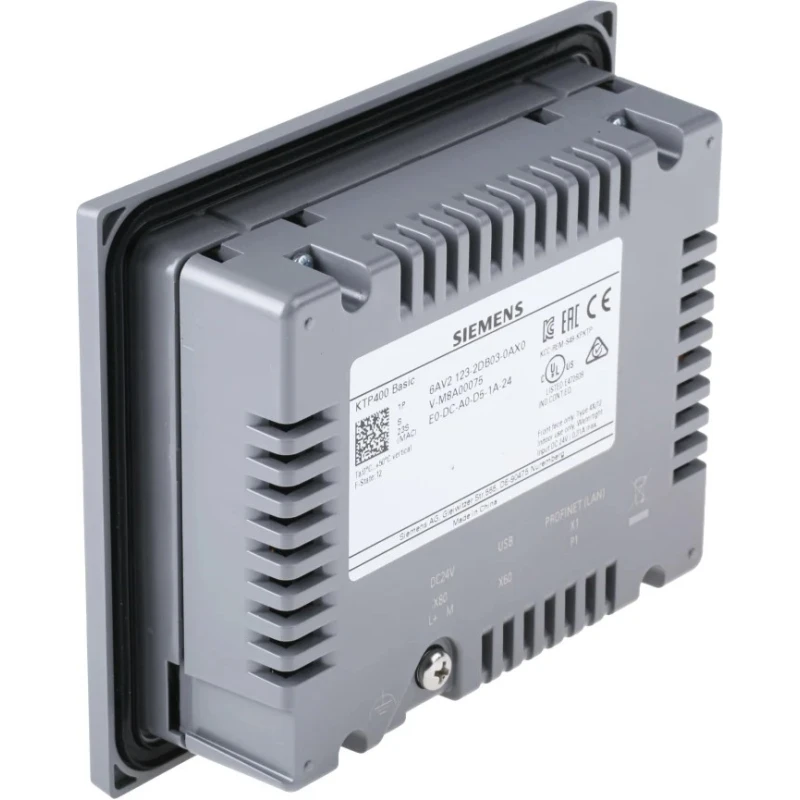

Certifications include cULus, CE, KC, RCM, and ATEX hazardous area certification, confirming compliance with industrial safety standards. Its compact dimensions of 140 mm length, 116 mm width, and 33 mm depth together with an IP65 protection level make it suitable for demanding industrial environments.

Typical applications include integration in industrial automation control systems, process monitoring in manufacturing settings, and environments requiring continuous data feedback to optimize operational efficiency.

Equipped with an ARM processor delivering effective performance. Features PROFINET Ethernet interface for reliable network communication. Backlit display enhances visibility in varied lighting conditions. IP65 rated for robust protection in challenging environments.

Operates on a 24V DC power supply for versatile applications. Supports up to 10 online/runtime languages for diverse user accessibility. Allows manual data backup and restoration via USB memory. Backlighting has an MTBF of approximately 20,000 hours at 25°C for long-lasting operation.

Certified with standards including cULus, CE, KC, RCM and hazardous area rated ATEX. Designed for industrial automation, monitoring manufacturing processes, and continuous data feedback. Explore Siemens HMI Panels and related products for industrial automation solutions at EnvMart.
