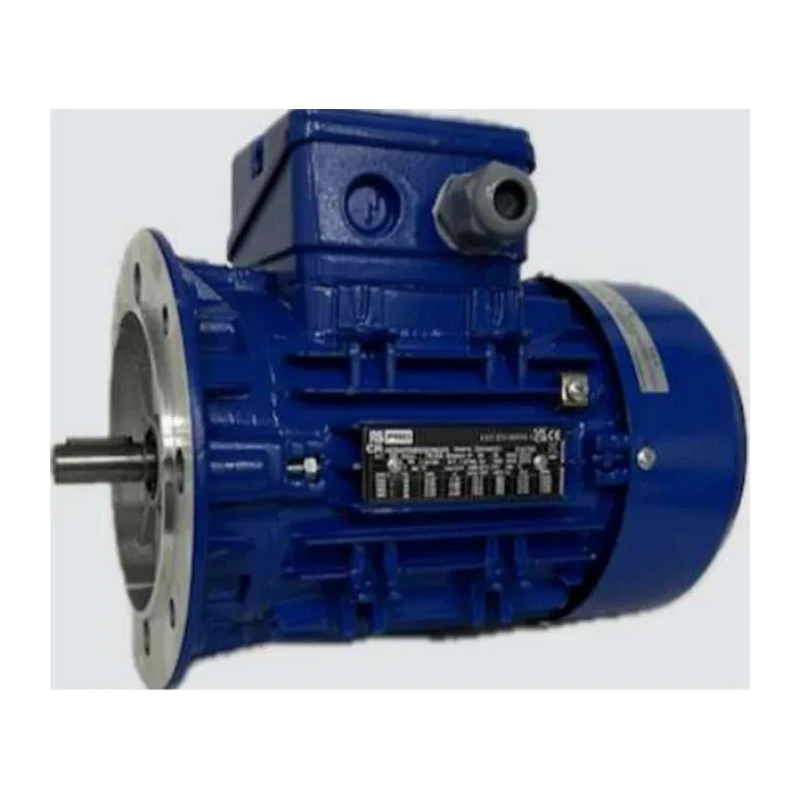

RS PRO 3 Phase Squirrel Cage AC Motor 5.5 kW IE3 Efficiency Class 400V 4-Pole Flange Mounting AAP132S4A 187-9886
Specifications
| Country of Origin | Turkey |
|---|---|
| Brand | RS PRO |
| Material | Aluminium |
| Length | 375mm |
| Model | 187-9886 |
| Depth | 343.5mm |
| Width | 343.5mm |
| Mount Type | Flange |
| Current Rating | 11.5A |
| Series | RS PRO |
| Power Rating | 5.5kW |
| Sub Type | Squirrel Cage Motor |
| Output Speed | 1465rpm |
| Shaft Diameter | 38mm |
| Shaft Length | 80mm |
| Efficiency Class | IE3 |
| Number of Phases | 3 |
| Supply Voltage | 400V |
| Bearing Type | Deep Groove |
| Number of Poles | 4 |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 35.8Nm |
Key Features
- This induction motor has a 4-pole design ensuring efficient and reliable operation.
- Constructed with aluminium for lightweight and corrosion resistance.
- Equipped with SKF, FAG, NSK, NTN deep groove bearings for durability.
- The motor has a shaft diameter of 38mm and shaft length of 80mm for versatile mounting.
- Suitable for applications such as pumps, blowers, fans, gearboxes, machine tools, and conveyor belts.
- It complies with RoHS standards and has IP55 protection rating, making it robust for industrial use.
- Designed with oil seals on both ends and earthing terminals for safety and maintenance ease.
Product Description
RS PRO AAP132S4A is a 3 Phase Squirrel Cage Induction AC Motor rated at 5.5 kW power, designed with IE3 high-efficiency standards and operating at 400V supply voltage. It features a 4-pole configuration delivering an output speed of 1465 rpm, making it an excellent choice for diverse industrial machinery requiring reliable and low-maintenance power solutions.
The motor is manufactured with an aluminium body, ensuring a lightweight design paired with excellent corrosion resistance. Engineered for robustness, it comes with frame sizes 63 - 160 and reinforced bearing housings for longevity.
Key design elements include SKF, FAG, NSK, NTN deep groove bearings with C3 shielding for enhanced performance under load. Additionally, oil seals are fitted at both ends to protect against contaminants, and the motor is inverter rated to support variable frequency drives.
The motor’s shaft has a 38 mm diameter and 80 mm length, and the motor uses flange mounting type, facilitating straightforward installation and adaptability to various industrial setups.
This product complies with IEC 60034 standards and RoHS requirements, ensuring environmental compliance and operational safety. The IP55 protection class safeguards the motor from dust and water ingress, suitable for harsh industrial environments.
Typical applications for this motor include pumps, blowers, fans, gearboxes, conveyor belts, and various machine tools commonly found in manufacturing, HVAC, water treatment, and agricultural industries.
This motor has two earthing terminals and is designed with shaft drilled and tapped at the NDE end for accessory mounting flexibility. The motor series 'RS PRO' ensures quality and reliability for industrial automation needs.
Choose RS PRO AAP132S4A for a durable, efficient, and versatile AC motor solution optimized for industrial performance and longevity. Explore more AC Motors and industrial products at EnvMart for your manufacturing and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 5.5 kW, making it suitable for various industrial applications.
It operates at a supply voltage of 400V, which is standard for many industrial environments.
This motor is rated with an IE3 efficiency class, indicating high energy efficiency standards.
The output speed is 1465 rpm, suitable for a variety of mechanical applications.
It is equipped with deep groove bearings from brands such as SKF, FAG, NSK, and NTN, enhancing its performance and durability.
The motor has dimensions of 375 mm in length, 343.5 mm in width, and 343.5 mm in depth.
The shaft diameter is 38 mm and the shaft length is 80 mm, allowing for versatile mounting options.
This unit uses flange mounting, facilitating straightforward installation in various setups.
It is suitable for applications such as pumps, blowers, fans, gearboxes, and conveyor belts in industrial settings.
Yes, it complies with RoHS standards and IEC 60034 standards, ensuring environmental and operational safety.
The motor has an IP55 protection rating, safeguarding it against dust and water ingress in harsh environments.
The maximum output torque is 35.8 Nm, suitable for driving various industrial machinery.
