Microchip Series Push Pull Output Temperature Sensor, Surface Mount, Serial-2 Wire Interface, ±6°C Accuracy MCP96RL00

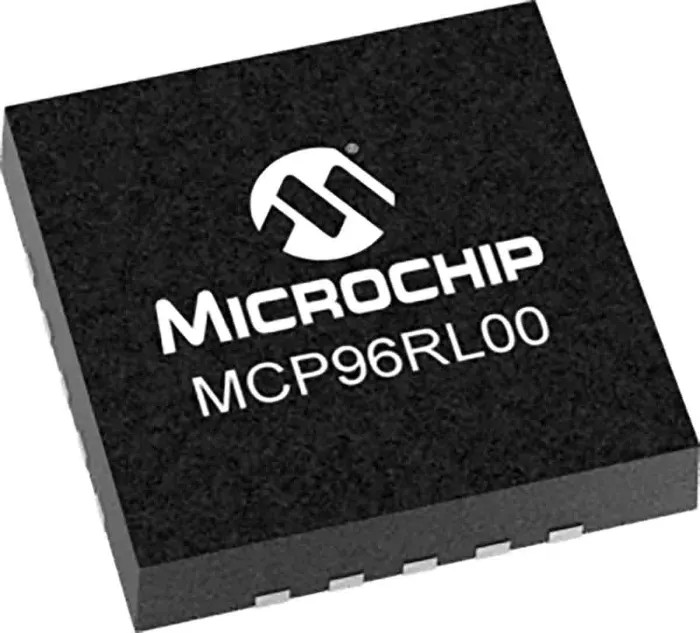

Microchip MCP96RL00 series push pull output temperature sensor MCP96RL00 is a compact surface mount device housed in a 20-lead MQFN package measuring 5 mm length and width with a height of 950 μm. Designed to provide thermocouple electromotive force (EMF) conversion to temperature with integrated cold-junction compensation, it supports thermocouple types K, J, T, N, S, E, B, and R for versatile temperature sensing applications.

The sensor features a serial 2-wire interface compatible with I2C running at 100 kHz, allowing communication with up to eight devices on the same bus. It operates over a supply voltage range from 2.7 V to 5.5 V with a typical operating current of 300 μA and a very low shutdown current of 2 μA, making it suitable for low power embedded systems.

The MCP96RL00 sensor offers ±6°C accuracy in temperature measurement with a measurement resolution of ±0.0625°C (typical) enabling precise temperature detection. It includes four programmable temperature alert outputs that can monitor hot or cold junction temperatures and detect rising or falling temperature conditions with up to 255°C programmable hysteresis. A programmable digital filter reduces noise in temperature readings. Burst mode operation supports 1 to 128 temperature samples for enhanced data averaging.

Typical industrial and commercial applications include petrochemical thermal management, hand-held measurement devices, industrial equipment temperature monitoring, ovens, engine temperature monitoring, and temperature detection racks. The device is well suited for industrial, laboratory, HVAC, and manufacturing environments requiring reliable temperature sensing solutions.

Offers ±6°C accuracy for temperature sensing. Supports serial 2-wire interface compatible with I2C at 100 kHz. Operates within a supply voltage range of 2.7V to 5.5V. Measuring 5mm by 5mm with 950μm height for compact PCB mounting.

Includes integrated cold-junction compensation for thermocouple types K, J, T, N, S, E, B, and R. Low power consumption with typical operating current of 300 μA and shutdown current of 2 μA. Programmable temperature alert outputs with configurable hysteresis up to 255°C.

This Microchip temperature sensor MCP96RL00 is a new condition industrial-grade component made in India. Explore more Temperature Sensors and sensor ICs at EnvMart for technical applications in electronics and electrical industries.
