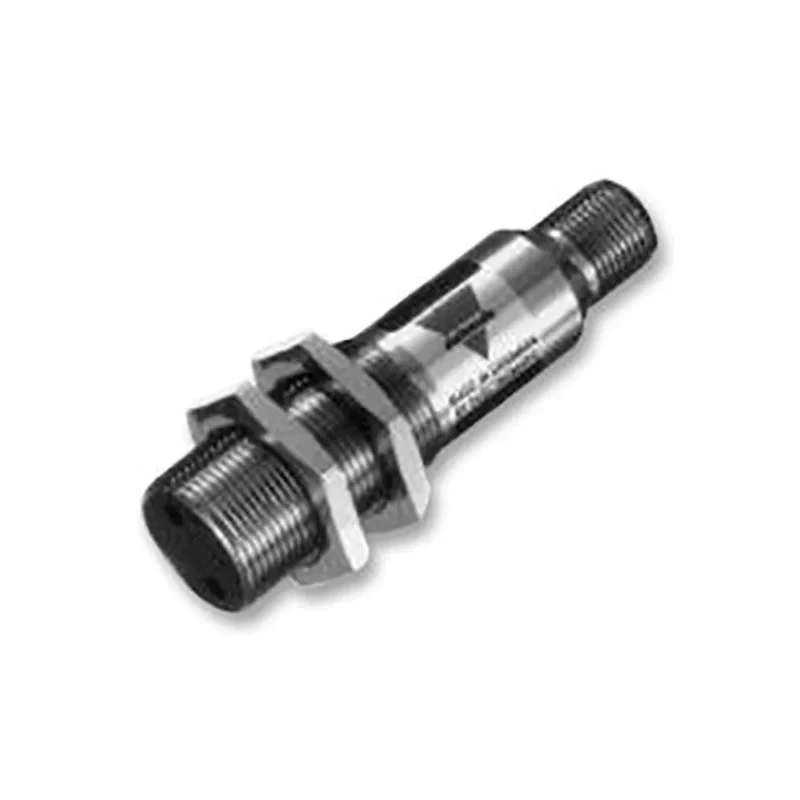

Carlo Gavazzi Diffuse Photoelectric Sensor Barrel Style 400 mm Detection Range NPN/PNP Output IP67

Carlo Gavazzi EO1804NPAS-1 diffuse Photoelectric Sensor is specially designed for industrial automation and control applications requiring reliable object detection. Featuring a rugged M18 metal barrel housing with IP67 ingress protection, this sensor withstands harsh environmental conditions including dust and water immersion.

The sensor uses modulated infrared LED light to detect objects up to 400 mm with adjustable range. It provides both NPN and PNP output types via a 4-wire complementary configuration, allowing flexible integration with control systems. The sensor output supports make and break switching functions and offers LED indication for operational status.

Operating on a wide supply voltage of 10 to 40 V DC and supporting up to 200 mA output current, the EO1804NPAS-1 sensor ensures compatibility with most industrial power systems. Protection features include reverse polarity, short-circuit, and transient suppression, enhancing durability and longevity.

The sensor’s fast response time of 3.2 ms makes it ideal for production line automation, manufacturing monitoring, and packaging applications. Its operating temperature range from -20°C to 60°C supports both indoor and moderately harsh outdoor environments.

With CSA, IEC, and UL approvals, this sensor meets international quality and safety standards. Supplied with a plug terminal for straightforward installation, it is well suited for use in factory automation, robotics, and conveyor control systems.

Designed for heavy duty industrial applications with compact barrel style metal housing. Adjustable 400 mm detection range using modulated infrared LED light source. 4-wire complementary output offering NPN (current sinking) and PNP (current sourcing) switching.

High immunity to ambient light with reverse polarity, short-circuit, and transient protection. IP67 rated for dust-tight and water immersion protection in harsh environments. Fast response time of 3.2 ms suitable for automation and control scenarios.

Wide operating temperature range from -20°C to 60°C to withstand industrial conditions. Operates on 10 to 40 V DC with maximum output current of 200 mA. Equipped with plug terminal type for easy connectivity and installation.

Compliant with CSA, IEC, and UL standards for quality and safety assurance. Explore a wide range of sensors and photoelectric sensing solutions at EnvMart to meet your industrial automation needs.
