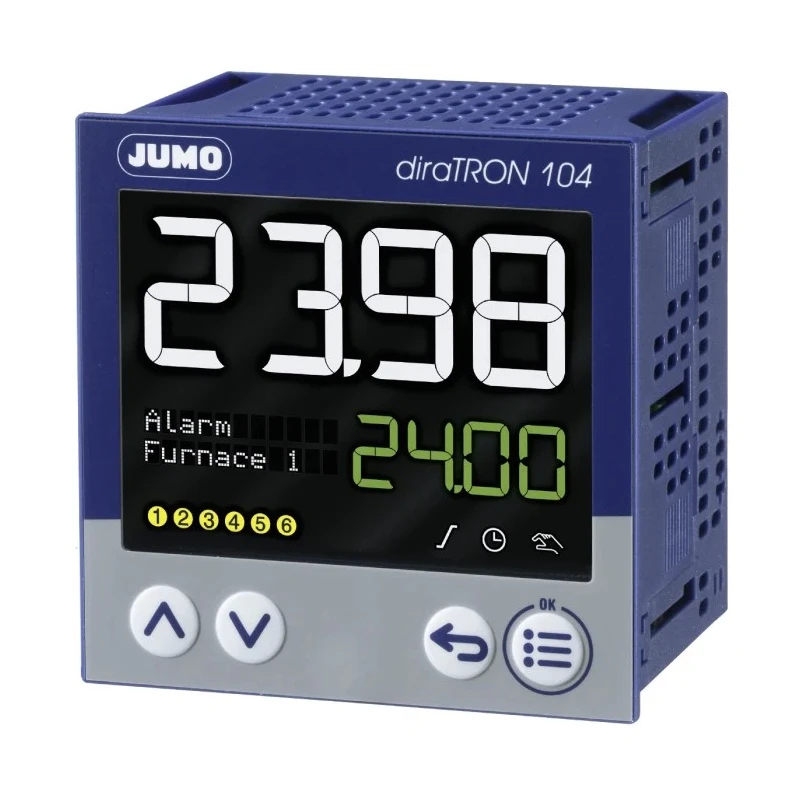

Jumo diraTRON Panel Mount PID Temperature Controller 3 Input 3 Output 2 Relay 240V AC 702114/8-0000-23/000

Jumo 702114/8-0000-23/000 PID Temperature Controller is a high-performance panel mount device designed for precise regulation of temperature and other process variables in industrial environments. With 3 inputs and 3 outputs, including 2 relay outputs, this controller offers reliable PID control functionality at a supply voltage of 240V AC. Its compact dimensions of 96mm by 65mm panel depth support straightforward panel mounting with IP65 and IP20 protection ratings that safeguard against environmental factors.

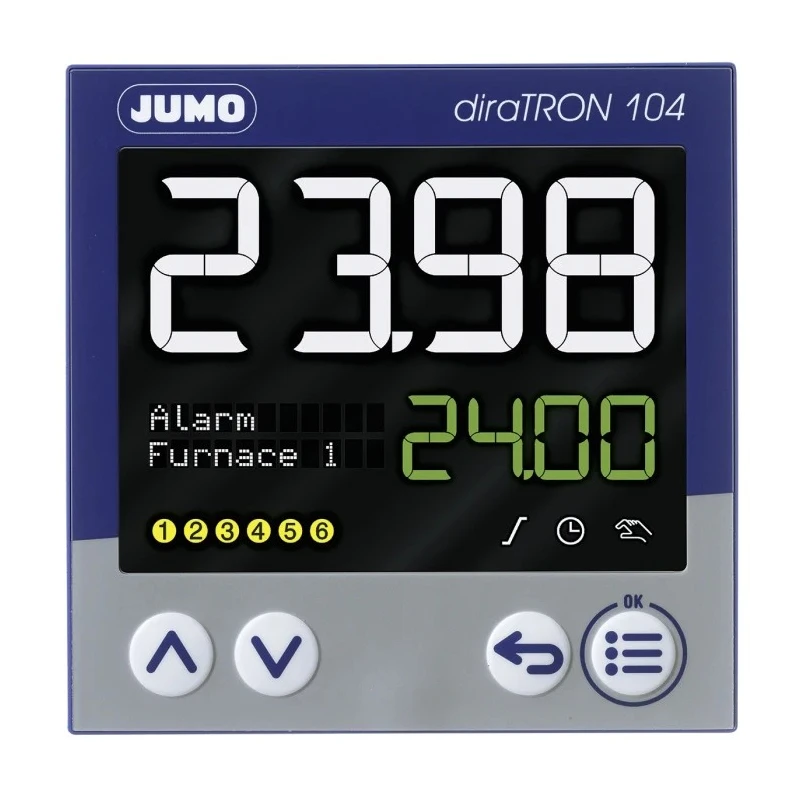

This controller supports digital and analogue input types, making it adaptable to a broad variety of sensors and measurement devices. The spring cage terminal type ensures secure and convenient wiring connections. The segment display provides clear, concise readings for easy monitoring on the panel.

Equipped with multiple advanced features such as autotuning for enhanced control accuracy, ramp function for smooth output adjustment, and a timer function, the Jumo diraTRON controller is capable of handling complex temperature control scenarios. The device also incorporates 4 limit value monitoring functions and an operator-level with individual access rights, ensuring operational safety and flexibility.

Communication is enhanced through RS485 and USB device interfaces, allowing integration into broader automation systems for data exchange and configuration. Optional features include additional analog and digital inputs via RS485 interface.

The controller is certified with CE, UL 61010-1, EN 61010-1 among others, attesting to the robust safety standards observed during its manufacture in Germany. This makes the Jumo diraTRON temperature controller suitable for rigorous industrial, laboratory, HVAC, manufacturing, and water treatment applications.

Applications include precise control of temperature, pressure, and other relevant process parameters where reliability and accuracy are critical. It is an ideal choice for automation and control gear systems requiring sophisticated PID temperature management.

Category: Temperature Controllers. Enhance your process control systems with the advanced and reliable Jumo diraTRON 702114/8-0000-23/000 PID Temperature Controller available on EnvMart for high-quality industrial automation.

Features 3 digital and analogue inputs for flexible signal monitoring. Equipped with 3 outputs, including 2 relays for effective control actions. Operates on a maximum supply voltage of 240V AC with a 230V max operating voltage.

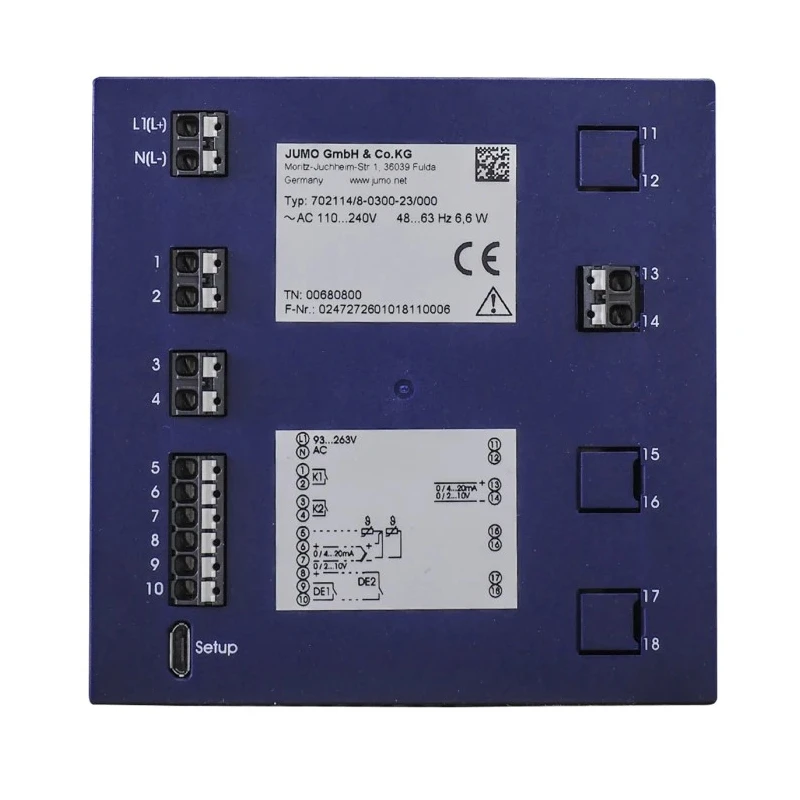

Incorporates a segment display with spring cage terminal connection for ease of installation. Complies with international standards including CE, UL 61010-1, EN 61010-1, DIN EN 60529, and CAN/CSA-22.2 No. 61010-1. Designed for panel mount installation with IP65 and IP20 ratings ensuring protection against dust and water.

Supports advanced functions such as autotuning, ramp function, timer, and multiple limit value monitoring. Includes communication options via RS485 interface and USB device interface for integration and configuration. Constructed with robust design originating from Germany and series JUMO diraTRON.
