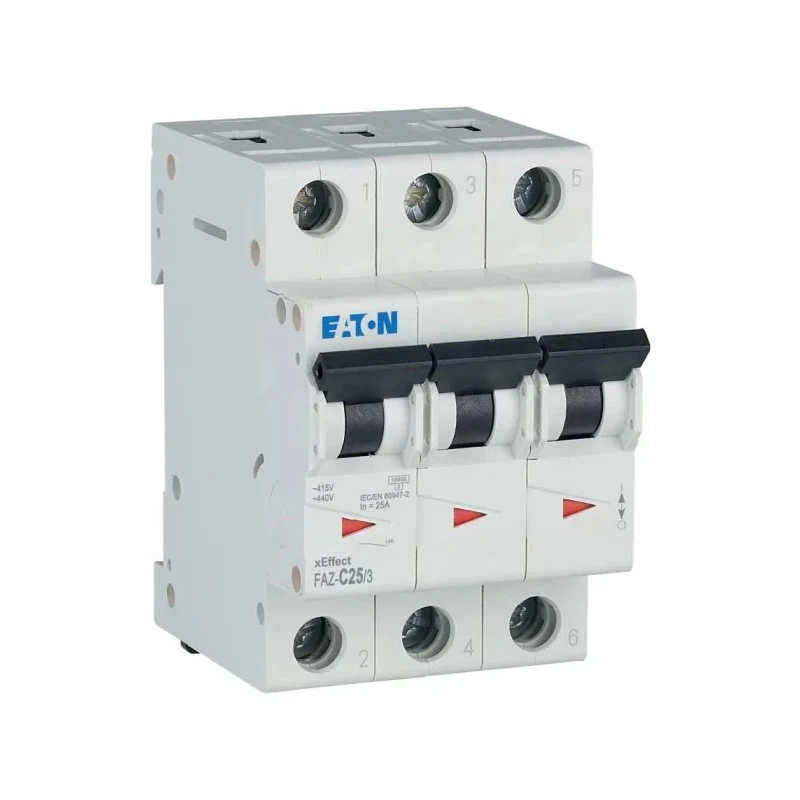

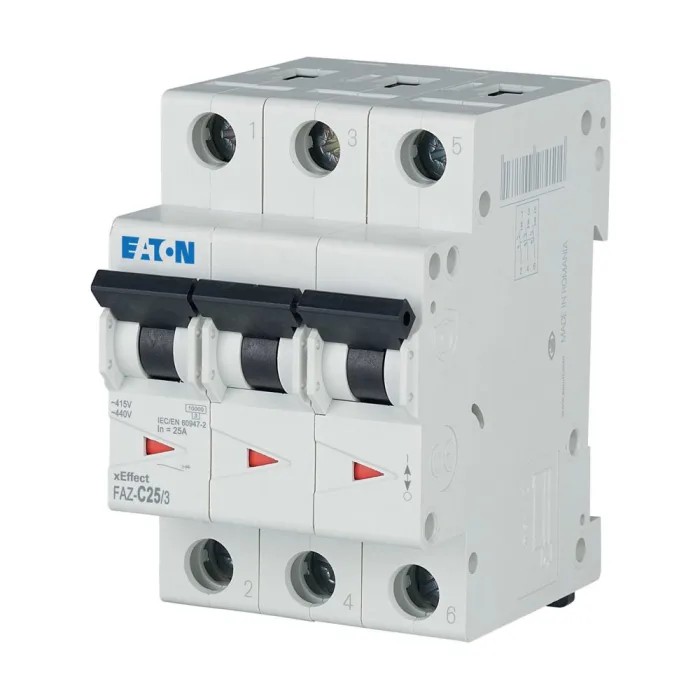

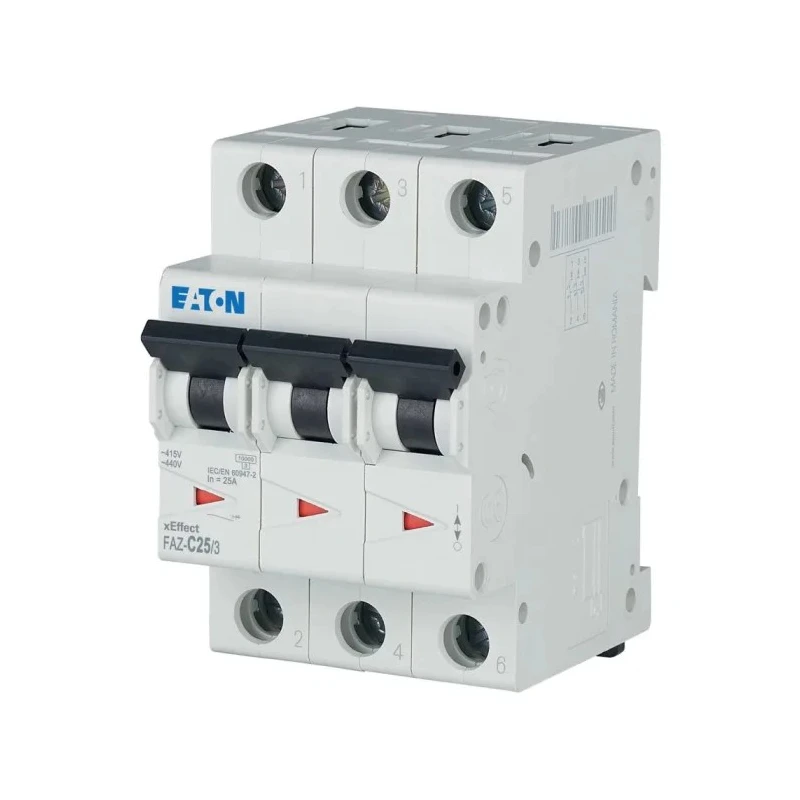

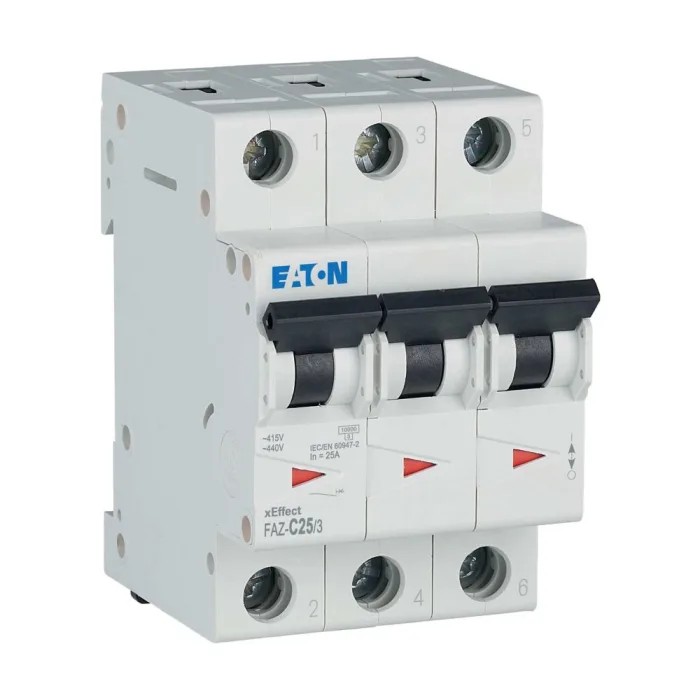

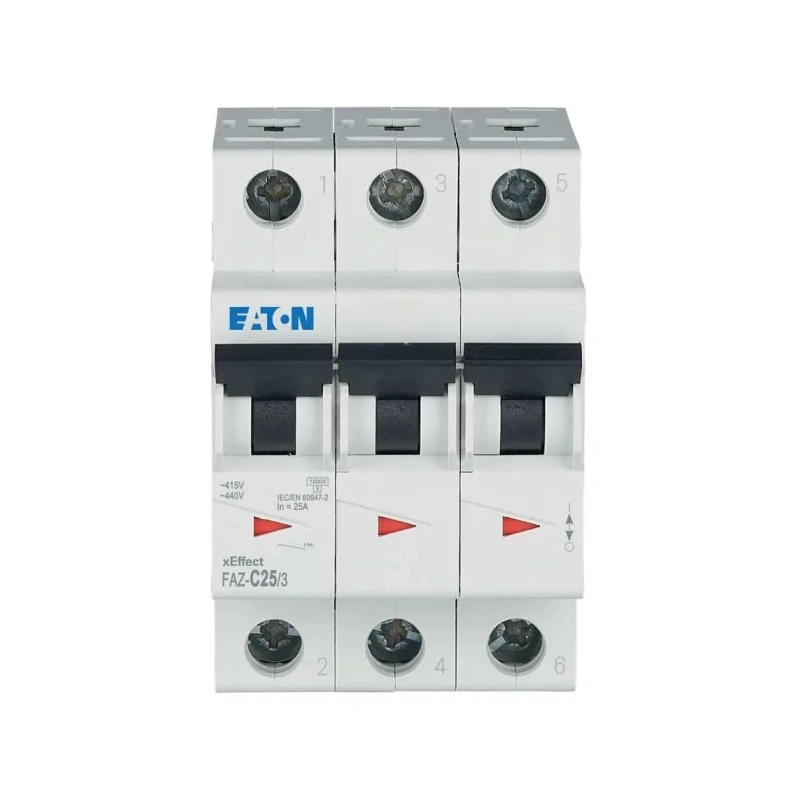

Siemens xEffect Miniature Circuit Breaker, 3-Pole, 25A, Type C, 415V AC, 10 kA Breaking Capacity 278875 FAZ-C25/3

Eaton 278875 FAZ-C25/3 miniature circuit breaker is a high-performance protective device designed for industrial, commercial, and residential electrical systems. This 3-pole MCB with a current rating of 25A operates at a rated voltage of 415V AC, providing robust circuit protection against overloads and short circuits.

The Type C tripping characteristic is optimized for medium inrush currents typical of inductive loads such as motors and HVAC equipment, reducing nuisance tripping. With a breaking capacity of 10 kA, it safeguards electrical installations by quickly interrupting fault currents, thus preventing equipment damage and ensuring operational safety.

Its compact dimensions of 85mm width and 73mm depth allow efficient use of panel space. The device mounts easily on standard DIN rails, simplifying assembly in control panels. The thermal magnetic tripping mechanism offers dual protection by responding to thermal overloads and instantaneous short circuits.

Twin-purpose terminals provide versatile wiring solutions, and the toggle switch actuator enables straightforward manual reset after tripping events. The IP20 enclosure rating protects against solid objects and unintended contact, making it suitable for a variety of installation environments.

This Eaton xEffect series MCB is suitable for branch circuit protection in electrical distribution systems, motor controllers, HVACR installations, and other applications requiring reliable and precise electrical protection. It is designed for use in industrial automation, manufacturing facilities, commercial buildings, and residential properties.

Type C tripping characteristic suited for inductive loads. Rated voltage of 415V AC ensures compatibility with standard electrical systems. Breaking capacity of 10 kA provides protection against short circuits. Compact and DIN rail mountable design for easy installation.

Thermal magnetic mechanism for dual overload and short circuit protection. Toggle switch actuator enables easy manual reset. IP20 rating for protection against solid particles and touch. Twin-purpose terminals allow flexible wiring options.

Dimensions of 85mm width and 73mm depth optimize panel use. Explore our wide range of Miniature Circuit Breakers and electrical protection devices at EnvMart for dependable and certified solutions.
