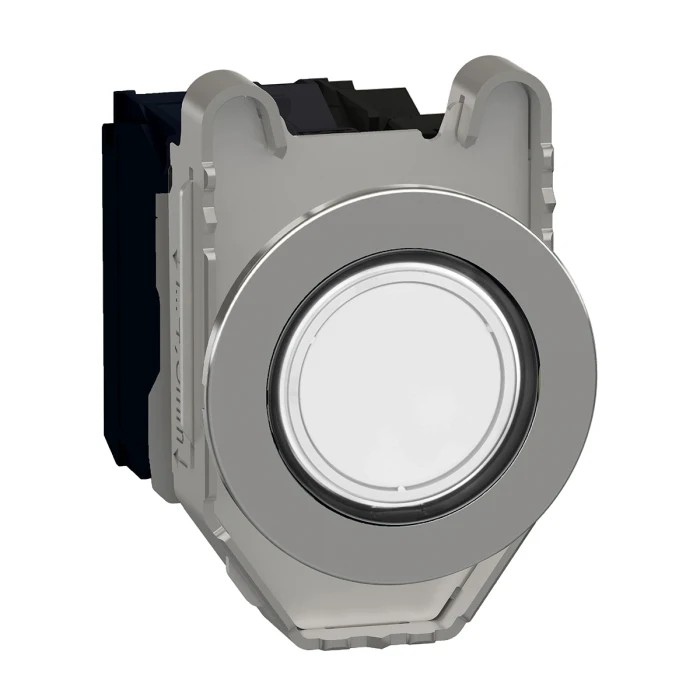

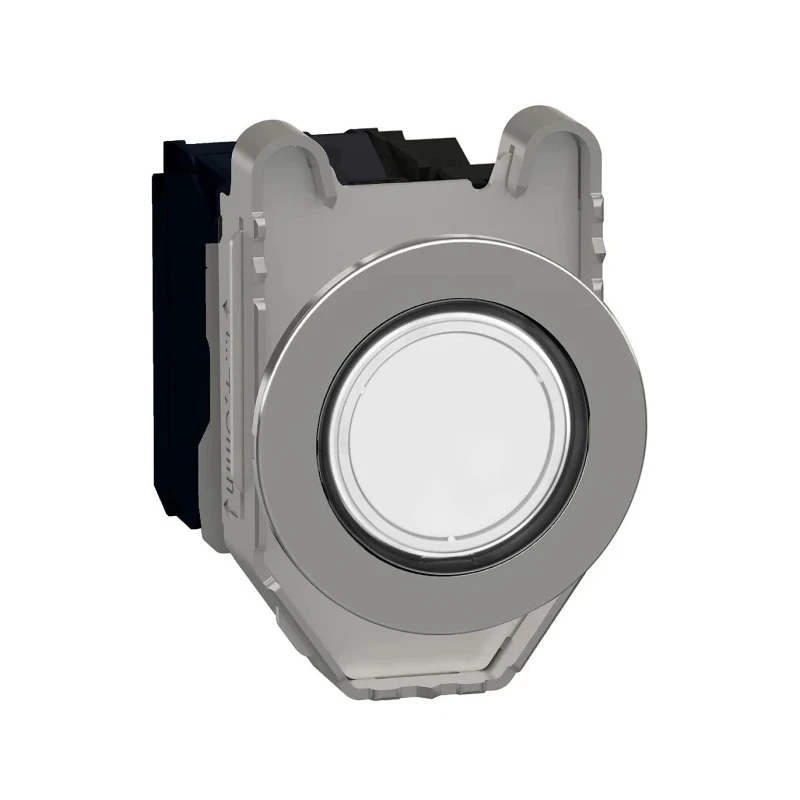

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch Spring Return SPDT White 30 mm Cutout XB4FW31B5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 47mm |
| Length | 55mm |
| Model | XB4FW31B5 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Width | 36.6mm |
| Mount Type | Panel |
| Series | Harmony XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| LED Colour | White |
| Switch Operation | Spring Return |
| Actuator Colour | White |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Switch Contact Current | 6A |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| Ideal in extreme environments | food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure |
Key Features
- The push button switch is part of the Harmony XB4 series, known for reliable industrial applications.
- It features a SPDT contact configuration with 1 NO and 1 NC slow break contacts.
- The device offers high protection ratings including IP66, IP67, IP69, and IP69K, suitable for harsh environments.
- The terminal type is screw clamp and the LED illumination is white, enhancing visibility.
- Operating temperature ranges from -40°C to 70°C, ensuring durability across extremes.
- The bezel is chromium plated with a zamak fixing collar for robust mounting.
- Compact dimensions optimize panel space usage with 55 mm length, 47 mm height, and 36.6 mm width.
- Certified to multiple international standards including EN/IEC, UL, CSA, CE, and JIS, assuring quality and compliance.
Product Description
Schneider Electric XB4FW31B5 Illuminated Push Button Switch is designed for industrial and commercial control panels requiring reliable manual operation with a spring return mechanism. This push button features a round white actuator style with illumination provided by a universal white LED, enhancing operational visibility even in low-light conditions.
It is part of the Harmony XB4 metallic range, a comprehensive series known for ergonomic and aesthetic designs with a flush mount profile addressing modern panel styling demands. The panel cutout size is 30 mm, making it compatible with standard panel dimensions.
The SPDT contact configuration with 1 NO and 1 NC slow break contacts ensures versatile switching capabilities for various control tasks. The switch is engineered to operate safely with contact voltages up to 600V AC/DC and a switching current of 6A, suitable for demanding electrical environments.
With a high ingress protection rating of IP66 through IP69K, the switch offers robust resistance against dust, water jets, and high-pressure, high-temperature water, making it ideal for extreme industrial settings including food and beverage, automotive, mining, and water treatment applications. The device is also protected against high impact with IK06 rating.
The device installation is simplified by a screw clamp terminal type for secure wiring, and a cross head screwdriver can be used for mounting on panels. The bezel finish is chromium plated for corrosion resistance, and the fixing collar is made of zamak alloy ensuring mechanical strength.
Dimensionally compact with a length of 55 mm, height of 47 mm, and width of 36.6 mm, the switch is suitable for space-constrained control panels. The weight is approximately 132 grams, balancing robustness with portability.
Schneider Electric XB4FW31B5 complies with international standards such as CSA C22.2 No 14, EN/IEC 60947 series, UL 508, CE marking, JIS certifications, and others, ensuring global acceptance and safety assurance.
Part of Harmony XB4 metallic series for integrated panel control solutions. Spring return actuator with white illuminated LED for clear status indication. Robust IP66, IP67, IP69, and IP69K ratings for durability in harsh environments.
SPDT 1 NO/1 NC contact configuration suitable for versatile switching functions. Panel cutout diameter of 30 mm fits standard enclosures. Reliable screw clamp terminal connection for ease of wiring. Certified for global industrial and commercial use with multiple standards approvals.
This push button switch is an eco-friendly product complying with RoHS and WEEE directives, supporting sustainable industrial practices. Accessories like blanking plugs, metal rings, spacers, protective washers, and mounting kits are available separately to customize installation.
Explore more Schneider Electric products and other Push Button Switches at EnvMart for your industrial automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a SPDT contact configuration with 1 normally open (NO) and 1 normally closed (NC) slow break contact, allowing for versatile switching capabilities.
The switch has compact dimensions: 55 mm in length, 47 mm in height, and 36.6 mm in width, making it suitable for space-constrained control panels.
It can operate safely at temperatures up to 70°C, ensuring functionality in various environments.
The required panel cutout size for this switch is 30 mm, which fits standard panel dimensions.
The XB4FW31B5 has high ingress protection ratings of IP66, IP67, IP69, and IP69K, making it suitable for harsh environments against dust and water.
It features a screw clamp terminal type, which allows for secure wiring connections.
This model is equipped with a white LED for illumination, enhancing visibility during operation.
The weight of this unit is approximately 132 grams, balancing robustness with portability.
The minimum operating temperature is -40°C, allowing it to function in extreme cold conditions.
This switch is ideal for use in extreme environments such as food and beverage, automotive, mining, and water treatment applications.
It is certified to multiple international standards including EN/IEC, UL, CSA, CE, and JIS, ensuring quality and compliance for global use.
The switching current for the XB4FW31B5 is rated at 6A, suitable for demanding electrical environments.
