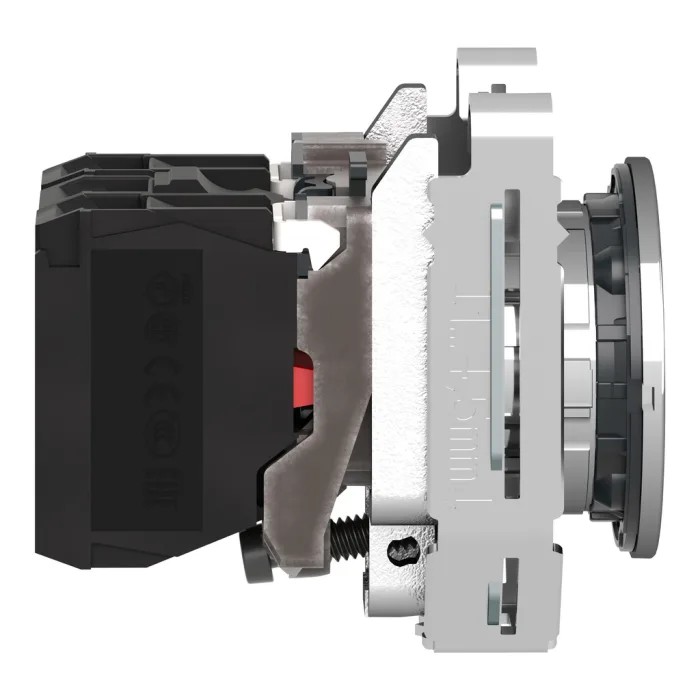

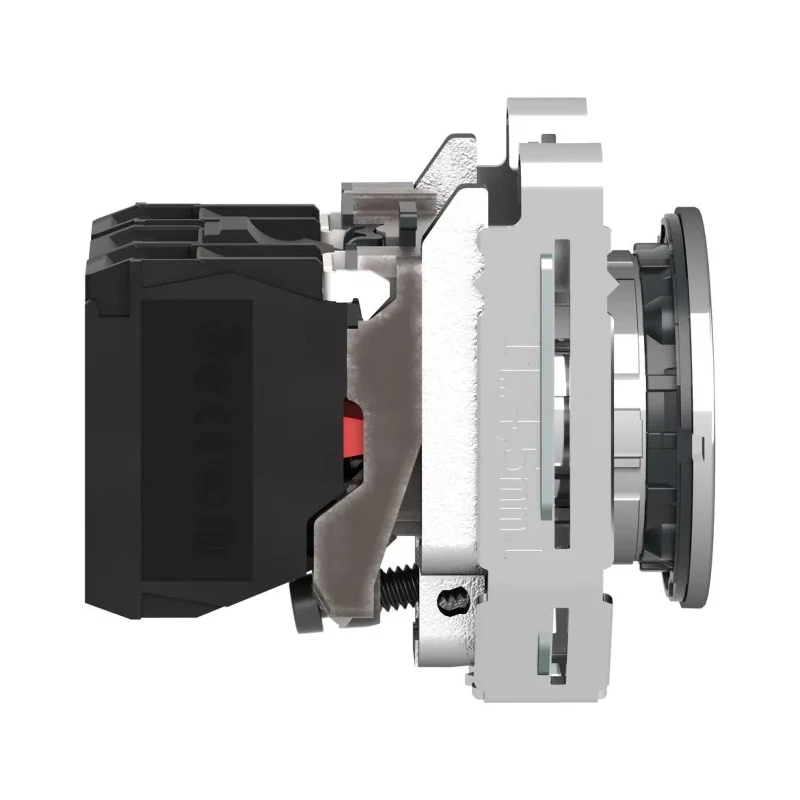

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch Spring Return Panel Mount 30 mm Cutout SPDT XB4FW36B5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 47mm |
| Length | 55mm |
| Model | XB4FW36B5 |
| IP Rating | IP66, IP67, IP69, IP69K |
| Width | 36.6mm |
| Mount Type | Panel |
| Series | Harmony XB4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| LED Colour | Blue |
| Switch Operation | Spring Return |
| Actuator Colour | Blue |
| Contact DC Voltage | 600V |
| Actuator Style | Round |
| Switch Contact Current | 6A |
| Better World Claim | Repairable by the End User |
| Legend | Blank |
| Various types of connection are available | screw clamp, connector, Faston connector, spring terminal, or printed circuit board |
| Ideal in extreme environments | food and beverage, automotive, and outdoor use such as mining, water treatment, etc. Building and infrastructure |
Key Features

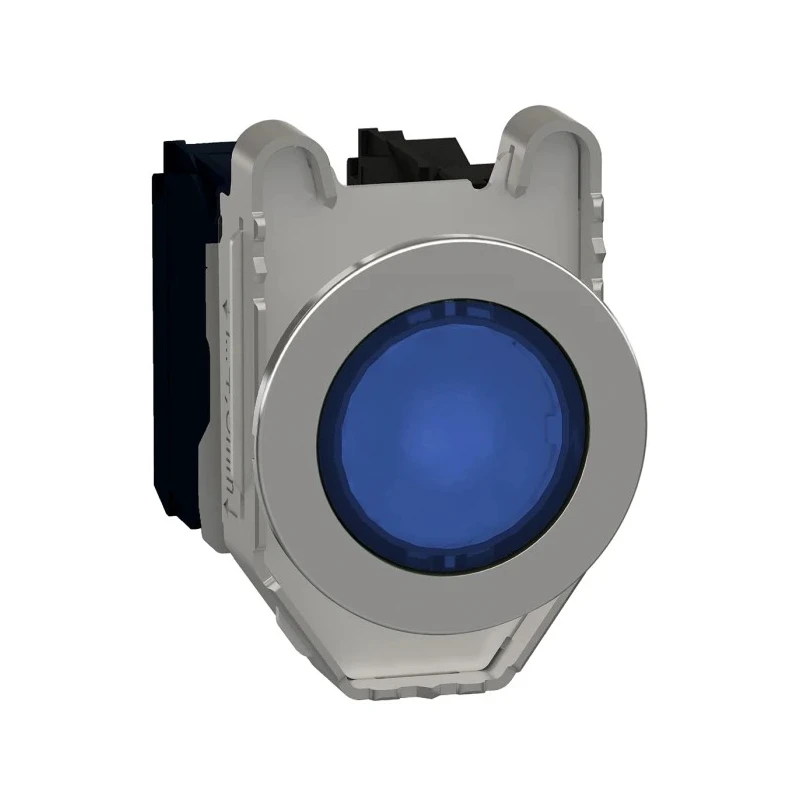

- This push button features a blue round actuator and blue LED illumination.
- Constructed with a chromium-plated bezel and zamak fixing collar for durability.
- Rated for 24 V AC/DC supply voltage with 6A switch contact current.
- Enables robust installation with screw clamp terminals and high vibration resistance.
- Designed to operate in extreme environments with IP66, IP67, IP69, and IP69K ratings.
- Operating temperature range from -40°C to 70°C suitable for industrial applications.
- Includes environmental compliance per RoHS, WEEE, and REACh directives.
- Suitable for use in food and beverage, automotive, mining, water treatment, building, and infrastructure sectors.
Product Description
Schneider Electric XB4FW36B5 is an illuminated push button switch designed as part of the Harmony XB4 metallic series. Featuring a spring return mechanism, this panel-mount switch has a 30 mm cutout diameter with a durable chromium-plated bezel and zamak fixing collar, ensuring both ergonomic design and longevity.
The switch includes a round blue actuator with integrated blue LED illumination, powered by a rated supply voltage of 24 V AC/DC and capable of switching currents up to 6A. Its contact configuration is SPDT (1 NO/1 NC slow break), with screw clamp terminals providing secure electrical connections and high vibration resistance via shake-proof screws.
Engineered to withstand harsh environments, this switch offers IP ratings IP66, IP67, IP69, and IP69K, providing protection against dust, water ingress, and high-impact conditions, making it suitable for demanding industrial and commercial applications such as food and beverage processing, automotive manufacturing, mining, and water treatment plants.
Compact in size, it measures 47 mm in height, 36.6 mm in width, and 55 mm in length, with an operating temperature range spanning from as low as -40°C to 70°C. The product complies with multiple international standards including EN/IEC, UL, CSA, CE marking, CCC, EAC, JIS, and marine certifications.
This push button is labeled Green Premium, supporting sustainability initiatives, and adheres to environmental protection directives including RoHS, WEEE, and REACh. Installation is facilitated with a cross-head screwdriver and the product supports customization via the Schneider Electric web marking tool. Accessories such as blanking plugs, metal rings, spacers, and protective washers are available separately to tailor the installation.
This push button is ideal for industrial, laboratory, construction, HVAC, manufacturing, water treatment, agricultural, and commercial applications. The package contains one unit of the Schneider Electric XB4FW36B5 illuminated push button switch.
Explore more Schneider Electric products and Push Button Switches with EnvMart for reliable electrical and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch is rated for a supply voltage of 24 V AC/DC.
It features a single pole double throw (SPDT) contact configuration with 1 normally open (NO) and 1 normally closed (NC) contact.
The maximum switch contact current is rated at 6A.
The dimensions are 47 mm in height, 36.6 mm in width, and 55 mm in length.
It operates within a temperature range from -40°C to 70°C.
The switch has IP ratings of IP66, IP67, IP69, and IP69K, indicating its protection against dust and water ingress.
This model is designed for panel mounting with a 30 mm cutout size.
It uses screw clamp terminals for secure electrical connections.
It is suitable for use in food and beverage, automotive, mining, water treatment, building, and infrastructure sectors.
The switch features a round actuator with a blue color and integrated blue LED illumination.
It complies with RoHS, WEEE, and REACh directives for environmental protection.
Accessories such as blanking plugs, metal rings, spacers, and protective washers are available separately to customize the installation.
