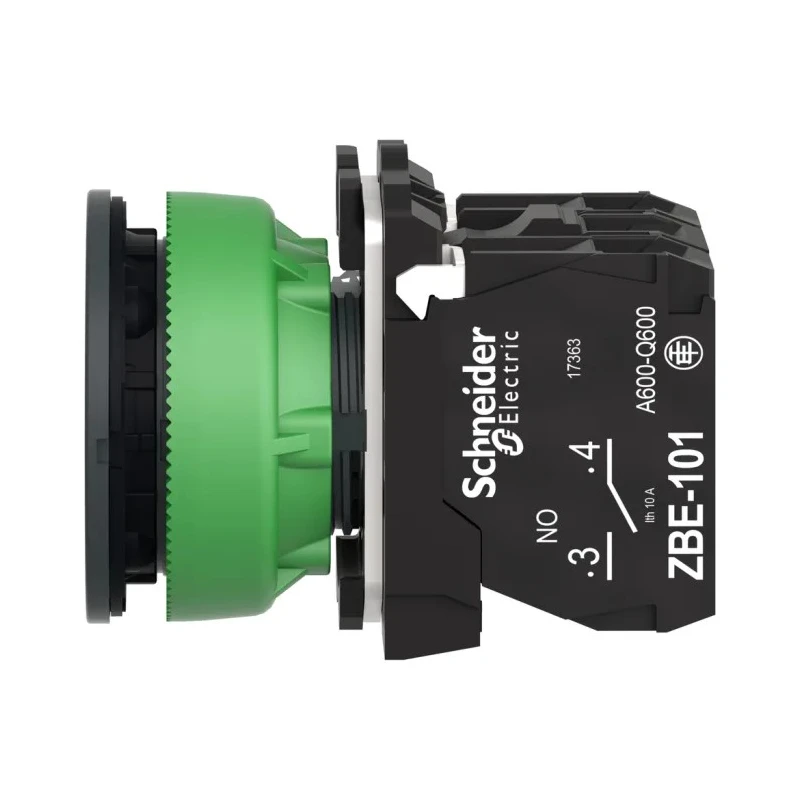

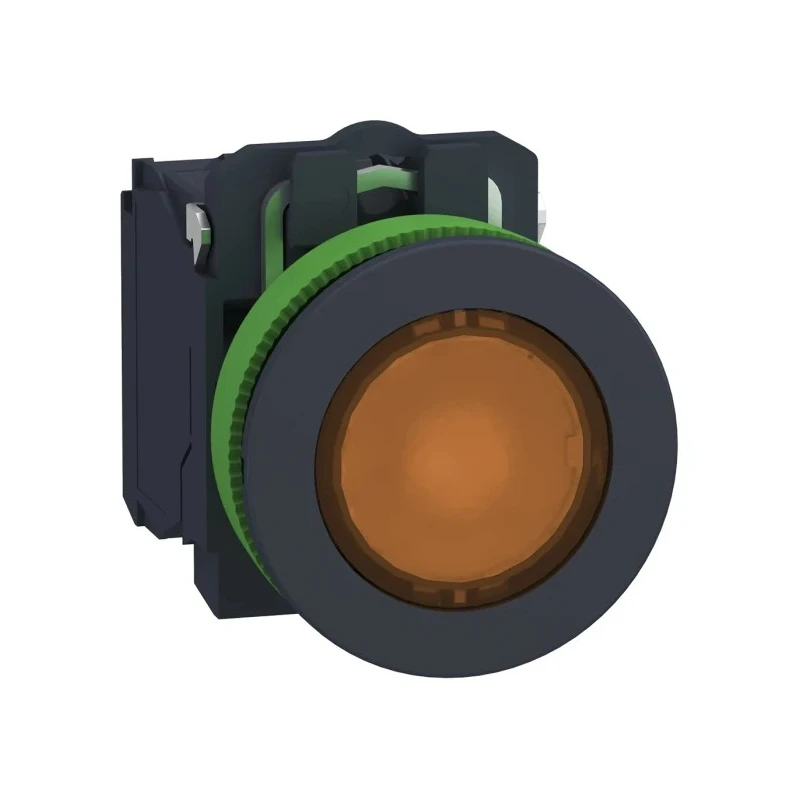

Schneider Electric XB5 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 30 mm Cutout, SPDT XB5FW35M5

Schneider Electric XB5FW35M5 is a high-quality illuminated pushbutton switch designed for industrial automation, control panels, and machinery. Featuring a robust spring return mechanism and a bright orange LED illumination, it offers clear visual indication and reliable operation.

This pushbutton is designed to be flush-mounted with a 30 mm panel cutout, providing an ergonomic and aesthetically clean look. Its round actuator and plastic bezel ensure durability and ease of use. The switch contacts include 1NO and 1NC configurations with a slow break action, capable of handling up to 6A switch contact current at 600 V AC/DC.

Its operating temperature range of -40°C to 70°C allows usage in various demanding environments such as food processing, beverage industries, marine applications, building infrastructure, and other industrial segments. The switch is constructed to meet multiple international standards including EN/IEC 60947, UL 508, CSA, JIS, and is compliant with eco-friendly directives such as RoHS and WEEE.

The product's flexibility and ease of installation are enhanced by the screw clamp terminal and the availability of various connection types like connector and Faston connectors. Accessories like flush mounting kits and protective washers are available separately to customize installations.

Weighing only 52 grams and measuring 42 mm x 55 mm x 36.6 mm (H x L x W), this compact switch is suitable for most industrial control panels. It offers high chemical robustness, vibration resistance, and environmental protection with IP ratings up to IP66, IP67, IP69, and IP69K.

Spring return pushbutton with illuminated orange LED for visual status indication. Suitable for panel mounting with 30 mm cutout for easy installation. Contact configuration: SPDT with 1 NO and 1 NC slow break contacts. Rated for 600 V AC/DC voltage and 6A switch contact current.

Wide operating temperature range from -40°C to 70°C for harsh environments. Plastic bezel with round actuator design enhances durability and ergonomics. Meets multiple international standards including EN/IEC, UL, CSA, and JIS certifications.

Eco-friendly compliance including RoHS and WEEE environmental directives. Compact dimensions and lightweight structure for versatile use. High resistance to vibration and chemical exposure, ideal for industrial applications.
