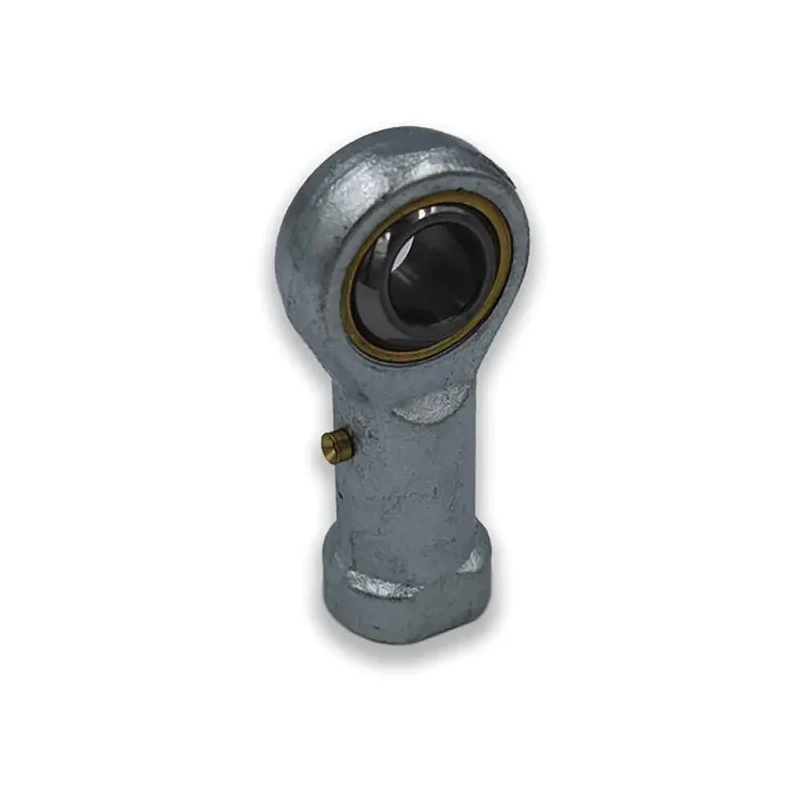

LDK M5 Female Carbon Steel Rod End 5mm Bore Metric Left Hand Thread PHS 5L
Specifications
| Country of Origin | China |
|---|---|
| Brand | LDK |
| Material | Carbon Steel |
| Model | PHS 5L |
| Body | Carbon steel,clear Zinc plated |
| BALL | AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished |
| Overall Width | 35mm |
| Outside diameter | 16mm |
| Connection Size | M5 Female |
| Bore Diameter | 5mm |
| Thread Standard | Metric |
| Static Load Rating | 6.6kN |
| Thread Direction | Left Hand |
| Dynamic Load Rating | 2.5kN |
| Connection Gender | Female |
| Race | Brass |
| Sliding contact surfaces | Steel/Brass |
Key Features
- Made from carbon steel with clear zinc plating for corrosion resistance.
- Ball made of AISI 52100 bearing steel, heat treated to HRC58-64 for high durability.
- Thread standard is metric with M5 female connection size.
- Dynamic load rating of 2.5kN and static load rating of 6.6kN provide robust performance.
- Outside diameter measures 16mm with an overall width of 35mm.
- Precision ground and polished ball for smooth operation and accuracy.
- Left hand thread direction to meet specific assembly requirements.
- Race component made from brass, sliding surfaces combine steel and brass for reduced wear.
Product Description
LDK PHS 5L is a high-quality M5 female carbon steel rod end designed for demanding industrial and mechanical applications requiring precise articulation and robust connection. It features a 5mm bore diameter and a left hand thread, adhering to metric thread standards, ensuring compatibility with a wide range of assemblies.
The rod end body is constructed from carbon steel with a clear zinc plating finish, providing excellent corrosion resistance and longevity in challenging environments. The ball is crafted from AISI 52100 bearing steel, which is heat treated to a hardness of HRC58-64, precision ground, and polished, delivering superior wear resistance and smooth movement.
This component offers a dynamic load rating of 2.5kN and a static load rating of 6.6kN, suitable for various mechanical systems where load-bearing capacity and durability are crucial.
Additional features include a 16mm outside diameter and 35mm overall width, making it compact yet sturdy. The left hand threaded design facilitates secure installation in specialized applications.
The race is made of brass, and the sliding contact surfaces combine steel and brass materials, which provides reliability and extends operational life. Manufactured in China, this rod end is ideal for industrial machinery, fluid power equipment, automation systems, and other mechanical engineering uses.
Made from carbon steel with clear zinc plating for corrosion resistance. Heat-treated AISI 52100 bearing steel ball ensuring durability and precision. Metric M5 female threaded connection with left hand thread direction.
Dynamic load rating of 2.5kN and static load rating of 6.6kN. Compact dimensions with 16mm outside diameter and 35mm width. Brass race and steel/brass sliding contact surfaces enhance longevity. Suitable for industrial machinery, fluid power systems, and precision mechanical assemblies.
Explore more Rod End Bearing products and mechanical components at EnvMart to meet your engineering and maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this rod end is 2.5kN.
The ball is made from AISI 52100 bearing steel, which is heat treated to a hardness of HRC58-64.
It has an outside diameter of 16mm and an overall width of 35mm.
The static load rating is 6.6kN.
This model features a left hand thread with a metric M5 female connection size.
The body is constructed from carbon steel and has a clear zinc plating for corrosion resistance.
The sliding contact surfaces combine steel and brass materials to enhance durability.
It is manufactured in China.
It is suitable for industrial machinery, fluid power systems, and precision mechanical assemblies.
The bore diameter is 5mm.
The race component is made from brass.
The ball is precision ground and polished to ensure smooth operation and accuracy.
