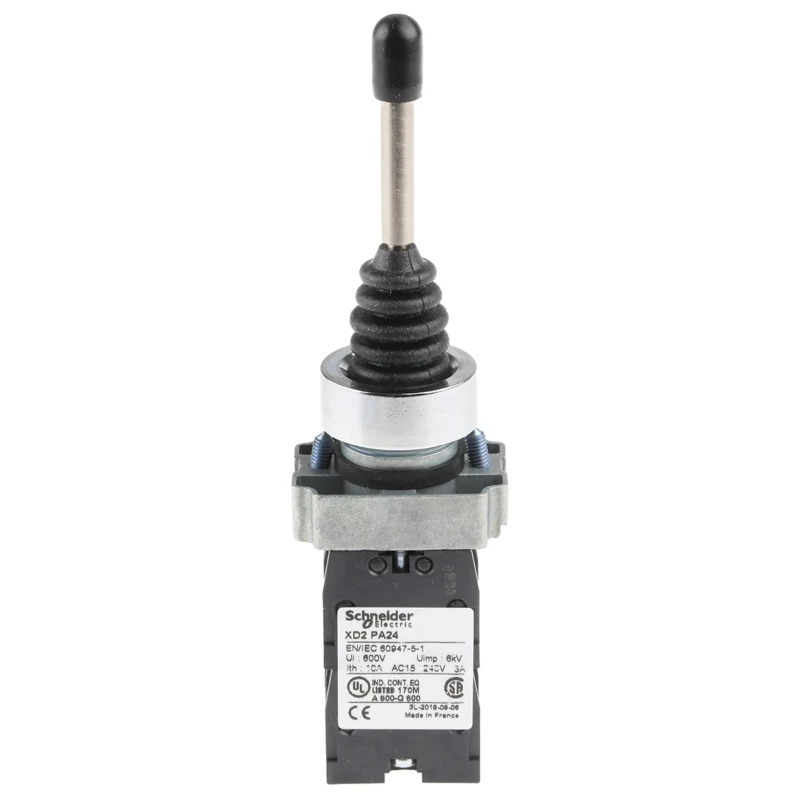

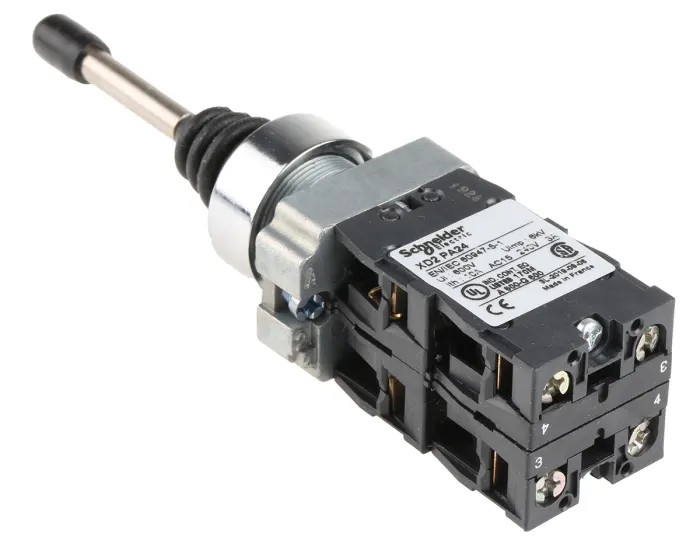

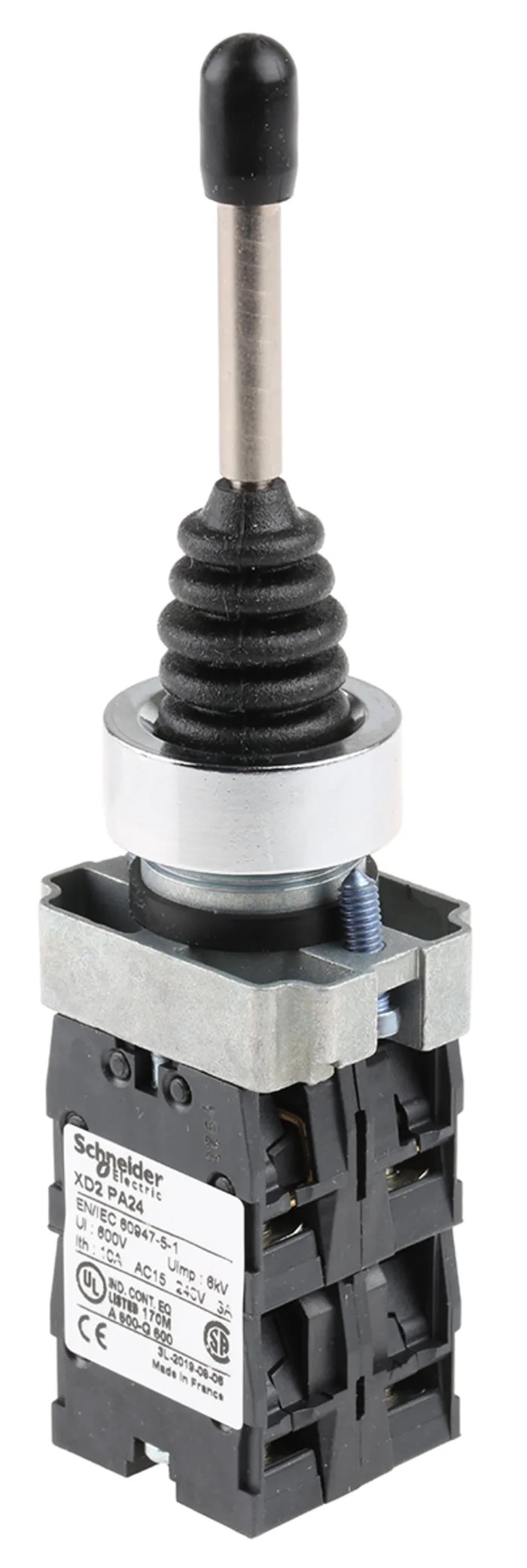

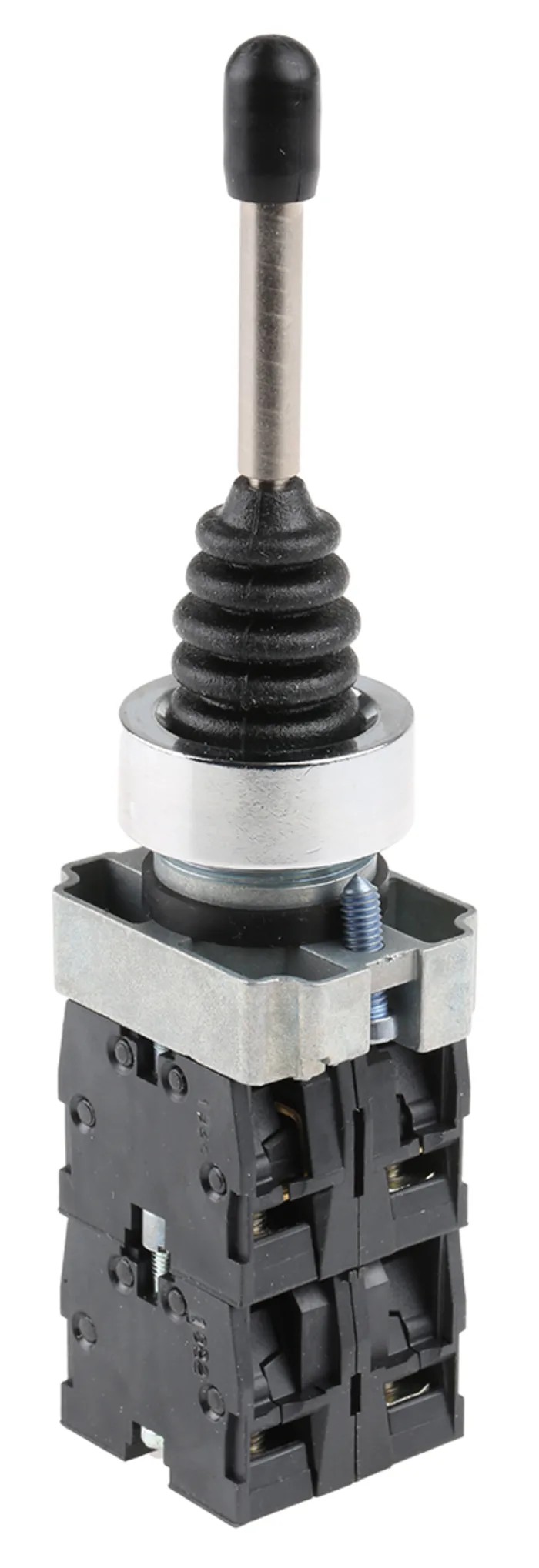

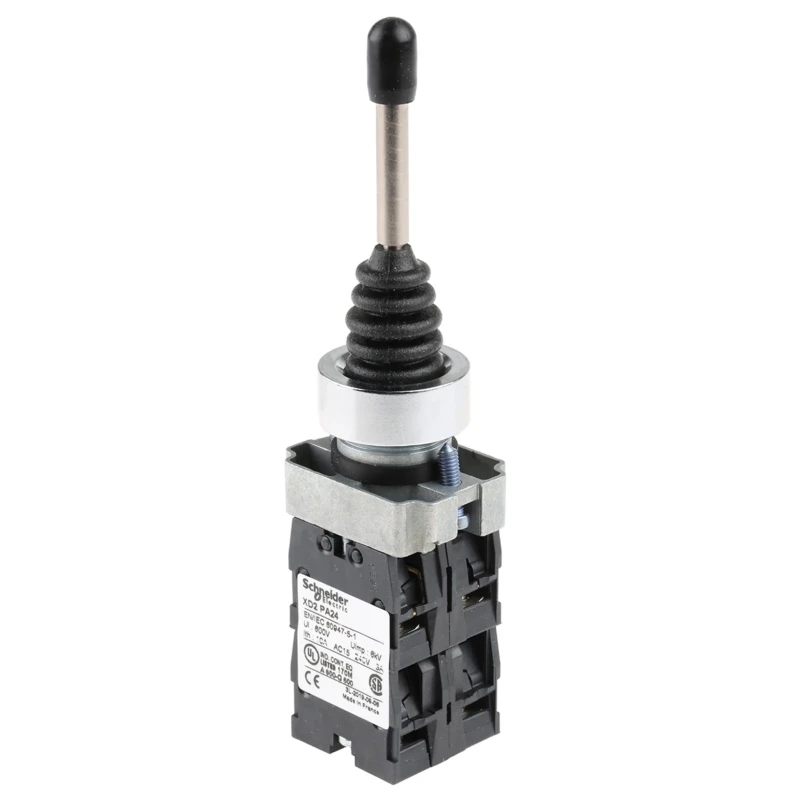

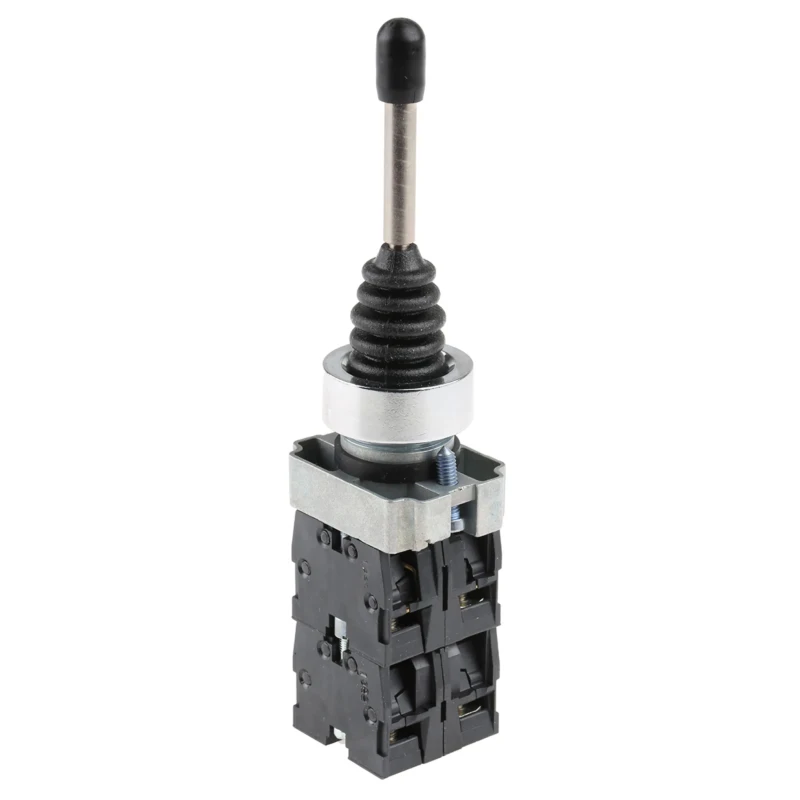

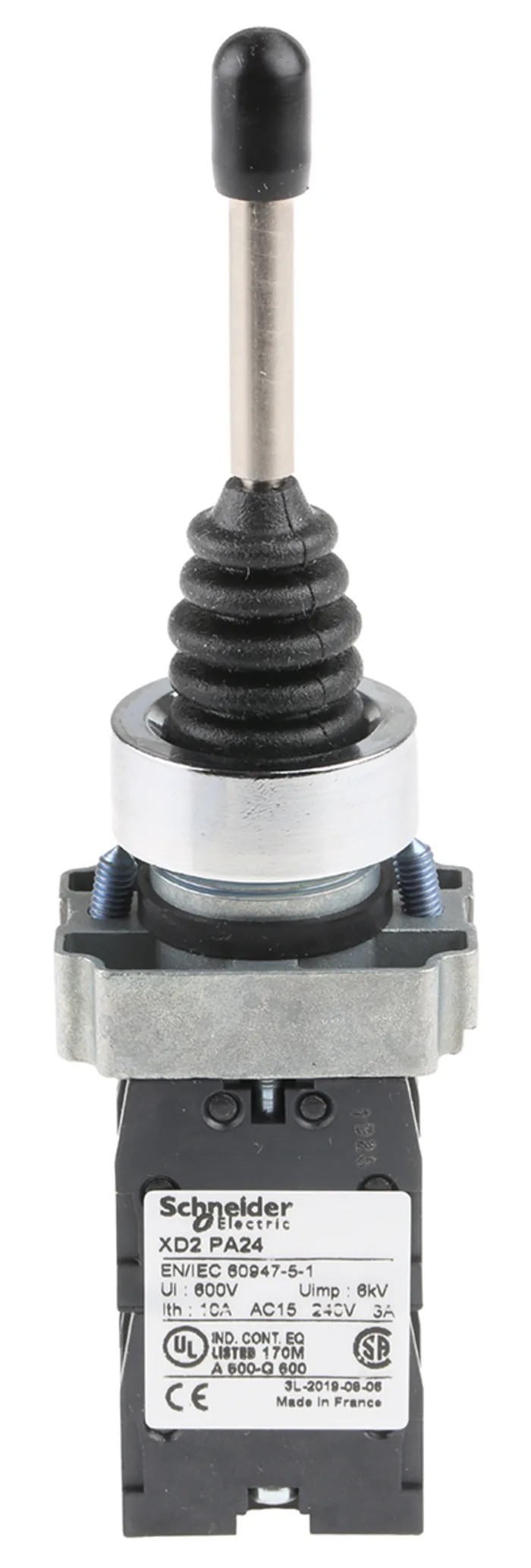

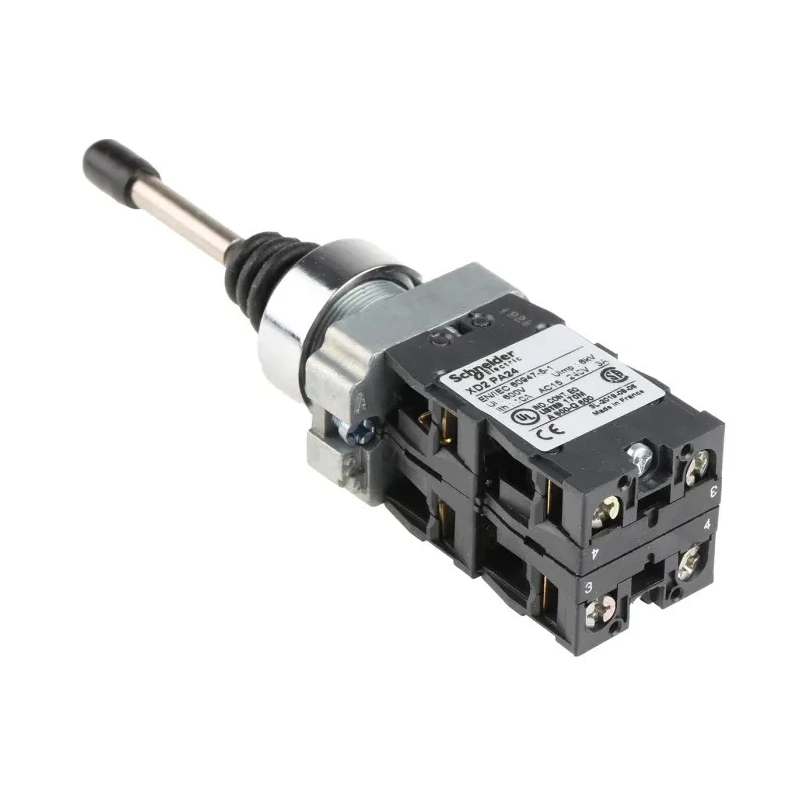

Schneider Electric Harmony XD2 4-Axis Joystick Lever Slow Break IP65 230 V AC 3A XD2PA24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Model | XD2PA24 |
| IP Rating | IP65 |
| Handle Type | Lever |
| Series | Harmony XD2 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Axes | 4 |
| Standards/Approvals | RoHS |
| Switch Contact Current | 3A |
| Mechanical Life | 1000000Cycles |
| Contact AC Voltage | 230V ac |
| Better World Claim | Repairable by the End User |
| Switch Technology | Slow Break |
| Joystick Travel | 40 mm |
| Euchner 4-Axis Joystick Switch Momentary, IP65 230V acBrand | Euchner |
Key Features
- Equipped with four-axis control for versatile directional movement.
- Slow break switch technology enables smooth, delayed switch off for precise operation.
- Rated for 230 V AC and 3A switch contact current for electrical compatibility.
- Constructed with chromium-plated metal bezel providing high abrasion resistance.
- IP65 rated enclosure for dust-tight and water jet protection.
- Mechanical lifespan of 1,000,000 cycles ensures durability and long-term use.
- Operates reliably across a temperature range of -25°C to 70°C for harsh environments.
- Screw-type terminals for secure electrical connections.
Product Description
Schneider Electric XD2PA24 is a high-performance Harmony XD2 series 4-axis joystick lever switch designed for demanding industrial applications. It features slow break switch technology, allowing a controlled, delayed switch-off to enhance precision and safety during equipment operation.
The joystick lever offers intuitive control over four directions, ideal for applications requiring multi-axis maneuvering. Its robust chromium-plated metal bezel provides excellent abrasion resistance, suitable for heavy-duty use.
With a contact AC voltage rating of 230 V and contact current of 3A, this joystick is designed to handle typical industrial loads safely. The switch contact configuration is SPST, and it employs screw terminal connections for reliable wiring.
The product promises a mechanical life of one million cycles, underscoring its suitability for repeated use without premature wear. It operates effectively within a broad temperature range from -25°C to 70°C, ensuring performance in extreme conditions.
Applications for this joystick switch include controlling heavy machinery in construction, port logistics, and automotive sectors where precise directional inputs are critical. The spring-return lever swiftly reverts to its neutral position, enabling rapid multiple directional commands without manual resets.
Equipped with four-axis control for versatile directional movement. Slow break switch technology enables smooth, delayed switch off for precise operation. Rated for 230 V AC and 3A switch contact current for electrical compatibility.
Constructed with chromium-plated metal bezel providing high abrasion resistance. IP65 rated enclosure for dust-tight and water jet protection. Mechanical lifespan of 1,000,000 cycles ensures durability and long-term use.
Operates reliably across a temperature range of -25°C to 70°C for harsh environments. Screw-type terminals for secure electrical connections. Explore more Schneider Electric components and industrial Joysticks at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this joystick is 70°C.
This model has an IP65 rating, indicating it is dust-tight and protected against water jets.
It features a Single Pole Single Throw (SPST) contact configuration.
The joystick has a mechanical lifespan of 1,000,000 cycles, ensuring long-term use.
The joystick is rated for a contact current of 3A.
It operates at a contact AC voltage of 230V.
This joystick provides control over four axes.
It uses screw-type terminals for secure electrical connections.
It employs slow break switch technology, allowing for smooth and controlled switch-off.
The minimum operating temperature is -25°C, allowing it to function in cold environments.
The joystick features a chromium-plated metal bezel, providing high abrasion resistance.
This model complies with RoHS standards.
