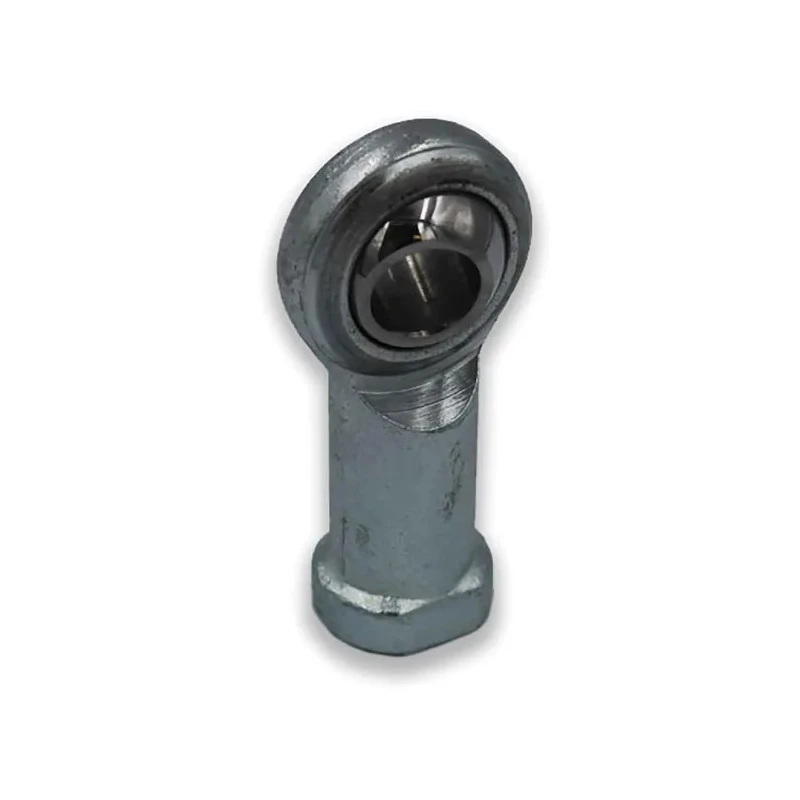

LDK M5 Female Carbon Steel Rod End, 5mm Bore Metric, Left Hand Thread, Dynamic Load 3.3kN, Static Load 6.2kN PHS 5ECL
Specifications
| Country of Origin | China |
|---|---|
| Brand | LDK |
| Material | Carbon Steel |
| Model | PHS 5ECL |
| Body | Carbon steel,clear Zinc plated |
| BALL | AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished |
| Overall Width | 35mm |
| Outside diameter | 16mm |
| Connection Size | M5 Female |
| Bore Diameter | 5mm |
| Thread Standard | Metric |
| Static Load Rating | 6.2kN |
| Thread Direction | Left Hand |
| Dynamic Load Rating | 3.3kN |
| Connection Gender | Female |
| Race | PTFE composite |
| Sliding contact surfaces | Steel/PTFE composite |
Key Features
- Constructed with carbon steel body and AISI 52100 heat-treated bearing steel ball.
- Left hand thread standard with M5 female connection size.
- Dynamic load rating of 3.3kN and static load rating of 6.2kN for robust performance.
- Equipped with PTFE composite race and steel/PTFE composite sliding contact surfaces.
- Clear zinc plating on the body ensures anti-corrosion protection.
- Outside diameter measures 16mm with an overall width of 35mm.
- Ideal for industrial applications requiring precise rotary bearing solutions.
- Manufactured in China under strict quality standards.
Product Description
LDK PHS 5ECL is a high-quality M5 Female Carbon Steel Rod End featuring a 5mm bore diameter and left hand metric thread, designed for reliable rotary bearing performance in mechanical assemblies.
The ball component is made from heat-treated AISI 52100 bearing steel with a hardness rating between HRC 58-64, precision ground and polished for optimal function. The rod end body is constructed from carbon steel with a clear zinc plated finish to resist corrosion.
This rod end incorporates a PTFE composite race and combined steel/PTFE composite sliding contact surfaces to enhance wear resistance and durability under dynamic and static loads rated at 3.3kN and 6.2kN respectively.
With an outside diameter of 16mm and an overall width of 35mm, this component suits various industrial, mechanical, fluid power, and automation applications where precision and longevity are essential.
The thread direction is left hand with metric thread standard, specifically M5 x 0.8, allowing for secure and compatible assembly.
Manufactured in China, this rod end meets the technical demands of rotary bearing and housing units commonly required in manufacturing, agricultural machinery, conveyor systems, and robotics.
Constructed with carbon steel body and zinc plating for corrosion resistance. Ball made from heat-treated AISI 52100 steel ensuring high hardness and precision. PTFE composite materials enhance wear resistance on sliding surfaces.
Dynamic and static load rated for demanding industrial use. Metric M5 female left hand threaded connection for compatibility. Comprehensive industrial applications from mechanical to fluid power tools. Precision ground and polished ball for smooth rotary motion.
Compact dimensions with 16mm outside diameter and 35mm overall width. Explore more rod ends and rotary bearing units at EnvMart to fulfill diverse industrial and mechanical requirements with premium quality components.
Explore more products in our Rod End Bearing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this rod end is 3.3kN.
The static load rating for this model is 6.2kN.
The body is constructed from carbon steel and features a clear zinc plated finish, while the ball is made from heat-treated AISI 52100 bearing steel.
This rod end has an outside diameter of 16mm and an overall width of 35mm.
The rod end has a metric thread standard with a left hand thread direction.
The bore diameter of this rod end is 5mm.
It features steel/PTFE composite sliding contact surfaces to enhance wear resistance.
This rod end is manufactured in China.
This rod end is suitable for various industrial applications, including mechanical, fluid power, and automation systems.
It incorporates a PTFE composite race, which enhances its performance under load.
The connection size for this model is M5 female.
The ball is heat-treated to a hardness rating between HRC 58-64 and is precision ground and polished for optimal function.
