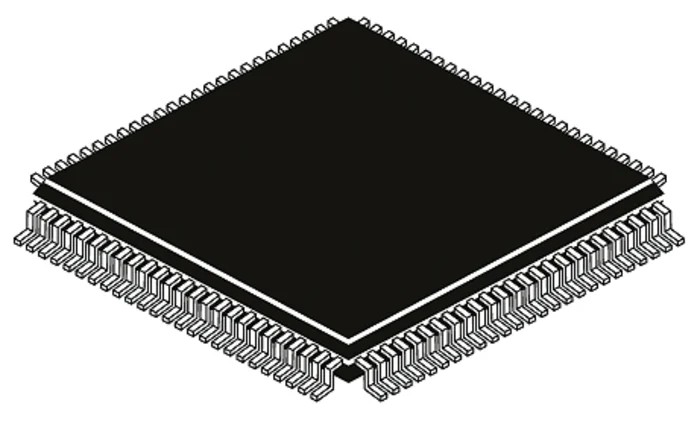

NXP Kinetis K2x 32 bit ARM Cortex M4 Microcontroller 512kB FLASH 100 MHz 100-Pin LQFP MK20DN512VLL10
Specifications
| Country of Origin | India |
|---|---|
| Brand | NXP |
| Height | 1.7mm |
| Length | 14mm |
| Model | MK20DN512VLL10 |
| Width | 14mm |
| Mount Type | Surface |
| Series | Kinetis K2x |
| Maximum Operating Temperature | 105°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 128kB |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.71V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 512kB |
| Maximum Clock Frequency | 100MHz |
| Analogue Comparators | 3 |
| Number of Timers | 3 |
| Instruction Set Architecture | ARM |
| ADCs | 2 x 16 Bit |
| Program Memory Type | FLASH |
| DACs | 12 Bit |
Key Features
- Based on 32 bit ARM Cortex M4 core for high-performance processing.
- 512kB of FLASH program memory for complex code implementations.
- Operating clock frequency up to 100 MHz ensuring efficient execution.
- Equipped with 128kB RAM for fast data access and processing.
- Surface mount package type LQFP with 100 pins suitable for compact designs.
- Wide operating temperature range from -40°C to 105°C for industrial applications.
- Includes 2x16-bit ADCs and 12-bit DACs for analog signal processing tasks.
- Power supply voltage range from 1.71V minimum up to 3.6V maximum.
Product Description
NXP MK20DN512VLL10 is a 32 bit ARM Cortex M4 core microcontroller from the Kinetis K2x series, designed for reliable and high-performance embedded applications.
This microcontroller operates at a maximum clock frequency of 100 MHz and houses 512kB of FLASH program memory along with 128kB of RAM, offering ample resources for complex software tasks.
It features a 100-pin LQFP surface mount package, making it suitable for compact and high-density hardware designs.
Operating voltage ranges from 1.71V to 3.6V, with an operating temperature range spanning from -40°C to 105°C, making it compatible with demanding industrial and automotive environments.
The device includes important peripherals such as dual 16-bit ADCs, 12-bit DACs, three analogue comparators, and three timers, facilitating versatile signal processing and control capabilities.
Kinetis K2x microcontrollers are known for their low power consumption and high integration, including USB 2.0 On-The-Go (OTG) support with device charge detect and crystal-less operation, enabling broad applications in industrial, commercial, and embedded systems.
Based on 32 bit ARM Cortex M4 core for high-performance processing. 512kB of FLASH program memory for complex code implementations. Operating clock frequency up to 100 MHz ensuring efficient execution. Equipped with 128kB RAM for fast data access and processing.
Surface mount package type LQFP with 100 pins suitable for compact designs. Wide operating temperature range from -40°C to 105°C for industrial applications. Includes 2x16-bit ADCs and 12-bit DACs for analog signal processing tasks.
Power supply voltage range from 1.71V minimum up to 3.6V maximum. Comes with 3 analogue comparators and 3 timers for peripheral control. Program memory type is FLASH supporting reliable and fast memory operations. This microcontroller is ideal for embedded industrial control, automotive systems, and sophisticated consumer electronics, providing scalable performance and power efficiency.
Explore more NXP Microcontrollers and related semiconductor products at EnvMart for robust electronic design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the MK20DN512VLL10 microcontroller is 100 MHz.
This microcontroller features a program memory size of 512kB FLASH.
The operating temperature range for this microcontroller is from -40°C to 105°C.
It is equipped with 128kB of RAM for fast data access and processing.
This model has a total of 100 pins.
The power supply voltage range for this model is from 1.71V to 3.6V.
It uses a 100-pin LQFP surface mount package type.
This model includes 2x16-bit ADCs and a 12-bit DAC for analog signal processing tasks.
The microcontroller is equipped with three timers.
It belongs to the Kinetis K2x series.
The MK20DN512VLL10 is based on the ARM Cortex M4 core architecture.
The country of origin for this model is India.
