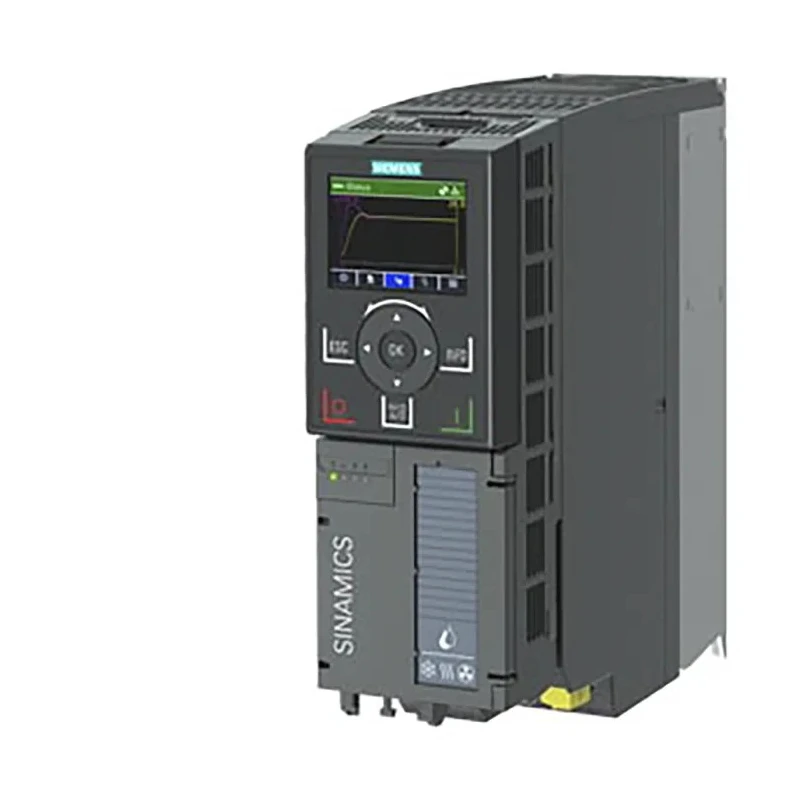

Siemens SINAMICS G120X Series Inverter Drive 3 kW 3 Phase 480V 9.1 A 6SL3220-3YE18-0UF0
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Siemens |
| Model | 6SL3220-3YE18-0UF0 |
| IP Rating | IP20 |
| Drive Type | PID Control |
| Mount Type | Wall |
| Overall Length | 73mm |
| Series | SINAMICS G120X |
| Overall Width | 209mm |
| Power Rating | 3kW |
| Maximum Operating Temperature | +55°C |
| Output Frequency | 550Hz |
| Minimum Operating Temperature | -20°C |
| Number of Phases | 3 |
| Maximum Output Current | 9.1A |
| Standards/Approvals | CE Certified, cUL Recognized, EAC Certified, KCC, RCM, REACH, SEMI F47, UL Listed |
| Maximum Supply Voltage | 480V |
| Overall Depth | 232mm |
| Minimum Supply Voltage | 380V |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- The drive supports AC motor compatibility and PID control drive type.
- Operating temperature range from -20°C to +55°C ensures robust performance.
- Compact wall mount design with IP20 protection rating provides reliable installation.
- Output frequency up to 550 Hz suitable for pump and fan applications.
- Certified with CE, cUL, EAC, KCC, RCM, REACH, SEMI F47, and UL for safety and standards compliance.
- Better World product status confirms energy-saving features and sustainability.
- Overall dimensions of 73 mm length, 209 mm width, and 232 mm depth ensure space-efficient integration.
Product Description
Siemens 6SL3220-3YE18-0UF0 SINAMICS G120X Series inverter drive is engineered for industrial automation, HVAC, water, and wastewater sectors, delivering 3 kW power with three-phase 480V supply and a maximum output current of 9.1 A. This inverter drive features advanced PID control for precise motor operation and is suitable for AC motor types.
The device operates reliably in harsh industrial environments with an operating temperature range of -20°C to +55°C and meets an IP20 ingress protection rating. Its robust construction includes certifications such as CE, cUL, EAC, KCC, RCM, REACH, SEMI F47, and UL, ensuring safety and compliance.
Compact dimensions (73 mm length, 209 mm width, 232 mm depth) allow easy mounting on walls while saving valuable control cabinet space. The output frequency capability reaches up to 550 Hz, making it ideal for pump, fan, building technology, and infrastructure applications.
The SINAMICS G120X series is designed for simple setup with user-friendly operator panels such as the Smart Access Module and Intelligent Operator Panel. It facilitates efficient and cost-effective operation with industry-focused functions including tube filling mode and bypass functionality.
This energy-efficient and Better World certified inverter drive helps reduce energy consumption and carbon footprint in demanding industrial and commercial installations. The drive supports AC motor compatibility and PID control drive type.
Operating temperature range from -20°C to +55°C ensures robust performance. Compact wall mount design with IP20 protection rating provides reliable installation. Output frequency up to 550 Hz suitable for pump and fan applications.
Certified with CE, cUL, EAC, KCC, RCM, REACH, SEMI F47, and UL for safety and standards compliance. Better World product status confirms energy-saving features and sustainability. Overall dimensions of 73 mm length, 209 mm width, and 232 mm depth ensure space-efficient integration.
Ideal for industrial automation, HVAC, water treatment, wastewater, and building infrastructure sectors. Discover Siemens Inverter Drives on EnvMart to enhance your automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 3 kW.
The maximum output current for this unit is 9.1 A.
The operating temperature range is from -20°C to +55°C.
It can handle an output frequency of up to 550 Hz.
This model is compatible with AC motors.
The IP rating of this inverter drive is IP20.
The overall dimensions are 73 mm in length, 209 mm in width, and 232 mm in depth.
It is certified with CE, cUL, EAC, KCC, RCM, REACH, SEMI F47, and UL.
This model is designed for wall mounting.
It utilizes a PID control drive type.
It is suitable for industrial automation, HVAC, water treatment, wastewater, and building infrastructure sectors.
The minimum supply voltage is 380V.
