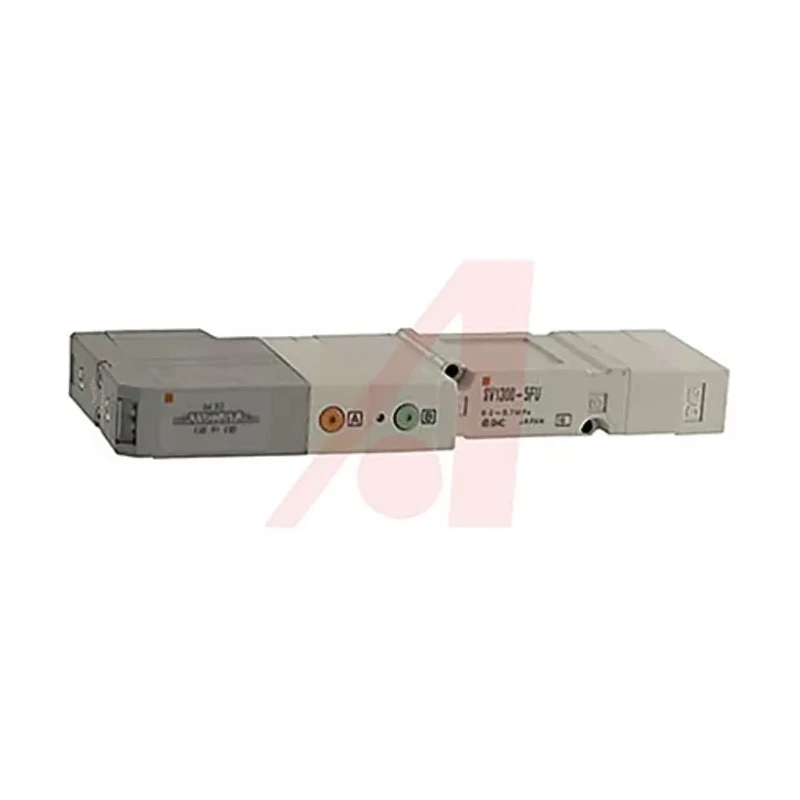

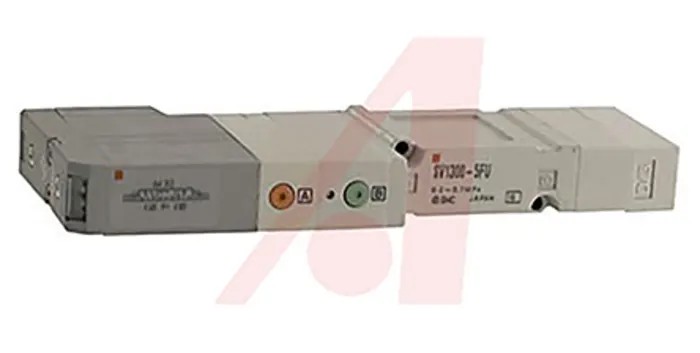

SMC Pneumatic Solenoid Valve 24V DC, Die Cast Aluminium Body, 5 Ports, 0.7 MPa Max Pressure SV1000

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 24V DC, Die Cast Aluminium Body, 5 Ports, 0.7 MPa Max Pressure SV1000



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Model	SV1000
Enclosure	IP67 (based on IEC529)
Mount Type	Direct, DIN Rail
Series	SV1000
Number Of Ports	5
Maximum Operating Temperature	50°C
Port Type	Threaded, One-Touch Fitting
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Operating pressure range	-100kPa to 0.7MPa
Actuation Type	Solenoid
Fluid	air
Maximum Flow Rate	1658L/min
Minimum Pilot Pressure	0.1MPa
Valve Function	NC, NO
Ambient and fluid temperature	-10 to +50 °C
Response time (at 0.5MPa)	18ms or less

Key Features

Operates on 24V DC coil voltage for efficient solenoid control.
Constructed from die cast aluminium body for durability and corrosion resistance.
Features 5 ports with threaded and one-touch fitting for versatile connection.
Valve function includes normally closed and normally open options.
Suitable operating temperature range from -10°C to 50°C with IP67 enclosure protection.
Maximum flow rate of 1658 L/min supports high throughput pneumatic systems.
Designed for direct and DIN rail mounting for flexible installation setups.
Fluid used is air; operating pressure range from -100 kPa to 0.7 MPa.

Product Description

SMC SV1000 Pneumatic Solenoid Valve 24V DC is engineered for precision control of pneumatic systems in industrial automation and fluid power applications. The valve features a die cast aluminium body providing robust mechanical strength and corrosion resistance, suitable for demanding environments.

This solenoid valve supports 5 ports with threaded and one-touch fittings, enabling versatile and secure pneumatic connections. It operates efficiently at a coil voltage of 24V DC with valve functions of normally closed (NC) and normally open (NO) to accommodate various control logic requirements.

The maximum operating pressure is 0.7 MPa while the operating temperature ranges from -10°C to 50°C. The valve's enclosure complies with IP67 (IEC529), ensuring protection against dust and water ingress, ideal for harsh industrial conditions.

With a high maximum flow rate of 1658 L/min, the valve supports rapid air flow for responsive system control. The SV1000 series utilizes multi-connector wiring and offers manifold installation options including direct and DIN rail mounting, enhancing installation flexibility.

Typical applications include pneumatic automation in manufacturing, HVAC controls, and fluid power management systems. The valve's response time of 18 ms or less at 0.5 MPa ensures quick actuation for precise timing operations.

Originating from Japan, the SMC SV1000 series is recognized for quality and reliability in industrial valve products. Operates on 24V DC coil voltage for efficient solenoid control. Constructed from die cast aluminium body for durability and corrosion resistance.

Features 5 ports with threaded and one-touch fitting for versatile connection. Valve function includes normally closed and normally open options. Suitable operating temperature range from -10°C to 50°C with IP67 enclosure protection.

Maximum flow rate of 1658 L/min supports high throughput pneumatic systems. Designed for direct and DIN rail mounting for flexible installation setups. Fluid used is air; operating pressure range from -100 kPa to 0.7 MPa.

Response time is 18 ms or less at 0.5 MPa, allowing fast valve actuation. Manufactured in Japan ensuring high quality and reliability standards. For advanced pneumatic valve solutions, explore more industrial and automation products at EnvMart.
