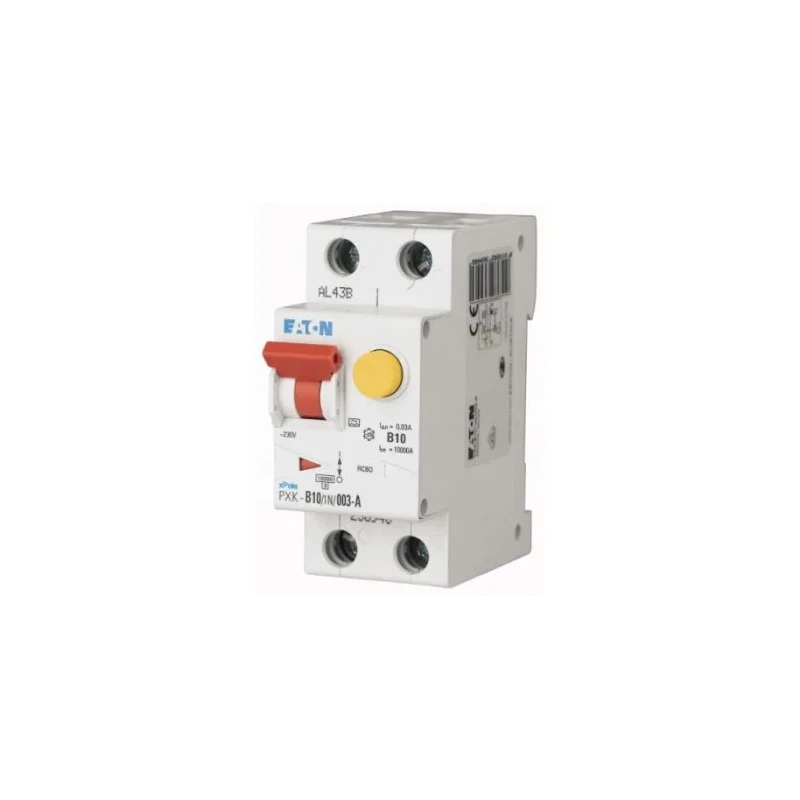

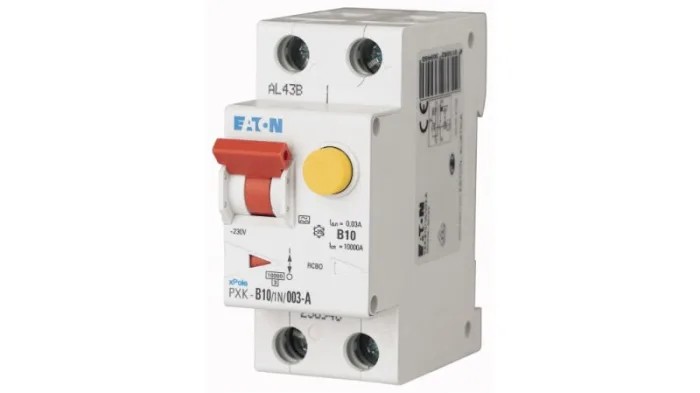

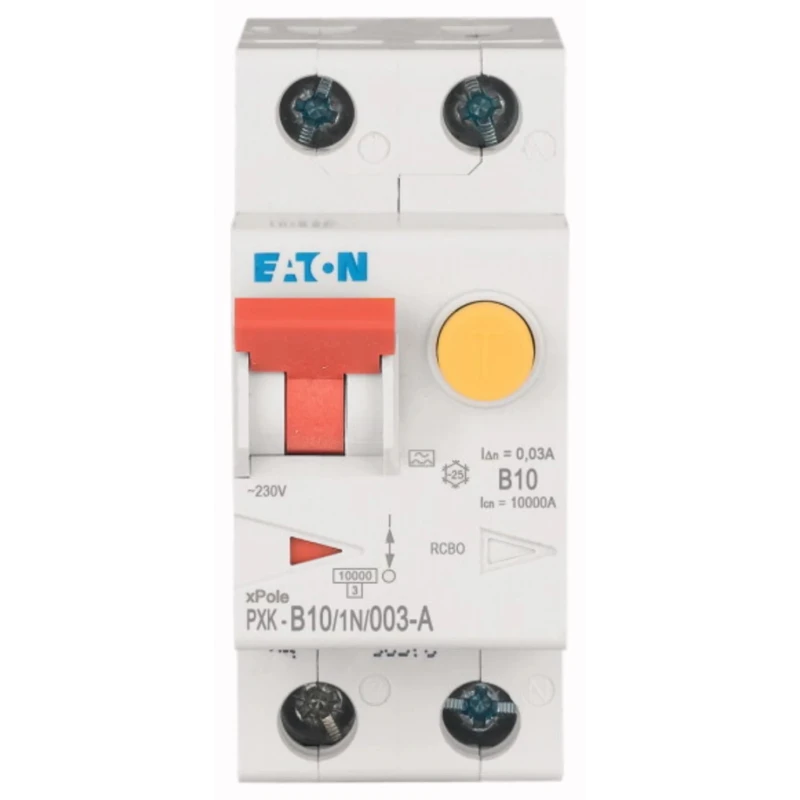

Eaton Residual Current Circuit Breaker with Overload Protection, 10A Current Rating, 1 Pole, 30 mA 236946 PXK-B10/1N/003-A
Specifications
| Country of Origin | Austria |
|---|---|
| Range | PXK |
| Brand | Eaton |
| Model | 236946 PXK-B10/1N/003-A |
| Depth | 69.5mm |
| Width | 2mm |
| Current Rating | 10A |
| Breaking Capacity | 10kA |
| Number of Poles | 1 |
| Standards/Approvals | IEC/EN 61009, IEC/EN 61439 |
| Rated AC Voltage | 240V ac |
| Tripping Characteristics | Type B |
| Trip Sensitivity | 30mA |
| Earth Leakage Protection Type | Type A |
Key Features
- The breaker has a 10A current rating suitable for moderate load circuits.
- Features a 1-pole design with 30mA trip sensitivity for personal protection.
- Operates at a rated AC voltage of 240V to reliably control current flow.
- Type B tripping characteristic offers instantaneous short circuit protection.
- Offers a high breaking capacity of 10kA for durability under fault conditions.
- Complies with IEC/EN 61009 and IEC/EN 61439 standards, ensuring safety and performance.
- Equipped with Type A earth leakage protection for sensitive trip response.
- Compact design with a depth of 69.5 mm and width of 2 mm for easy panel integration.
Product Description
Eaton 236946 PXK-B10/1N/003-A Residual Current Circuit Breaker (RCBO) with Overload Protection is engineered to enhance electrical safety by automatically disconnecting electrical circuits upon detection of earth leakage or overcurrent events.
Designed for residential and commercial applications, this RCBO features a 10A current rating, 1-pole configuration, and 30 mA trip sensitivity, making it highly effective in preventing electrical shocks and protecting wiring.
The device operates at a rated AC voltage of 240V and includes Type B tripping characteristics for rapid response to short circuits. Its high breaking capacity of 10kA ensures robust fault interruption capability, enhancing system reliability.
Constructed to comply with IEC/EN 61009 and IEC/EN 61439 standards, this breaker meets stringent international safety and performance criteria. Earth leakage protection of Type A classifies it for handling AC and pulsating DC leakages, increasing versatility.
With its compact physical dimensions of 69.5 mm depth and 2 mm width, it integrates seamlessly into electrical distribution boards while maintaining a sleek profile. The breaker prevents electrocution risks by rapidly detecting leakage currents as low as 30 mA.
It safeguards electrical installations from overload and short circuits through its Type B instantaneous trip characteristic. The compact size allows installation in tight spaces within household or commercial switchgear.
Stable operation under common residential and commercial electrical environments makes it a reliable choice for safety. Its high breaking capacity of 10 kA ensures longer device life and protection under severe fault conditions.
Austria is the country of origin, ensuring quality manufacturing standards.
This Eaton RCBO enhances electrical safety for varied industrial, commercial, and residential electrical systems, protecting both equipment and users from electrical faults and hazards.
Explore a wide range of residual current devices and circuit breakers on EnvMart for optimized electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 10A, making it suitable for moderate load circuits.
It features a high breaking capacity of 10kA, ensuring robust fault interruption capability.
The breaker operates at a rated AC voltage of 240V, providing reliable current control.
This unit has Type B tripping characteristics, which offer instantaneous short circuit protection.
It has a trip sensitivity of 30mA, designed to quickly detect leakage currents.
The breaker has a compact design with a depth of 69.5 mm and a width of 2 mm, facilitating easy panel integration.
It complies with IEC/EN 61009 and IEC/EN 61439 standards, ensuring safety and performance.
It is equipped with Type A earth leakage protection, suitable for handling AC and pulsating DC leakages.
This model features a 1-pole design, making it suitable for single-phase applications.
It is engineered for use in residential and commercial applications, enhancing electrical safety.
The country of origin for this model is Austria, ensuring quality manufacturing standards.
This circuit breaker is part of the PXK range, which includes various models with similar specifications.
