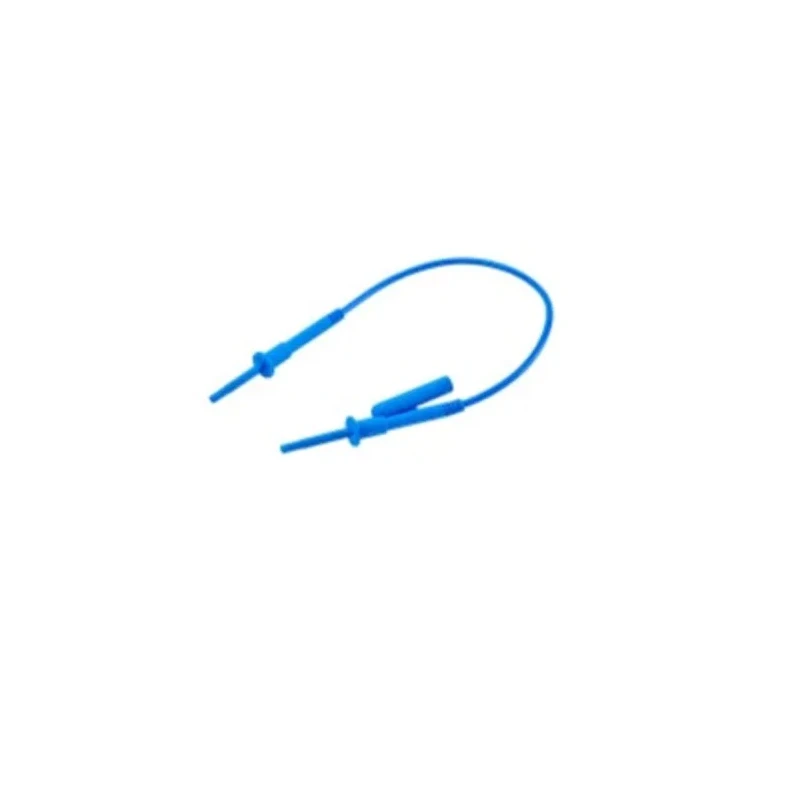

Chauvin Arnoux Insulation Tester HV Test Lead Set Lead Compatible with CA 6550 and CA 6555 P01295526

Chauvin Arnoux P01295526 Insulation Tester HV Test Lead Set Lead is a precision accessory intended for high voltage insulation testing in industrial, laboratory, and electrical maintenance environments. Compatible with Chauvin Arnoux insulation testers CA 6550 and CA 6555, this lead set enhances test accuracy and operator safety while handling insulation resistance measurements.

The leads are rated for 10A current with piggyback jacks that are restricted to a maximum of 15mA to protect sensitive meter circuitry. The black lead's piggyback jack is connected to the internal braid shielding, reducing interference and ensuring measurement stability. The blue lead's piggyback jack is connected directly to the core conductor and comes in lengths of either 0.3 or 0.5 meters, catering to different connection requirements in the field.

Each crocodile clip included in the lead set features a clamping capacity that accommodates cable diameters ranging from 1 mm to 34 mm or 12 mm bar conductors, providing versatile and secure attachment options. The bright blue coloring of one lead allows for easy identification and polarity distinction during testing.

Designed to operate safely within an ambient temperature range of -10°C to +50°C, these leads are constructed with double insulation materials to protect the user from electrical hazards. The equipment's CE standard compliance assures quality and safety in line with global electrical accessory requirements.

This lead set is primarily used in electrical test and measurement applications within industrial manufacturing facilities, laboratories, construction sites, and electrical maintenance workshops. It ensures dependable connection between insulation testers and the equipment under test, contributing to accurate diagnostics and compliance with maintenance standards.

The lead set is rated for 10A current with piggyback jacks limited to 15mA. Black lead piggyback jack is connected to internal braid shielding. Blue lead features piggyback jack connected to the lead core, available in 0.3m or 0.5m length.

Crocodile clips accommodate diameters from 1mm to 34mm or 12mm bars. Operating temperature range is -10°C to +50°C. Leads are protected by double insulation. Colour of the lead is blue for identification. For reliable insulation testing accessories, explore more options in the Industrial Machines category at EnvMart.
