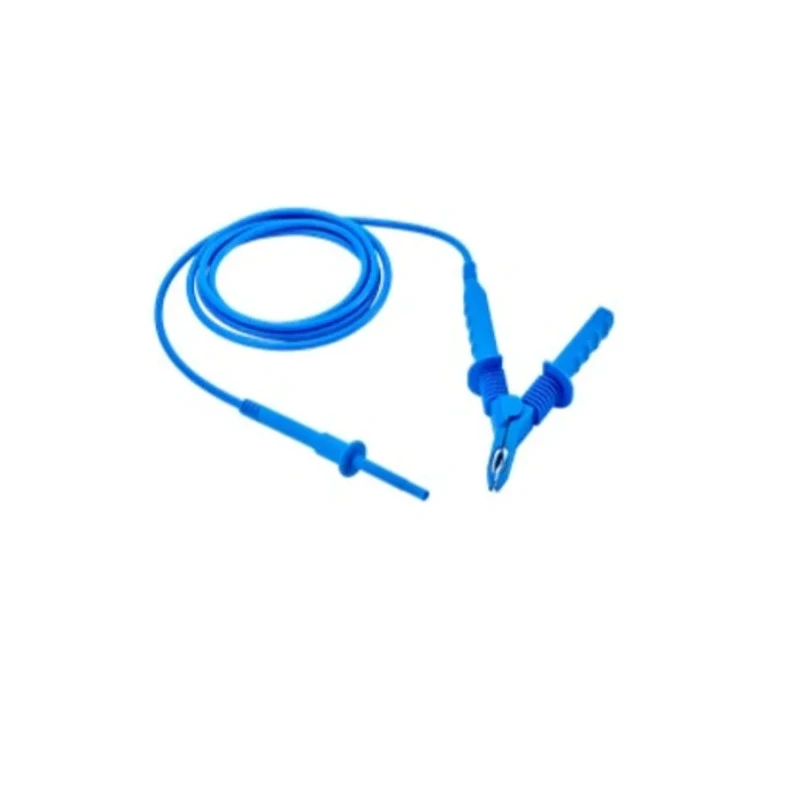

Chauvin Arnoux Insulation Tester HV Test Lead Set for CA 6555 CA 6550 P01295522

Chauvin Arnoux P01295522 Insulation Tester HV Test Lead Set is a high-quality accessory designed specifically for insulation testers such as CA 6555 and CA 6550 models. This lead set facilitates accurate and safe insulation resistance testing in electrical and industrial measurement environments.

The lead set includes crocodile clip leads which are rated for 10A current, suitable for high voltage insulation testing scenarios. However, the piggyback jacks integrated into the leads are limited to 15mA current, enhancing safety protocols during operation. The black lead's piggyback jack is electrically connected to the internal braid or shielding to minimize interference, while the blue lead is connected directly to the core conductor within the lead, ensuring precise signal transmission.

The crocodile clips feature a clamping capacity accommodating wires or bars with diameters ranging from 1mm to 34mm, or a 12mm bar, providing flexibility to clamp various conductor sizes encountered in industrial and laboratory electrical testing.

The lead color is blue, helping identify the connection easily during testing procedures. It supports an operational temperature range between -10°C and +50°C, making it suitable for a broad range of indoor and controlled environment applications across industrial, laboratory, HVAC, manufacturing, and electrical maintenance sectors.

These leads are manufactured with double insulation protection, ensuring compliance with strict safety standards and protecting users from electrical hazards. The product adheres to CE quality and safety standards and is made in China.

Accessory type is lead, designed for insulation testers CA 6555 and CA 6550. Rated at 10A with piggyback jacks limited to 15mA current for safety. Black lead piggyback jack connected to internal shielding braid, blue lead to core conductor.

Crocodile clip capacity supports 1-34mm diameter or 12mm bar clamp. Lead color blue; operational temperature from -10°C to +50°C. Protected by double insulation for user safety. Compliant with CE standards and made in China.

This insulation tester HV test lead set is an essential accessory for precision measurement and testing instrumentation professionals. It is ideal for electrical testing, maintenance, quality assurance, and research laboratories requiring reliable insulation resistance measurements.
